B31-B405 & B406-B431 & AB1-AB55
B31-B405 & B406-B431 & AB1-AB55
Bulkhead Wiring Harness (In Compartment)

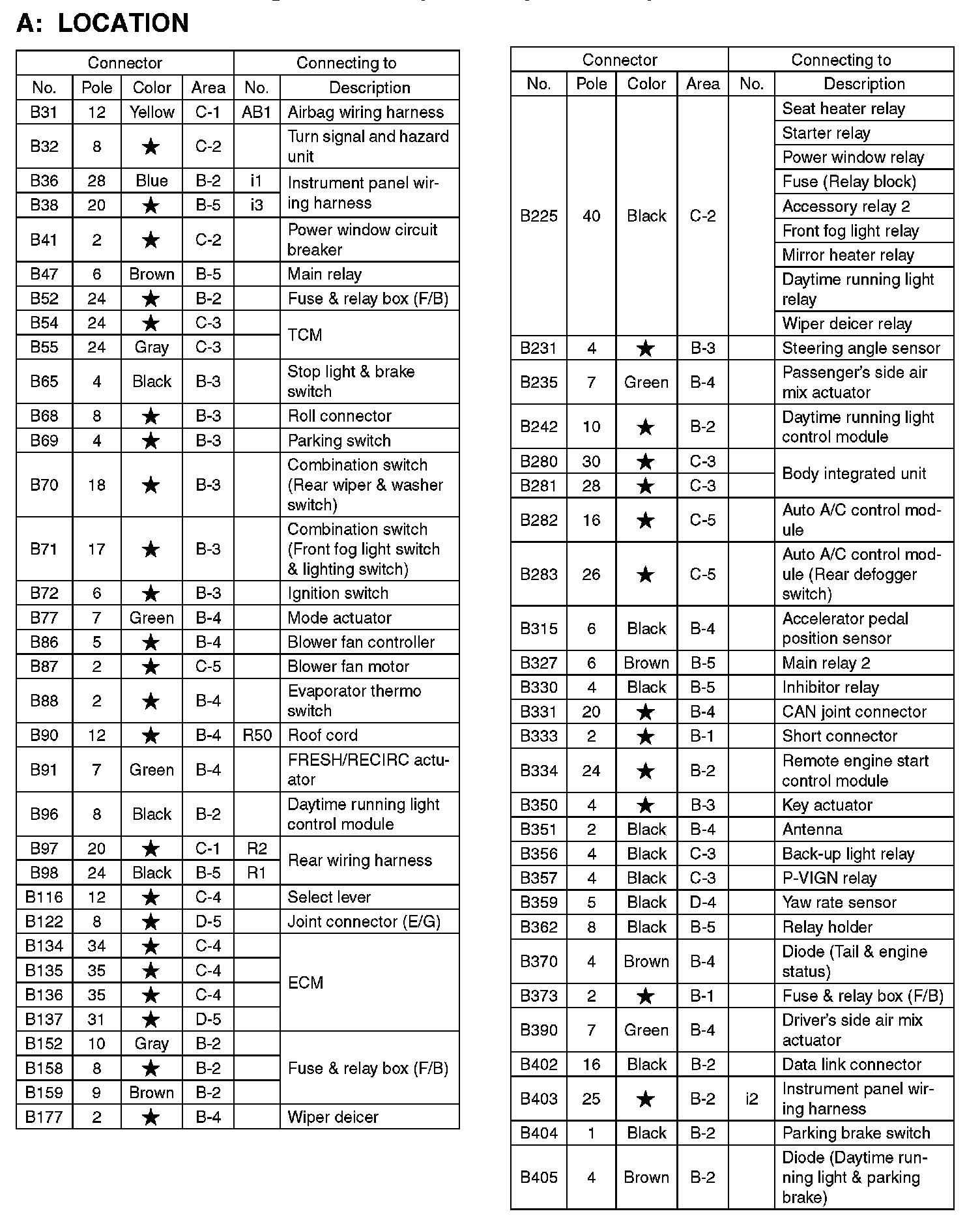

B31-B405:

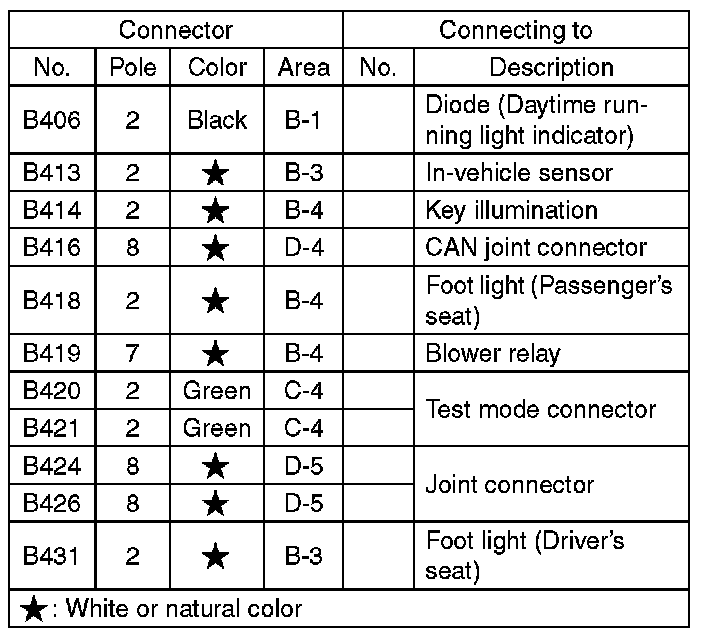

B406-B431:

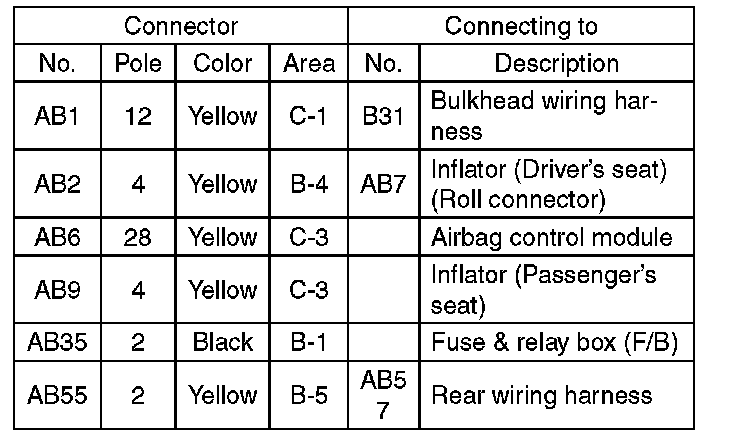

AB1-AB55:

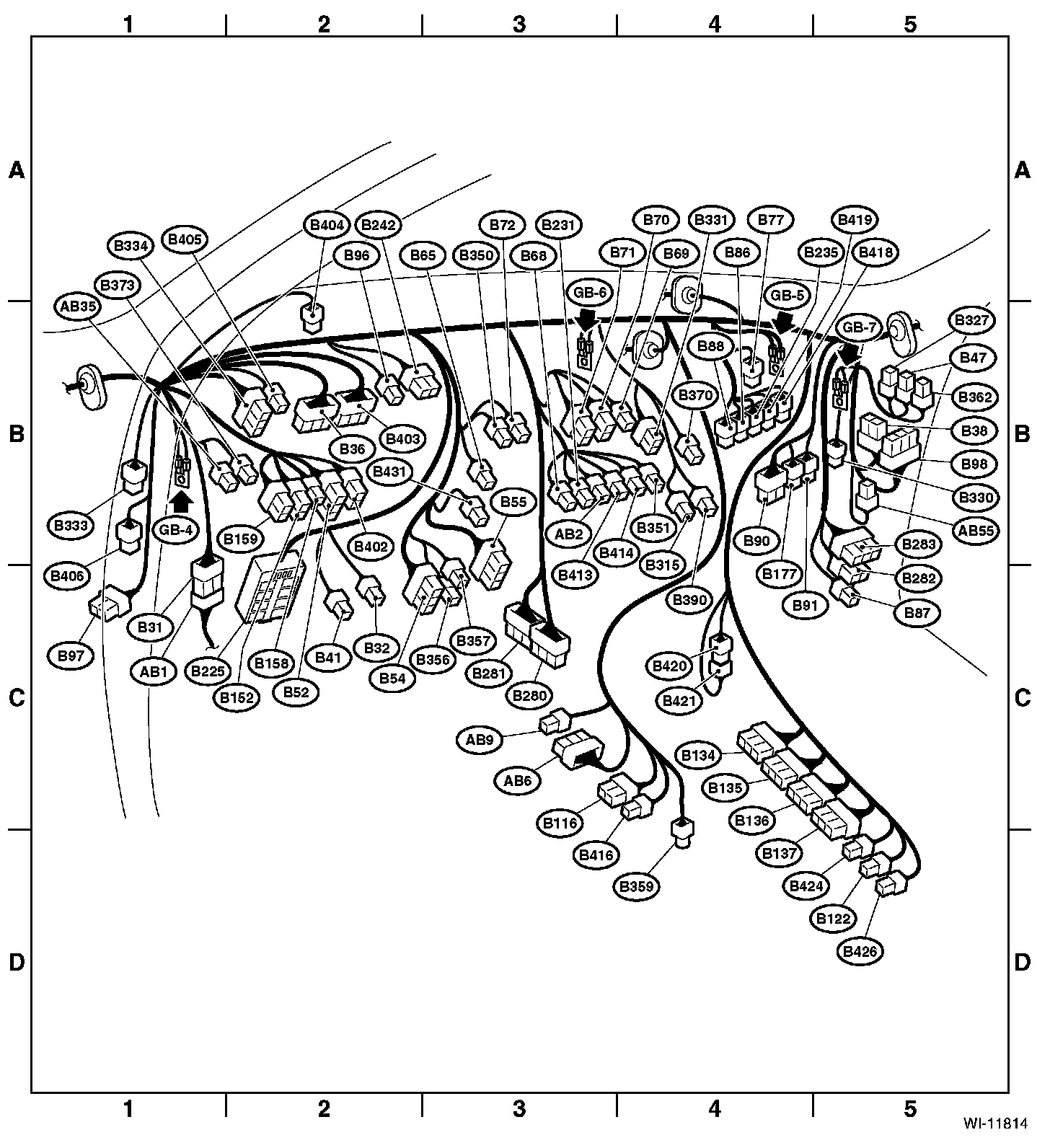

Area View:
