I1-I131 & I132-I145
I1-I131 & I132-I145
Instrument Panel Wiring Harness

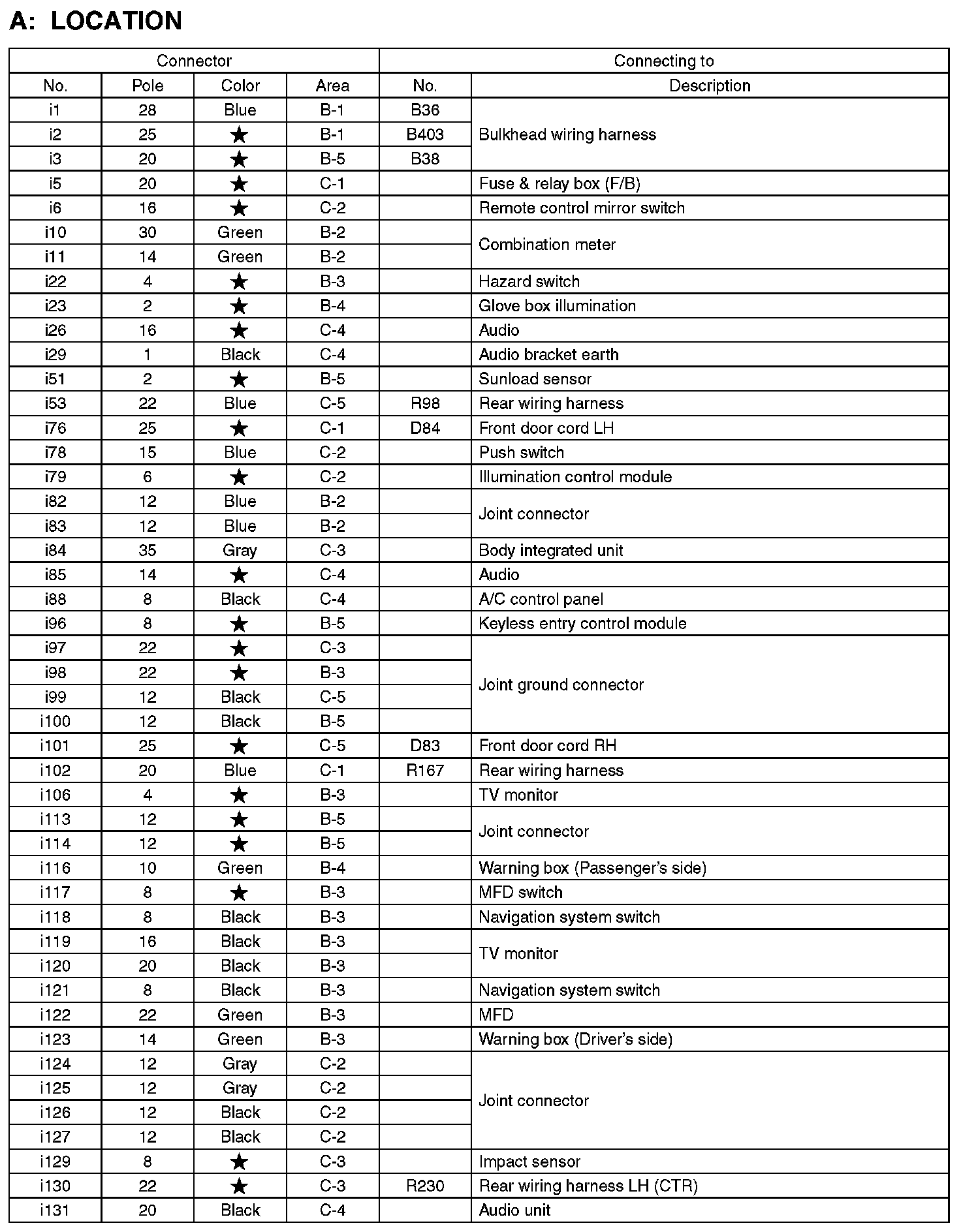

I1-I131:

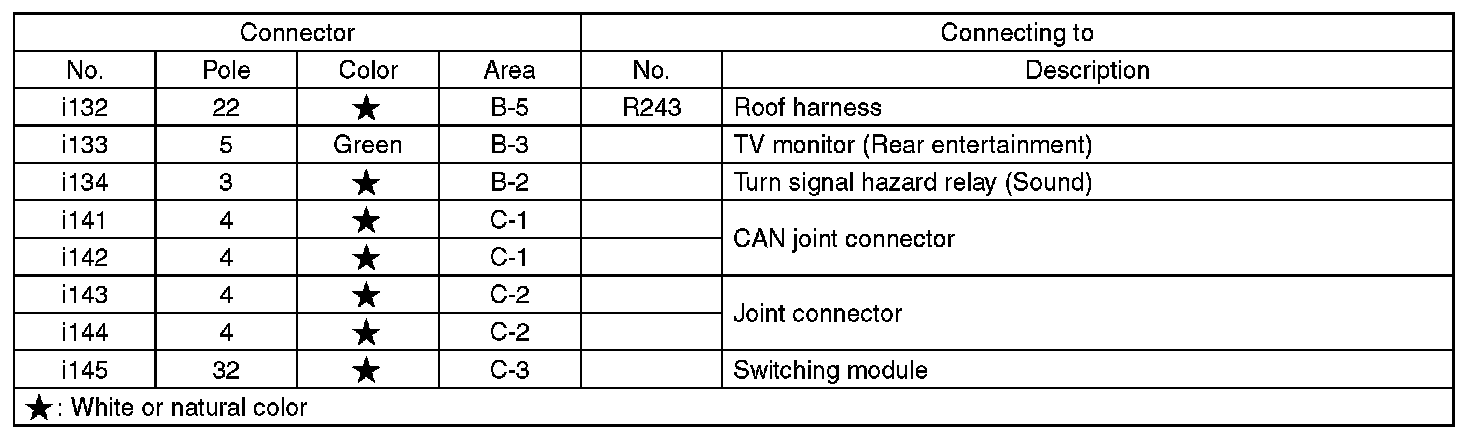

I132-I145:

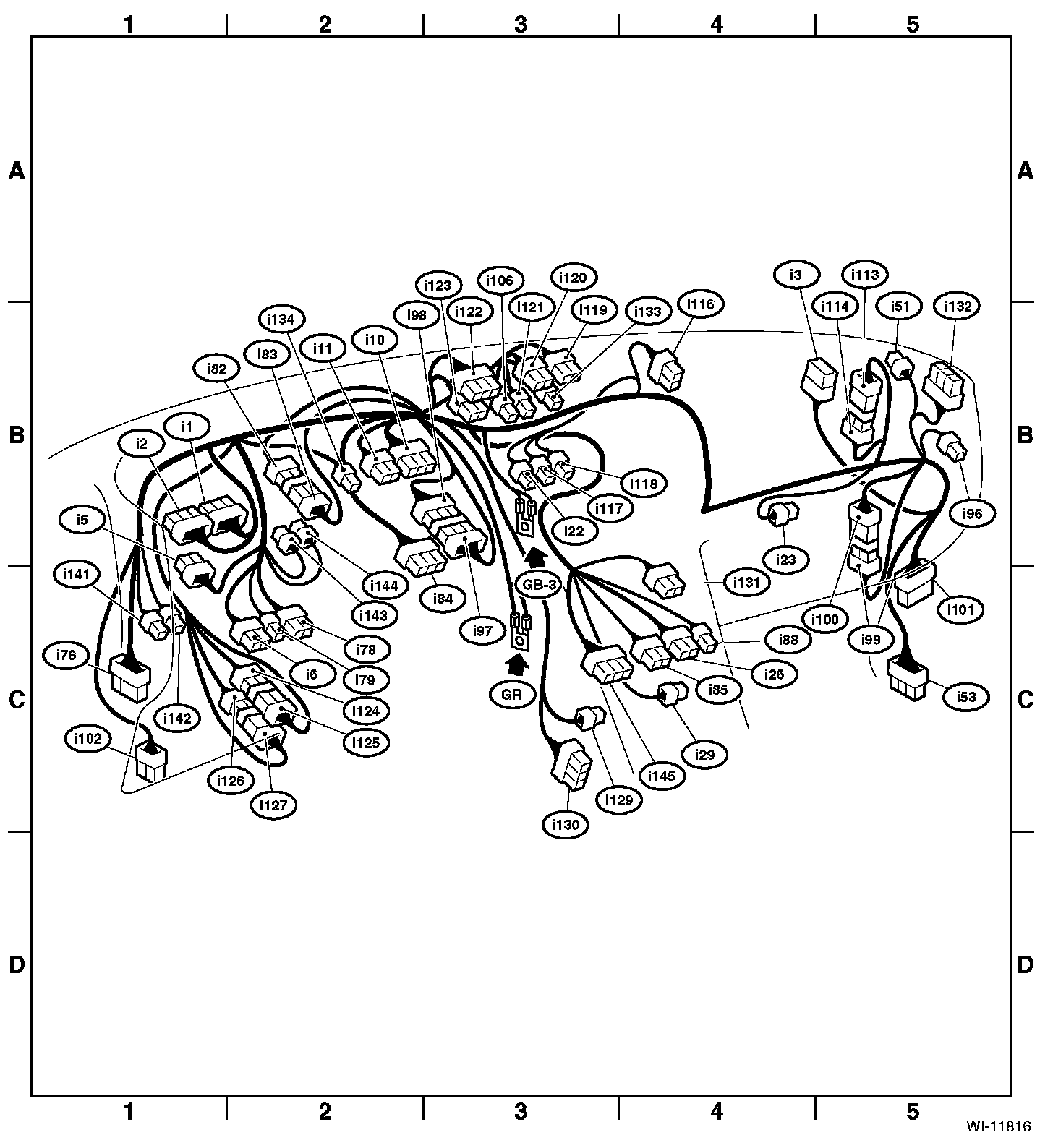

Area View:
