Home >> Subaru >> 2007 >> B9 Tribeca F6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Window Glass

Window Glass

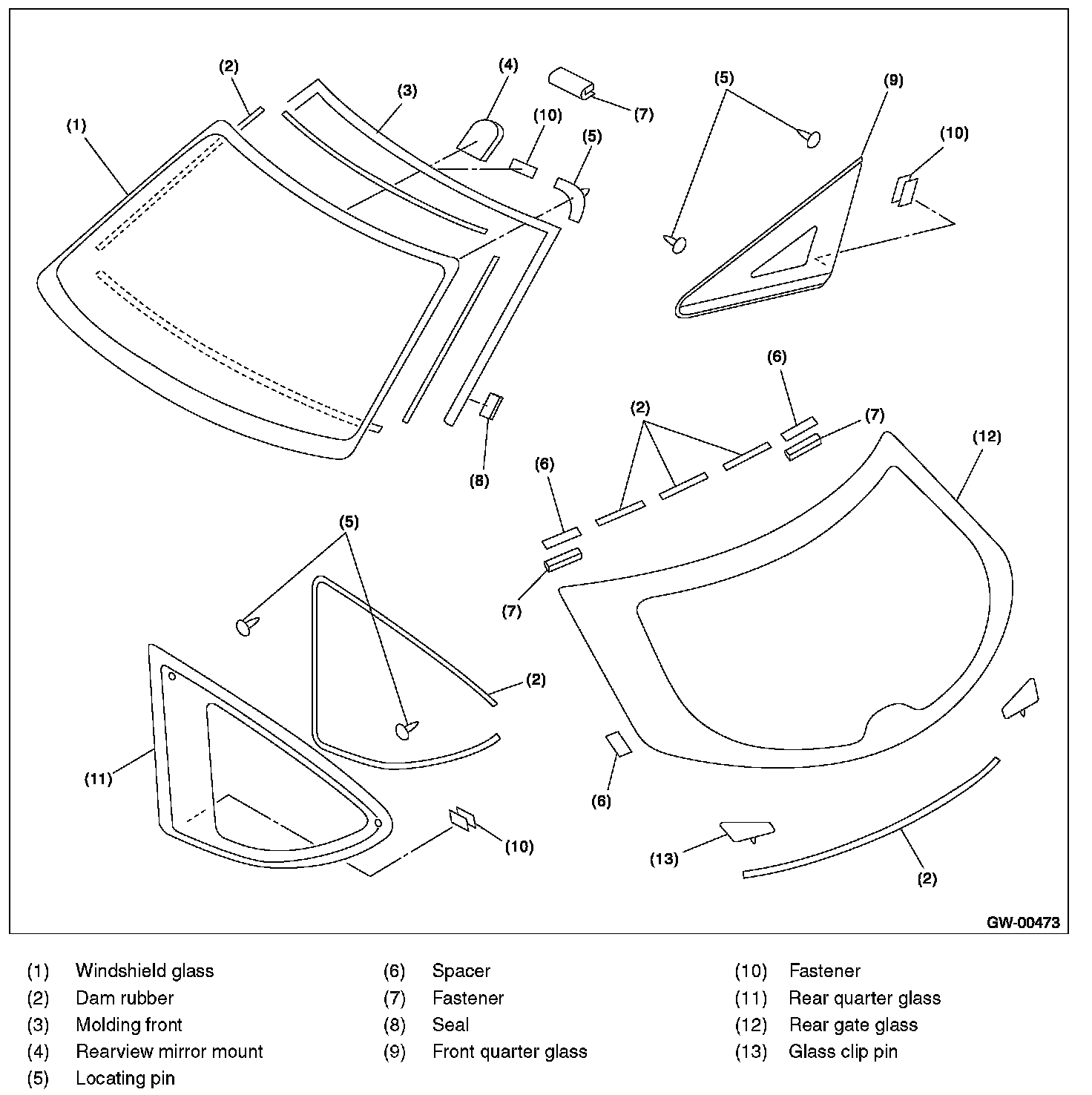

Fixed Glass:



Front Door Glass:

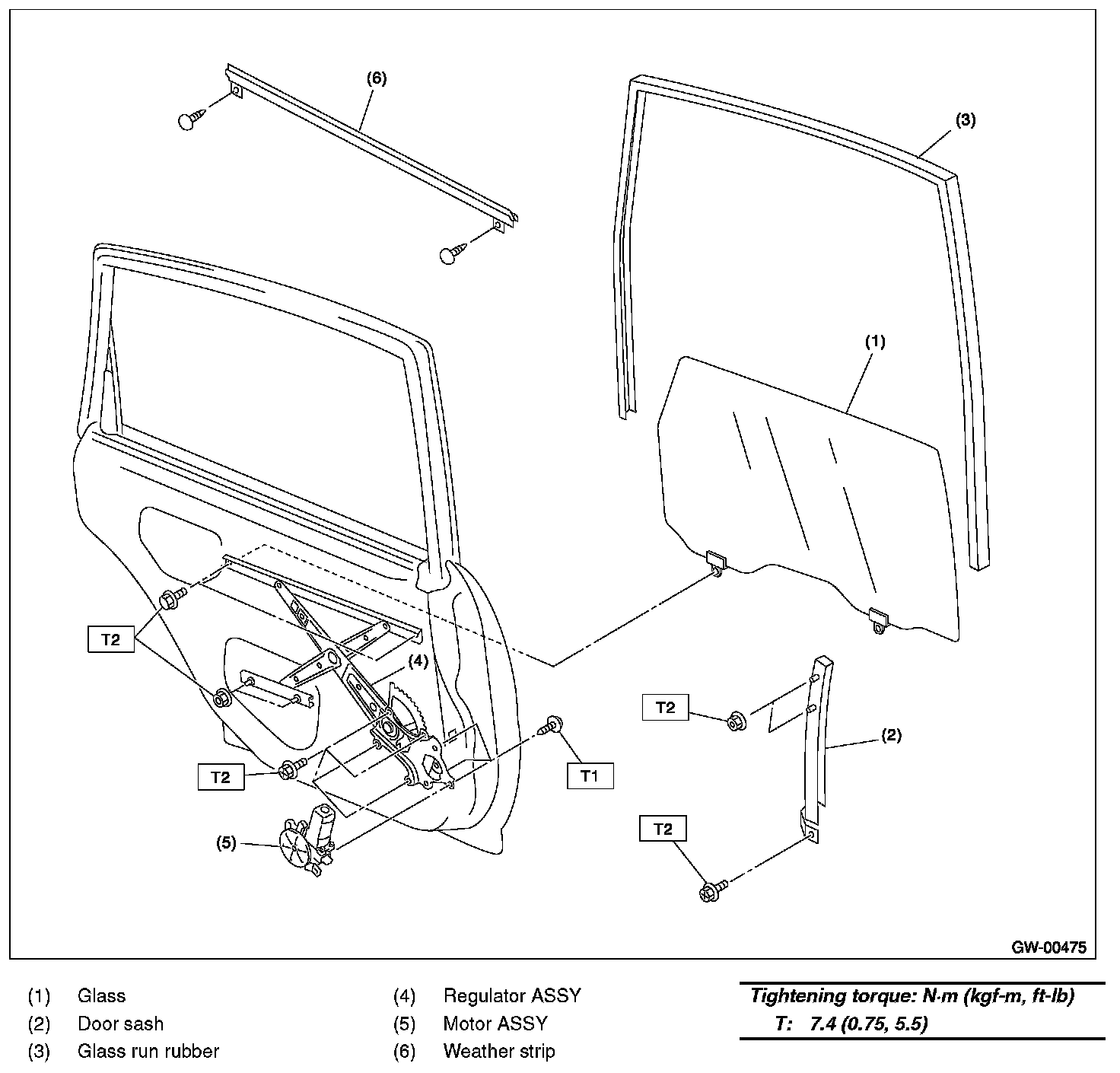

Rear Door Glass:
