Cooling System: Service and Repair
Engine CoolantREPLACEMENT
DRAINING OF ENGINE COOLANT
1. Lift-up the vehicle.
2. Remove the under cover.

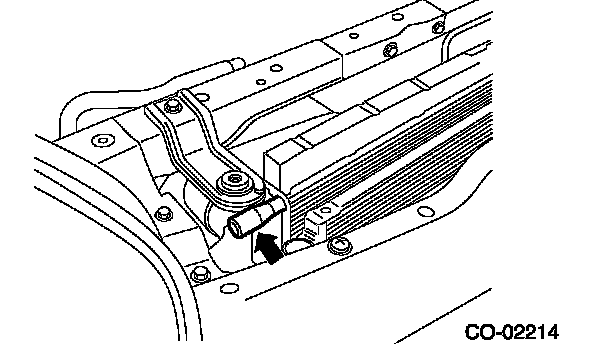

3. Remove the drain plug to drain engine coolant into container.
NOTE: Remove the radiator cap so that engine coolant will drain faster.
4. Install the drain plug.
FILLING OF ENGINE COOLANT
1. Pour cooling system conditioner through the filler neck.
Cooling system protective agent: COOLING SYSTEM CONDITIONER (Part No. SOA345001)
2. Pour engine coolant into the radiator up to the filler neck position.
Coolant level: Refer to SPECIFICATION for the engine coolant capacity.
NOTE: The SUBARU Genuine Coolant containing antifreeze and anti-rust agents is especially made for SUBARU engine, which has an aluminum crankcase. Always use SUBARU Genuine Coolant, since other coolant may cause corrosion.
3. Open the air bleeding valve on the heater hose side.
4. If the engine coolant level drops, add engine coolant into radiator up to the filler neck position.
5. When engine coolant has come out from the air bleeding valve on the heater hose side, close the valve.
6. Open the air bleeding valve on the radiator side.
7. If the engine coolant level drops, add engine coolant into radiator up to the filler neck position.
8. When engine coolant has come out from the air bleeding valve on the radiator side, close the valve.
9. Fill engine coolant into the reservoir tank up to FULL level.
10. Close the radiator cap and start the engine. Race 5 to 6 times at less than 3,000 rpm, then stop the engine. (Complete this operation within 40 seconds.)
11. Wait for one minute after the engine stops, open the radiator cap. If the engine coolant level drops, add engine coolant into radiator up to the filler neck position.
12. Perform the procedures 10) and 11) again.
13. Attach the radiator cap and reservoir tank cap properly.
14. Start the engine and operate the heater at maximum hot position and the blower speed setting to LO.
15. Run the engine at 2,000 rpm or less until radiator fan starts and stops.
NOTE:
^ Be careful with the engine coolant temperature gauge to prevent overheating.
^ If the radiator hose becomes harden with the pressure of engine coolant, air bleeding operation seems to be almost completed.
16. Stop the engine and wait until the engine coolant temperature lowers to 30°C (86°F).
17. Open the radiator cap. If the engine coolant level drops, add engine coolant into radiator up to the filler neck position and reservoir tank to the FULL level.
18. Attach the radiator cap and reservoir tank cap properly.
19. Set the heater setting to maximum hot position and the blower speed setting to LO and start the engine. Perform racing at less than 3,000 rpm. If the flowing sound is heard at this time, perform the procedures from 15) again.
