Heating and Air Conditioning: Tools and Equipment

PREPARATION TOOL






CAUTION: When working on vehicles with a HFC- 134a system, only use HFC- 134a specified tools and parts. Do not mix CFC- 12 tools and parts. If HFC- 134a and CFC- 12 refrigerant or compressor oil is mixed, it will result in poor lubrication and the compressor itself may be damaged. In order to prevent the mixture of HFC- 134a and CFC- 12 parts and liquid, the tool and screw type and the type of service valves used are different. The gas leak detectors for the HFC- 134a and CFC- 12 systems must also not be interchanged.

Special Tool:

1. SPECIAL TOOL

NOTE: Read the instruction manual for the connector remover before using.

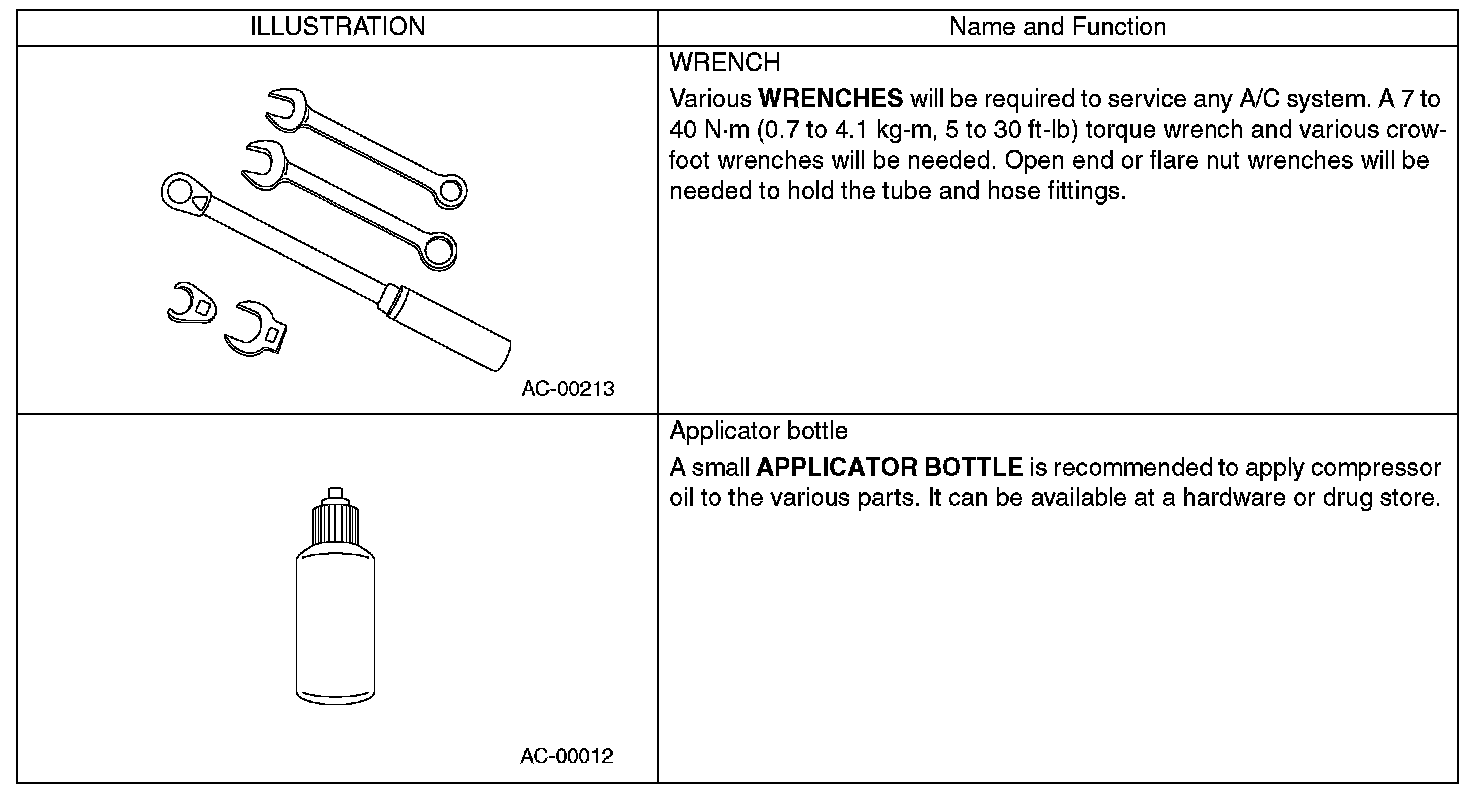

General Tool (Part 1):

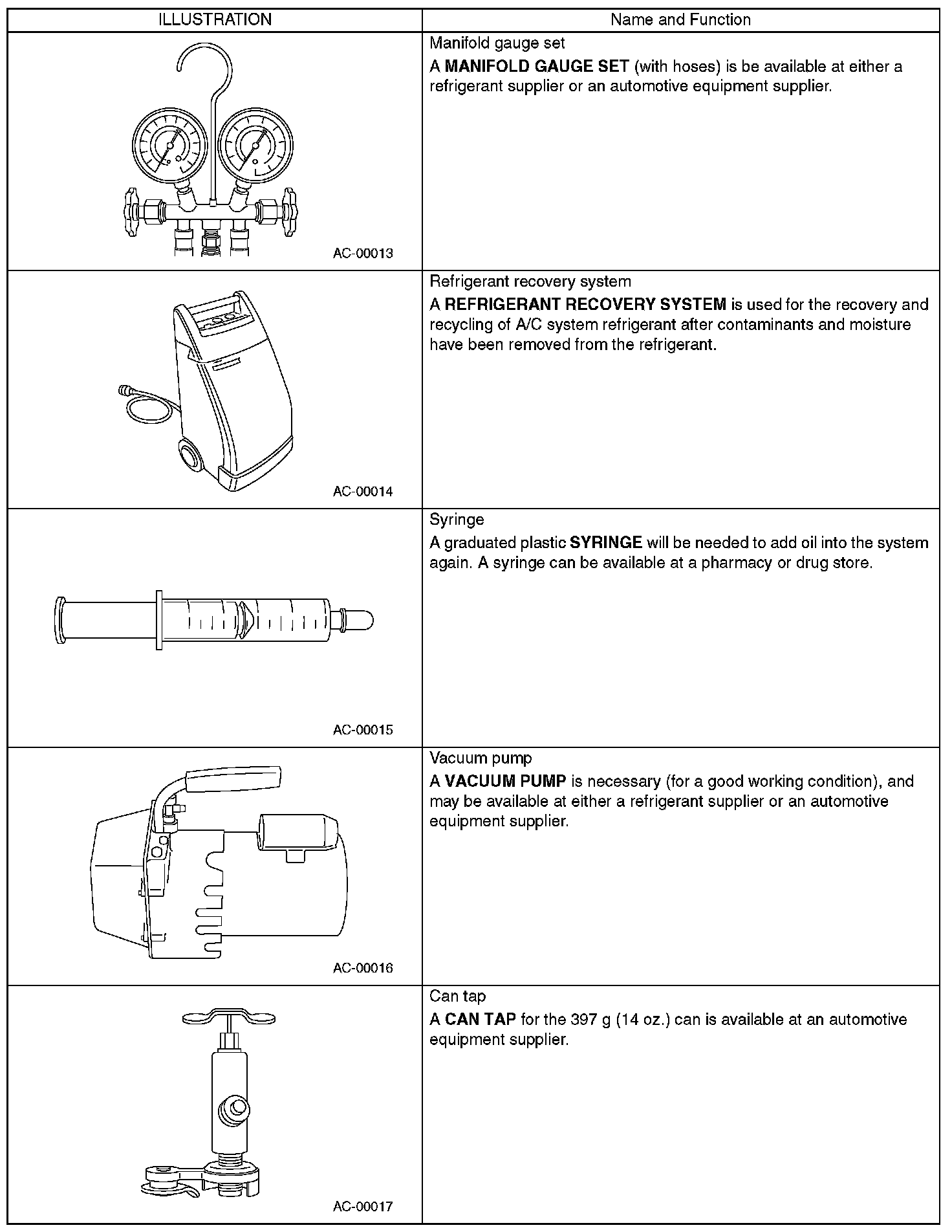

General Tool (Part 2):

General Tool (Part 3):

2. GENERAL TOOL
