Headlamp: Service and Repair

HEADLIGHT ASSEMBLY

REMOVAL
1. Disconnect the ground cable from the battery.

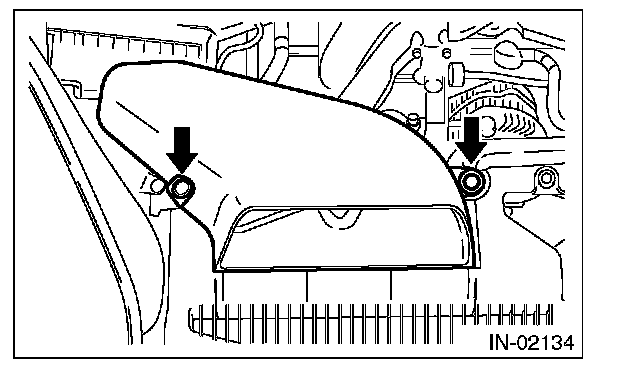

2. Remove the air intake duct.

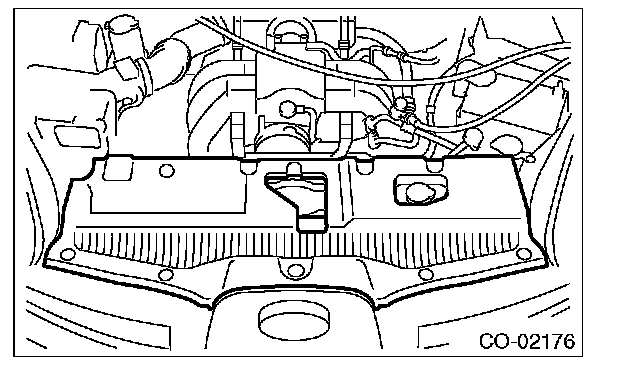

3. Remove the engine front cover.
4. Disengage the three clips, and then turn over the mud guard.

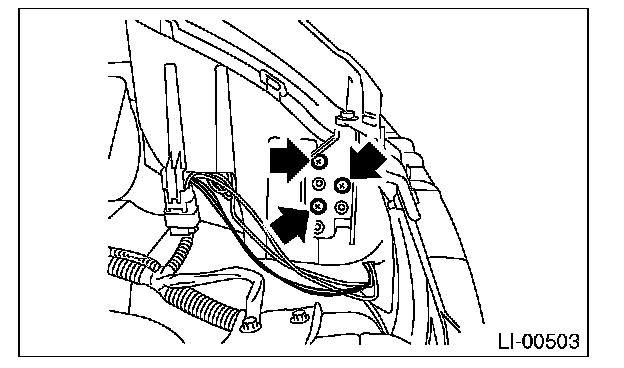

5. Remove the three bolts securing the headlight assembly from the lower side of vehicle.

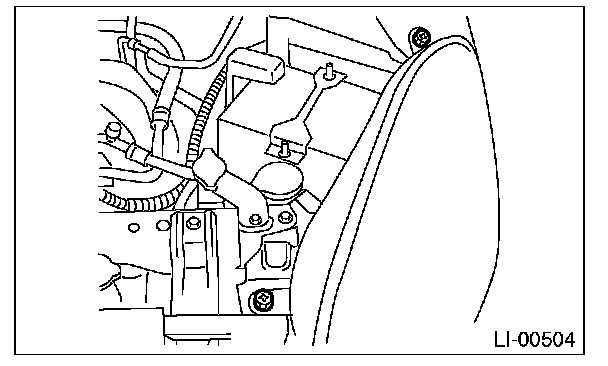

6. Remove the two bolts and then remove the headlight assembly.
7. Disconnect the connector and then detach the rear headlight assembly.

INSTALLATION
Install in the reverse order of removal.
