Map Light: Service and Repair

SPOT MAP LIGHT

REMOVAL
1. Disconnect the ground cable from the battery.

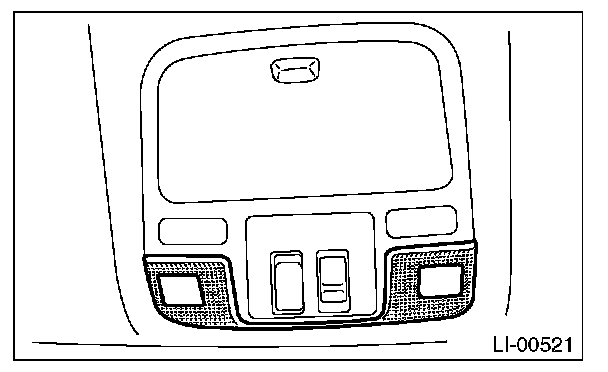

2. Remove the lens.




- Model with sunroof




- Model with standard roof

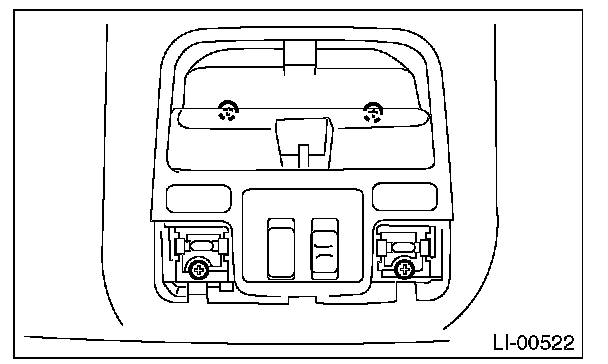

3. Remove the four bolts used for mounting the spot map light.




- Model with sunroof




- Model with standard roof

4. Disconnect the harness connectors and remove the spot map light.

INSTALLATION
Install in the reverse order of removal.
