Fuse: Locations

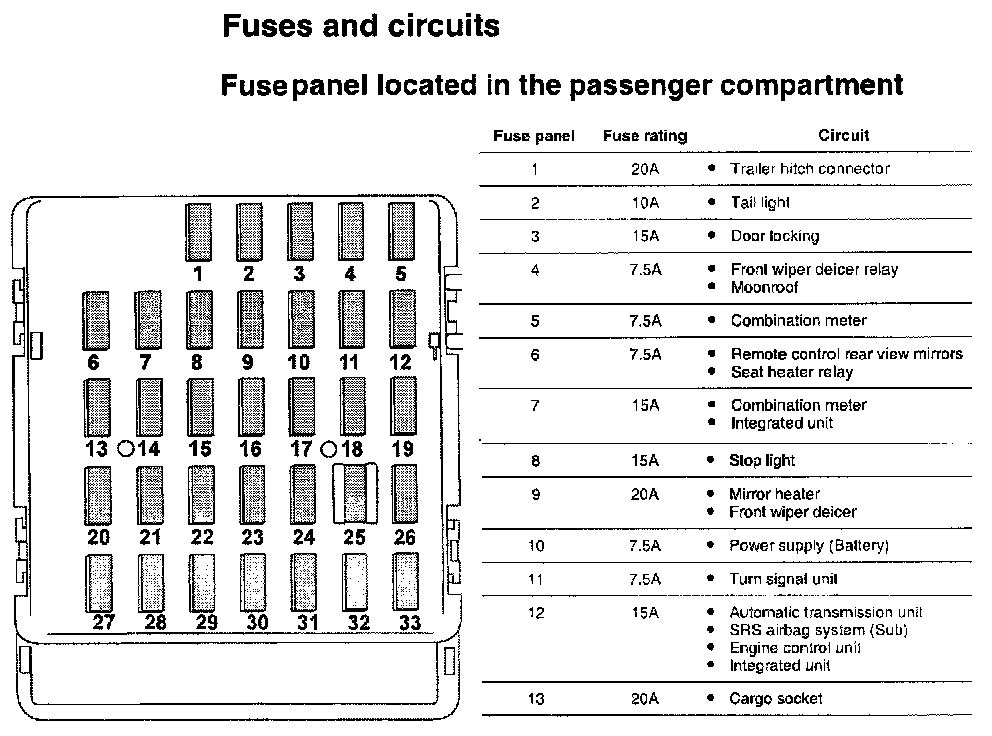

Fuse Panel Located In The Passenger Compartment:

Fuse Circuit Descriptions:

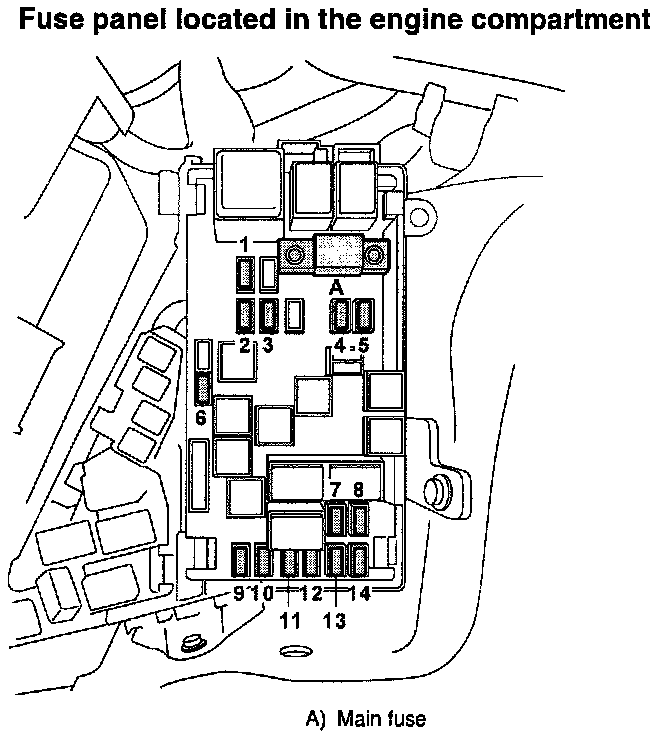

Fuse Panel Located In Engine Compartment:

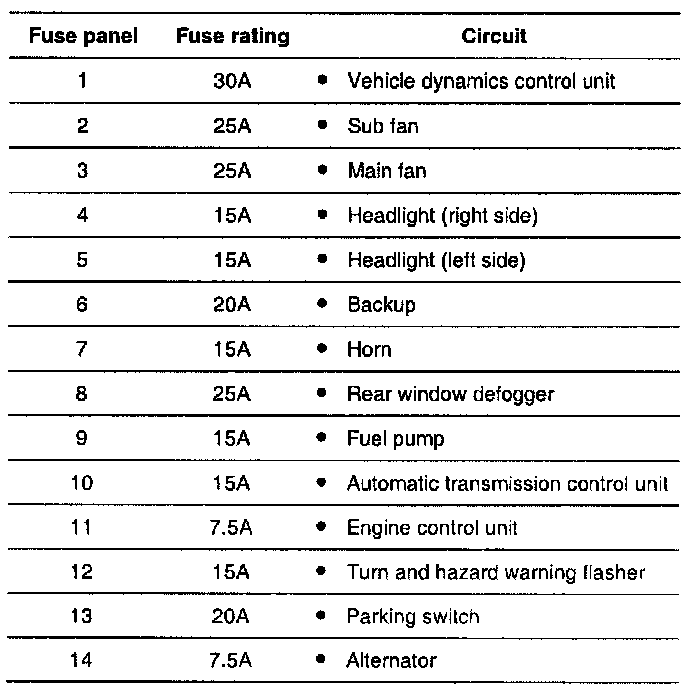

Engine Fuse Box Circuit Description:

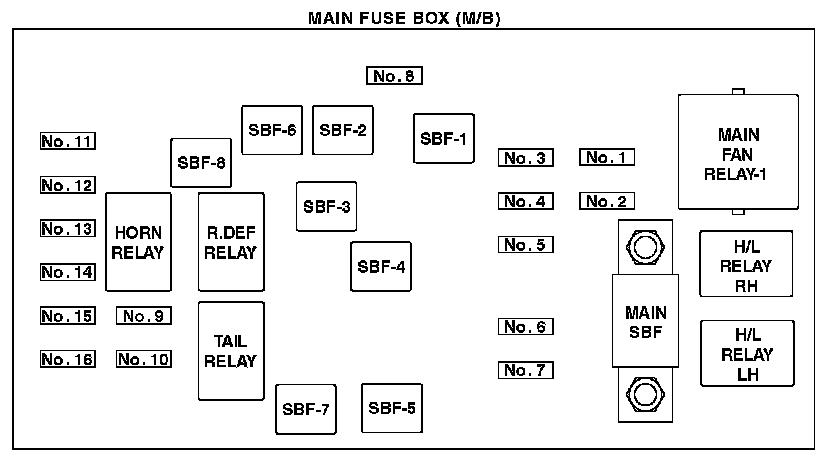

Main Fuse Box (MIB):

Fuse & Relay Box (FIB):
