Restraints and Safety Systems: Description and Operation
General DescriptionCOMPONENT

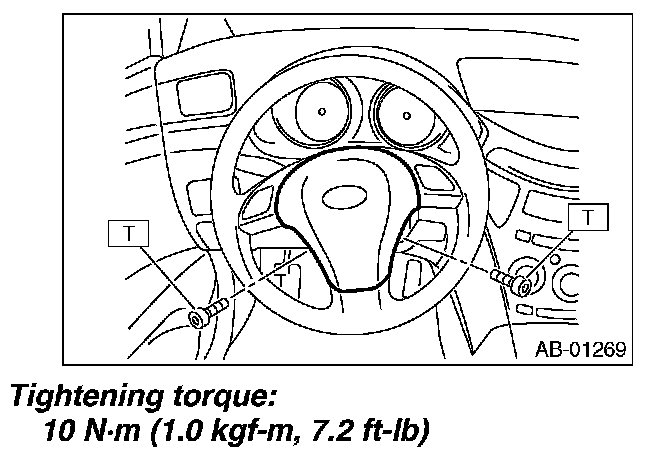

Driver's Airbag Module:
1. DRIVER'S AIRBAG MODULE

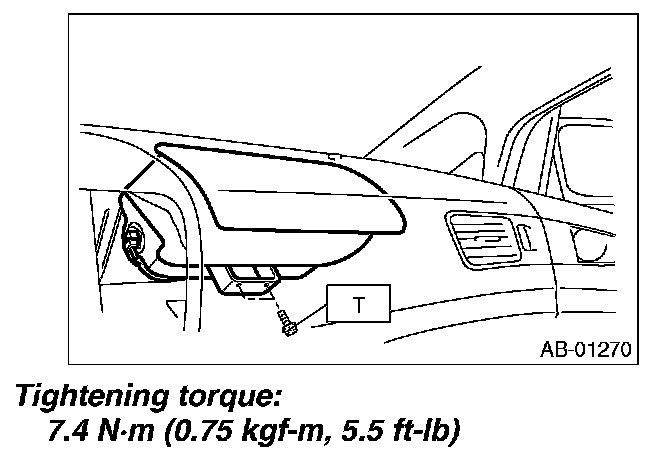

Passenger's Airbag Module:
2. PASSENGER'S AIRBAG MODULE

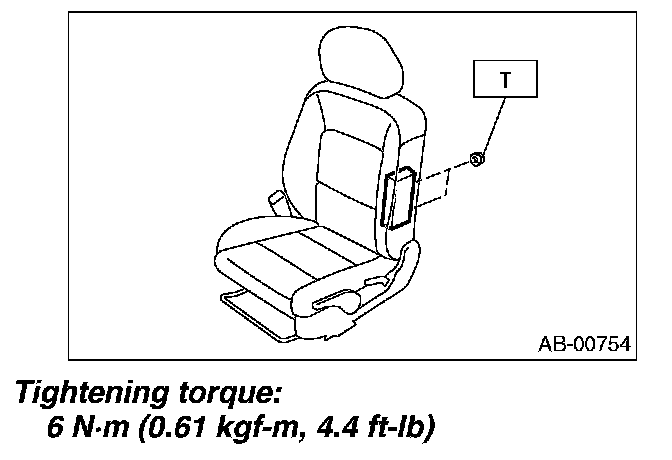

Side Airbag Module:
3. SIDE AIRBAG MODULE

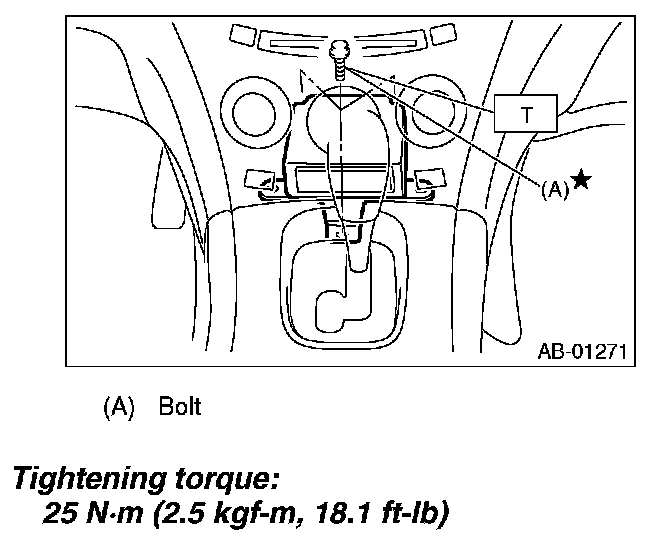

Airbag Control Module:
4. AIRBAG CONTROL MODULE
CAUTION: Do not reuse mounting bolts and nuts.

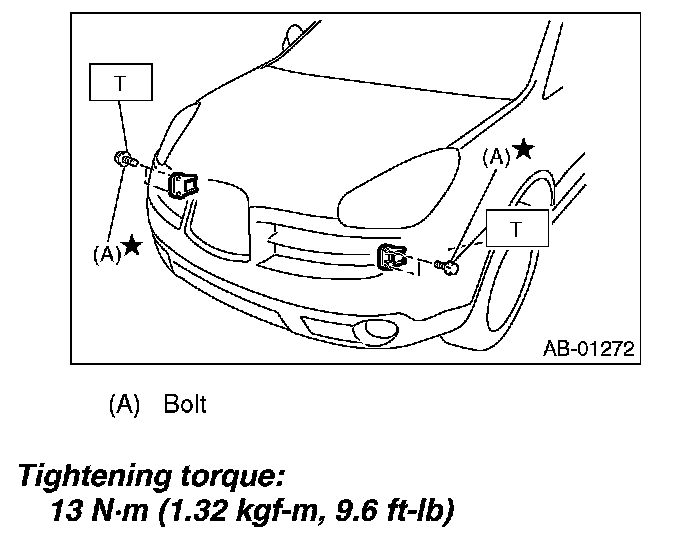

Front Sub Sensor:
5. FRONT SUB SENSOR
CAUTION: Do not reuse mounting bolts and nuts.

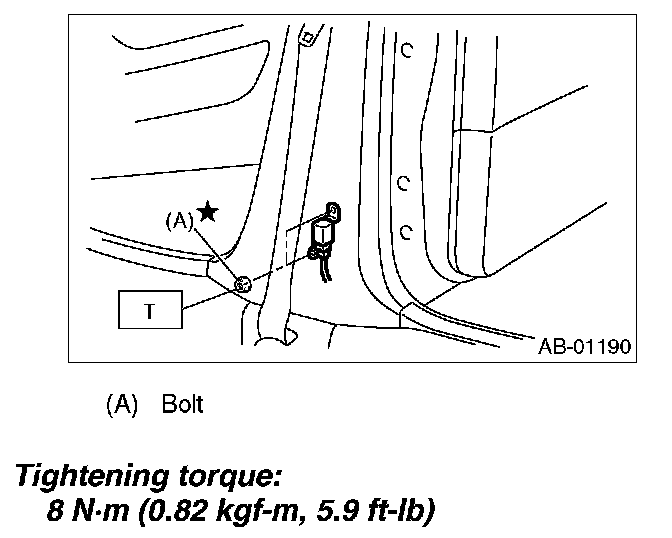

Side Airbag Sensor:
6. SIDE AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
Curtain Airbag Sensor:
7. CURTAIN AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
Steering Roll Connector:
8. STEERING ROLL CONNECTOR
Airbag Harness:
9. AIRBAG HARNESS
Curtain Airbag Module:
10. CURTAIN AIRBAG MODULE
