Restraints and Safety Systems: Tools and Equipment

PREPARATION TOOL

CAUTION: To measure the voltage and resistance of airbag system component, be sure to use the specified test harness.

Special Tool:

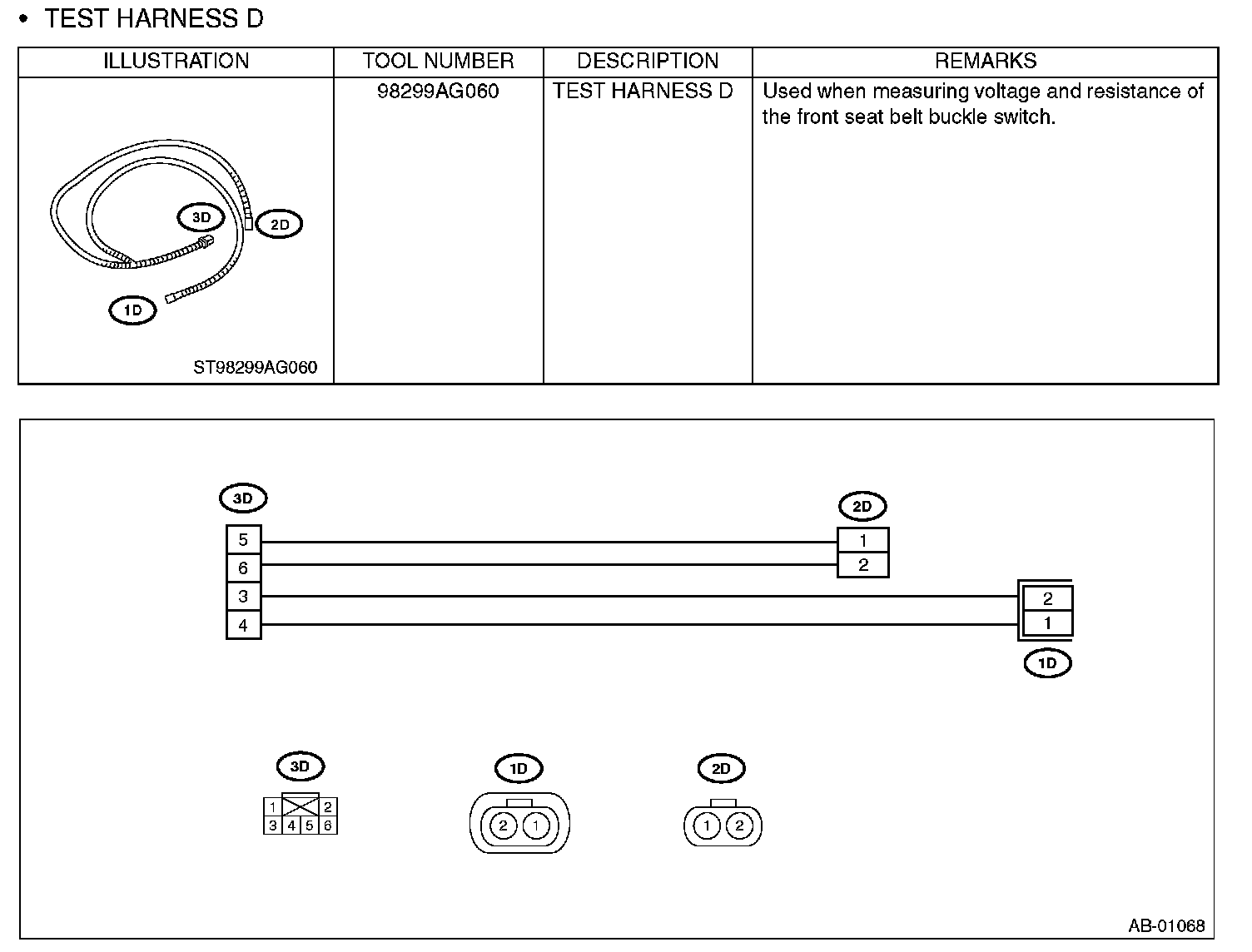

Test Harness D:




Test Harness F:

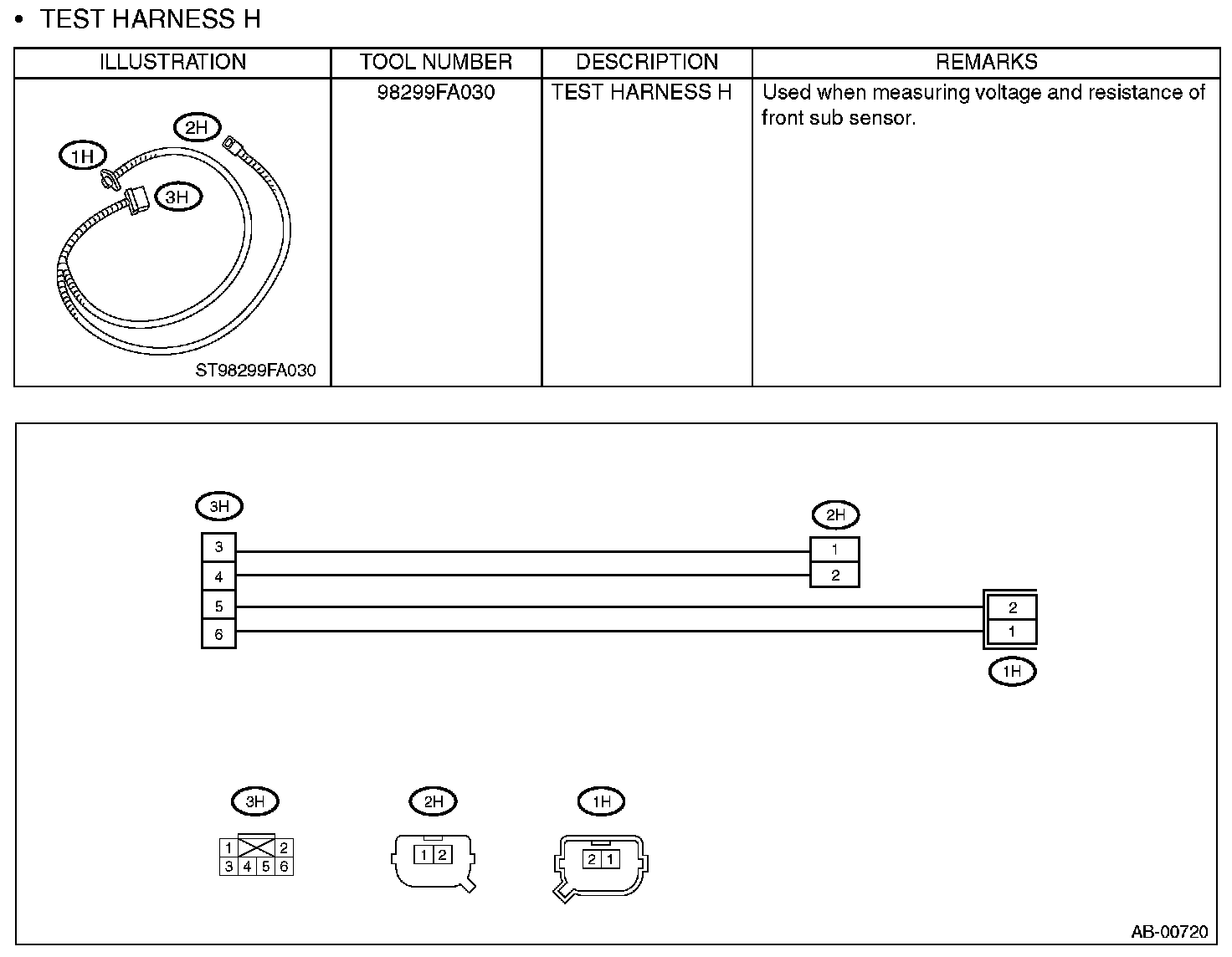

Test Harness H:

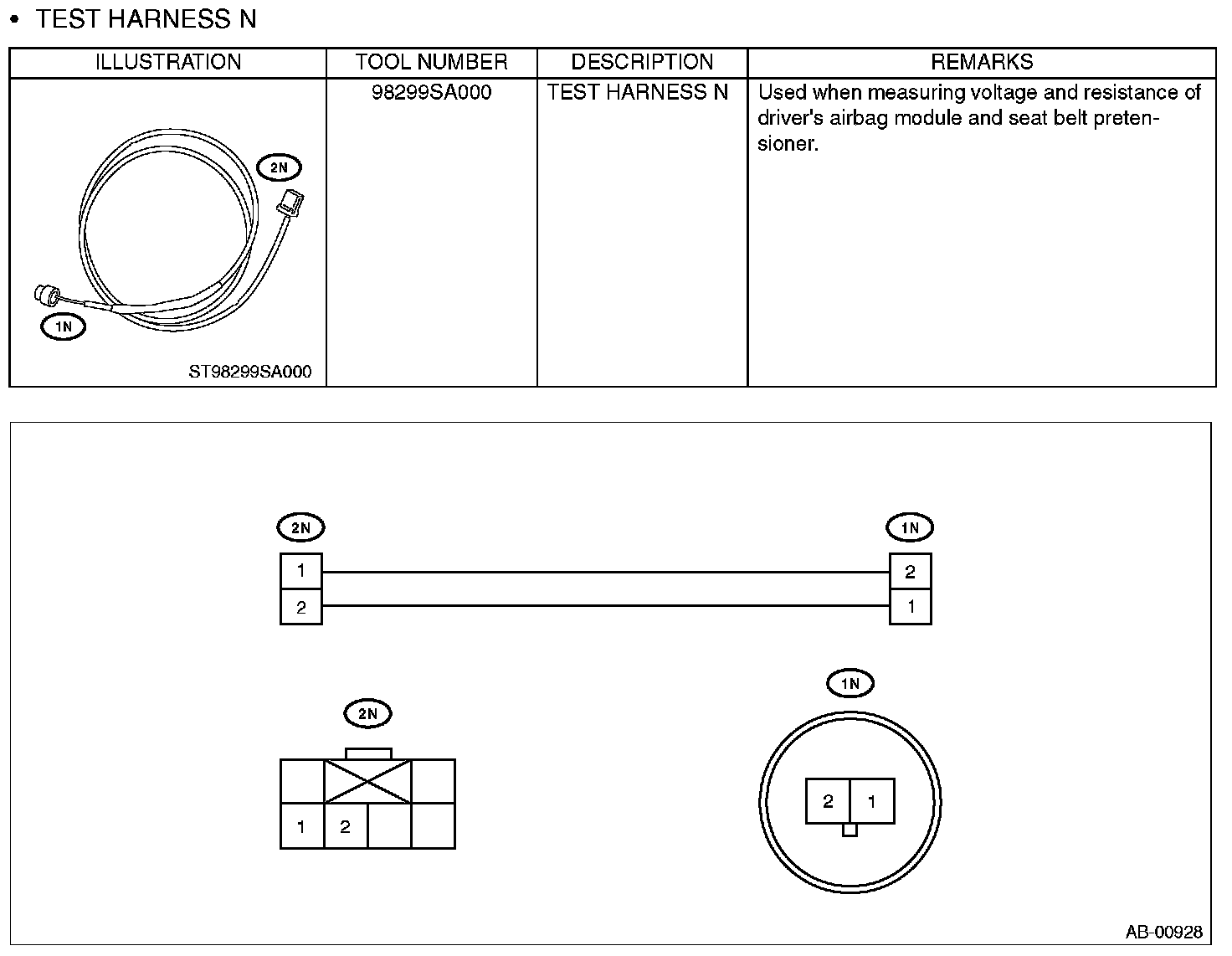

Test Harness N:




Test Harness P:




Test Harness Q:

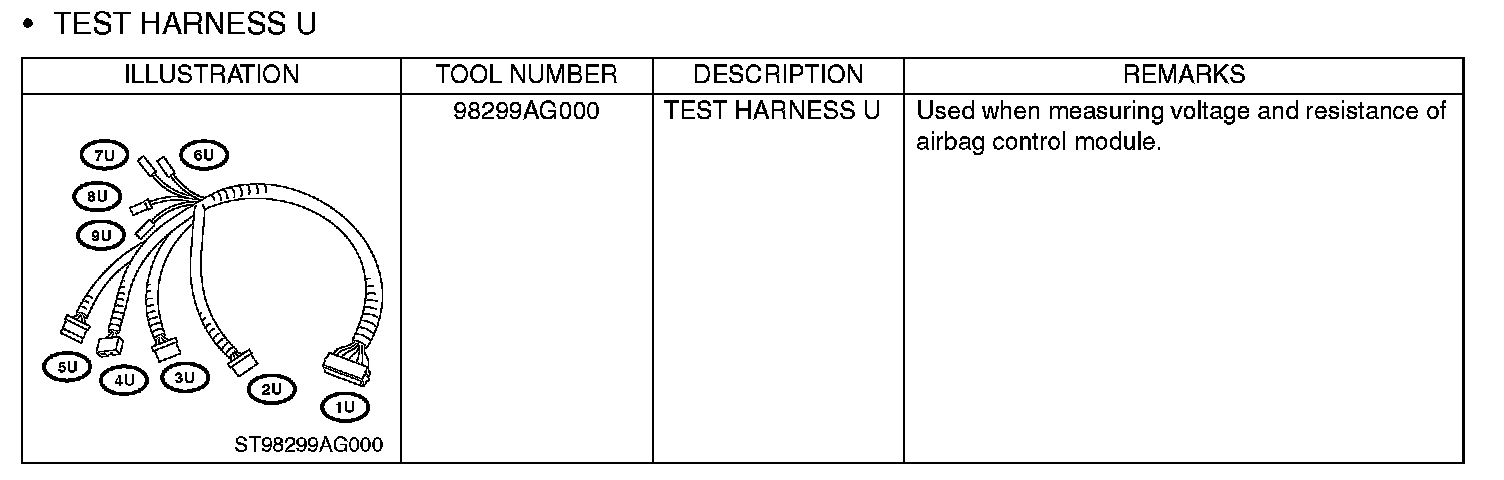

Test Harness U:

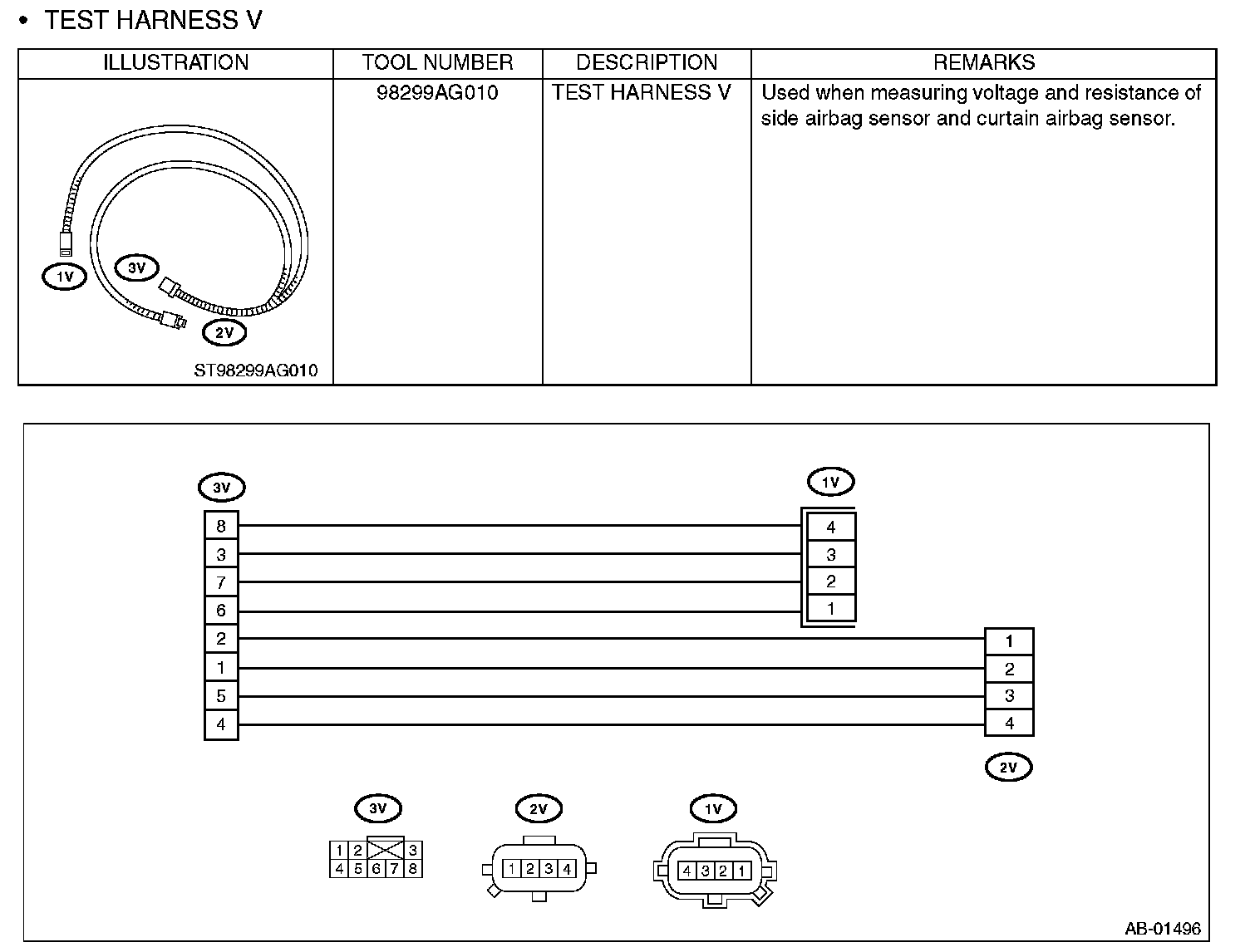

Test Harness V:




Test Harness Y:




Test Harness AB:

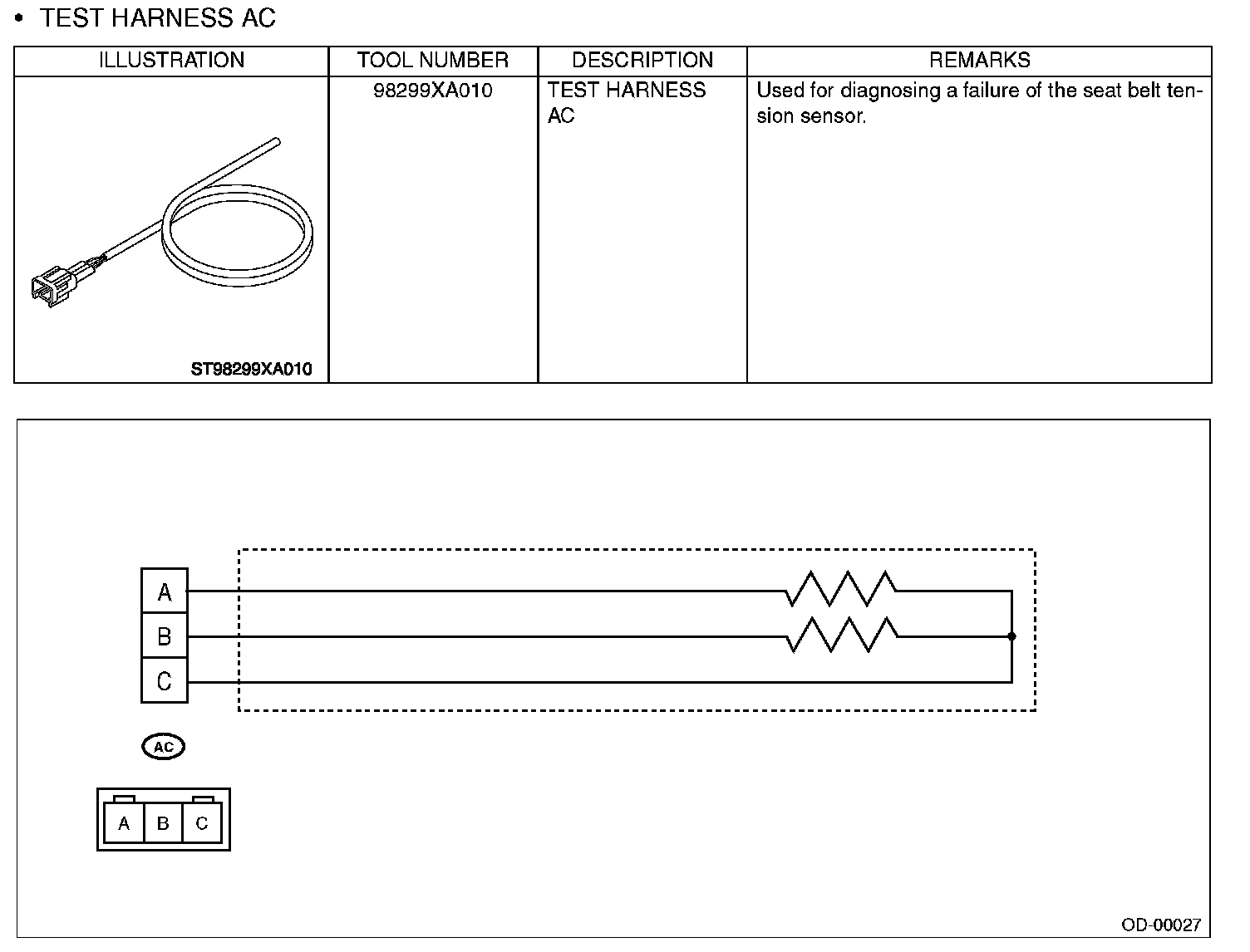

Test Harness AC:

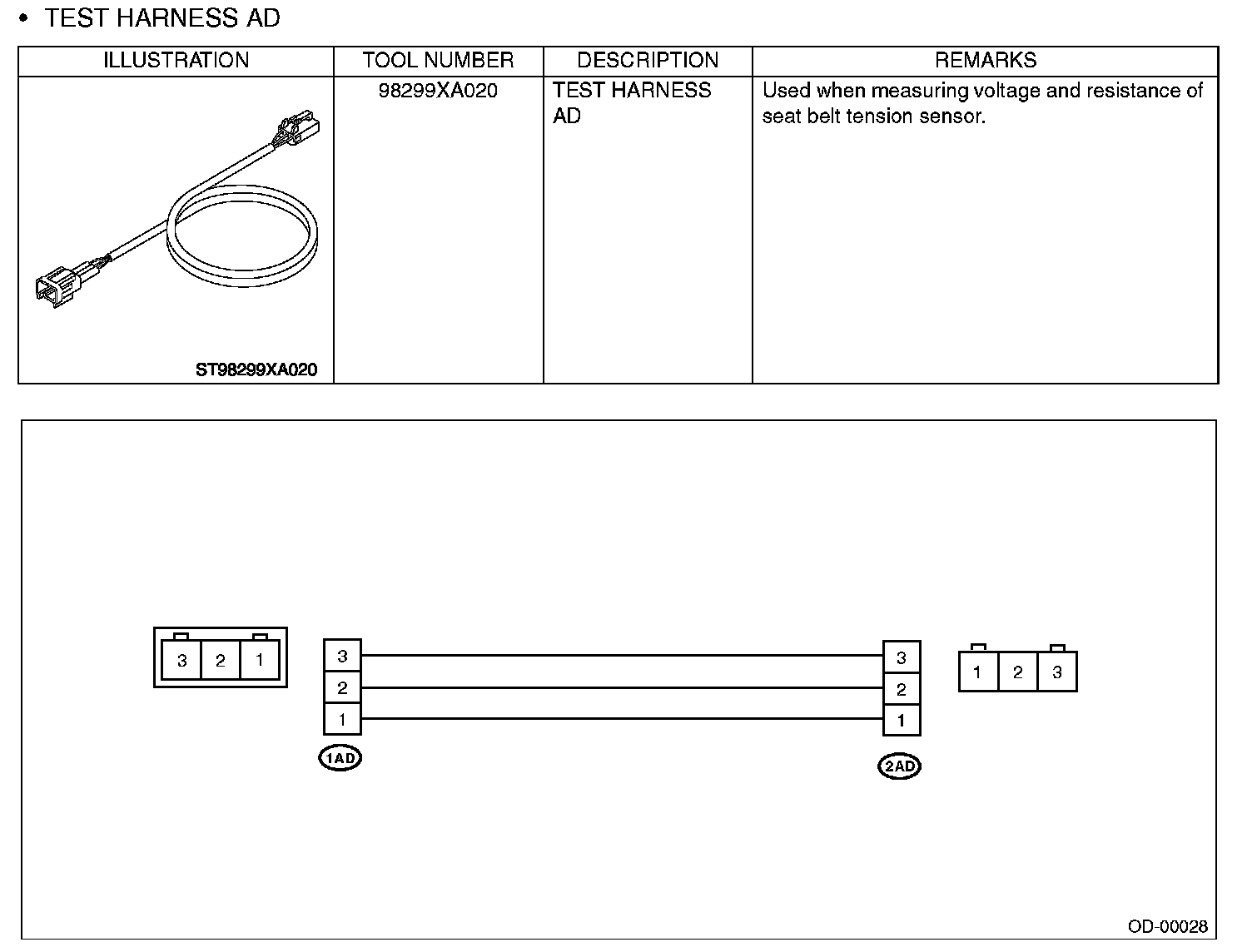

Test Harness AD:

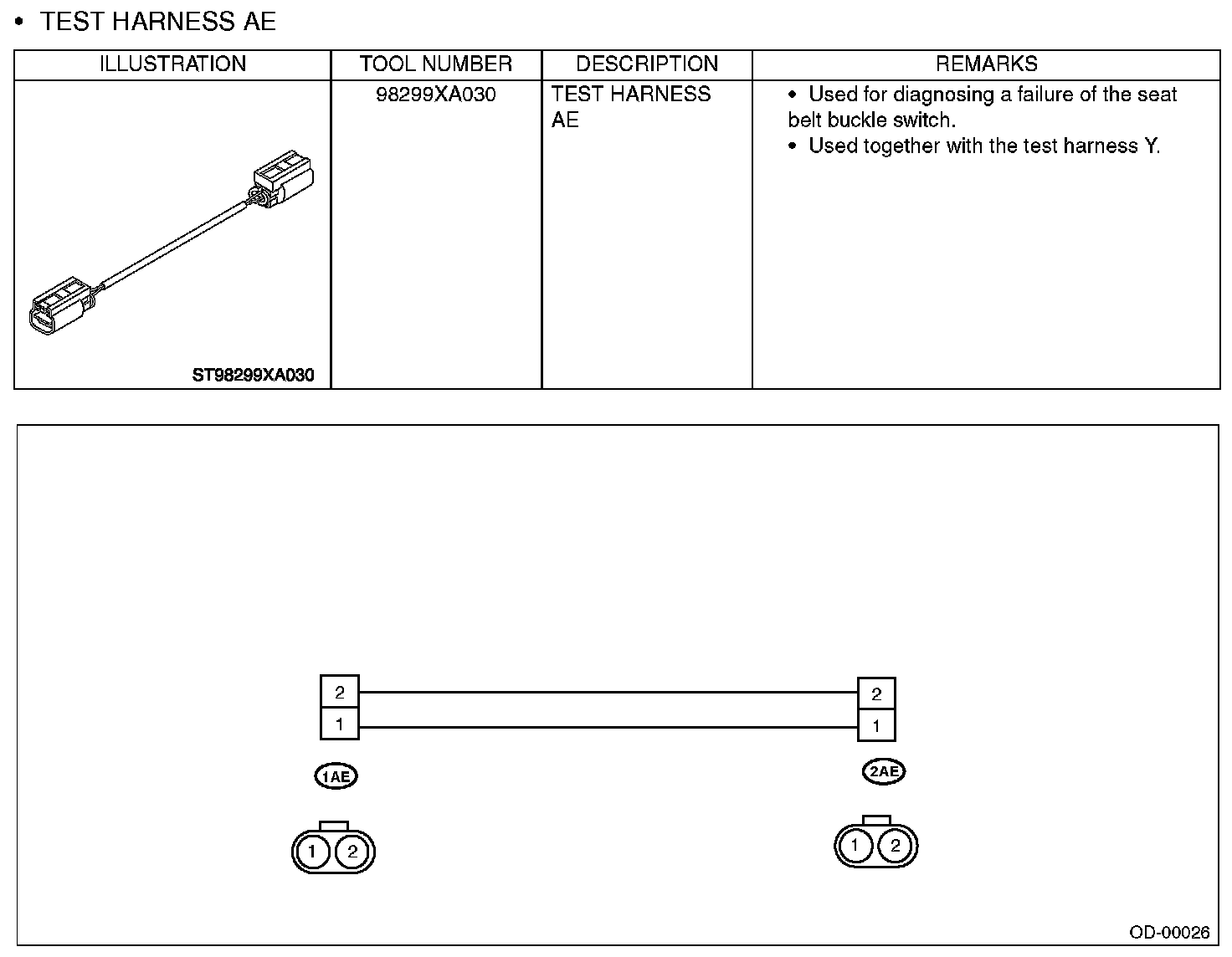

Test Harness AE:

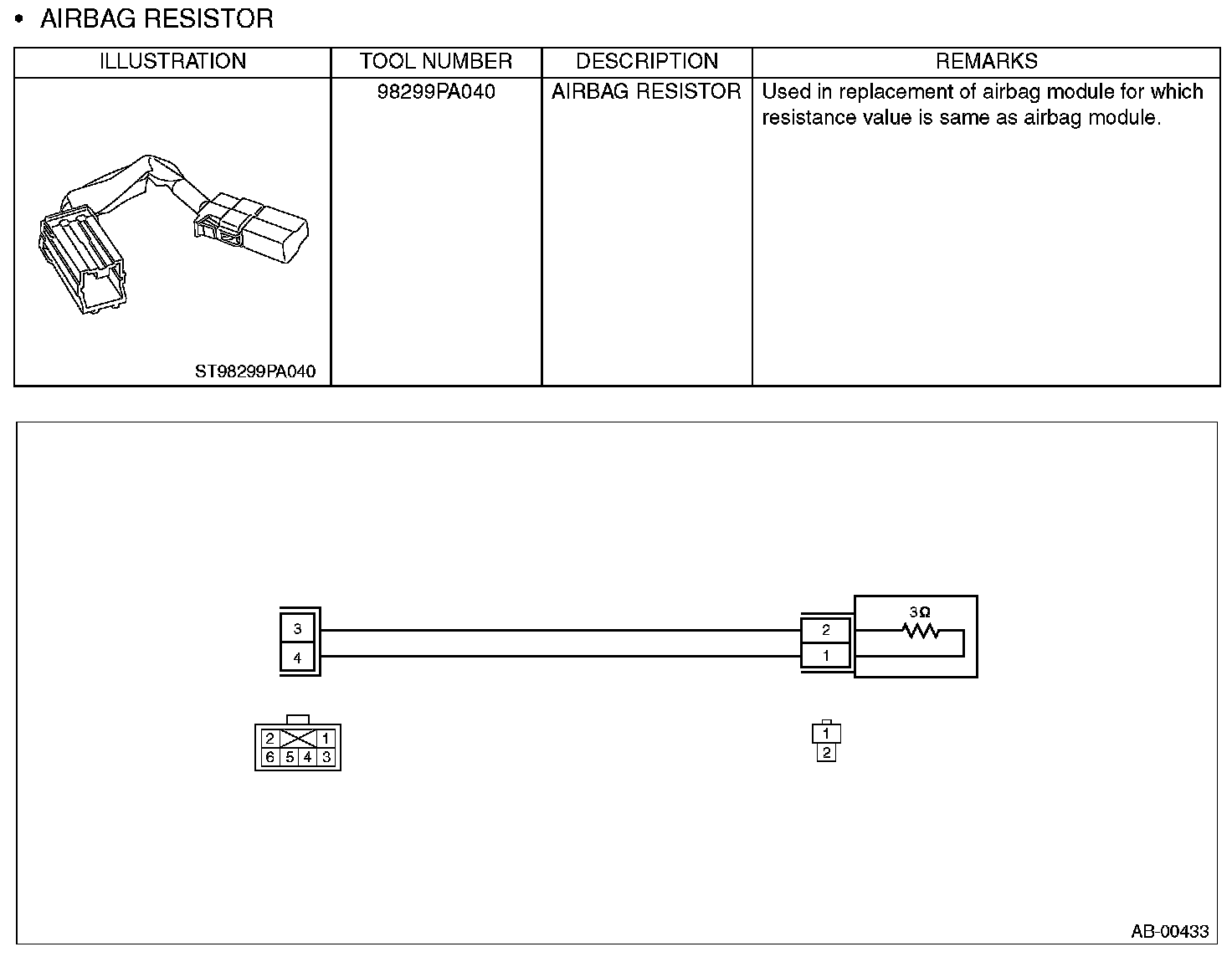

Airbag Resistor:




1. SPECIAL TOOL

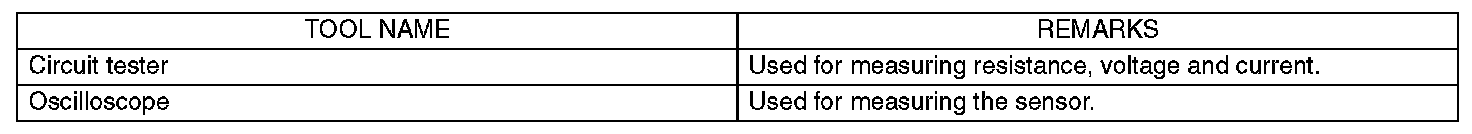

General Tool:




2. GENERAL TOOL
