Lighting - Fog Lamp/Lens Service Procedure

NUMBER: 07-56-06
DATE: 08/01/06

APPLICABILITY:
2006 and Later B9 Tribeca

SUBJECT:
Fog Light Lens and Body

INTRODUCTION

The purpose of this bulletin is to inform you that the front fog light lens and body are now available separately from the fog lamp assembly.

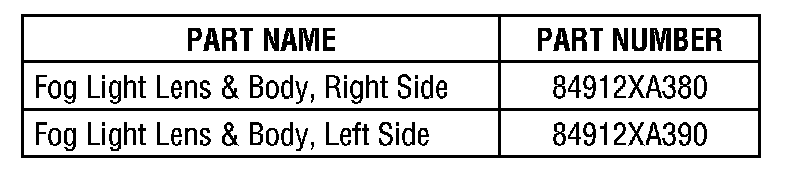

PARTS INFORMATION

REPAIR PROCEDURE/INFORMATION

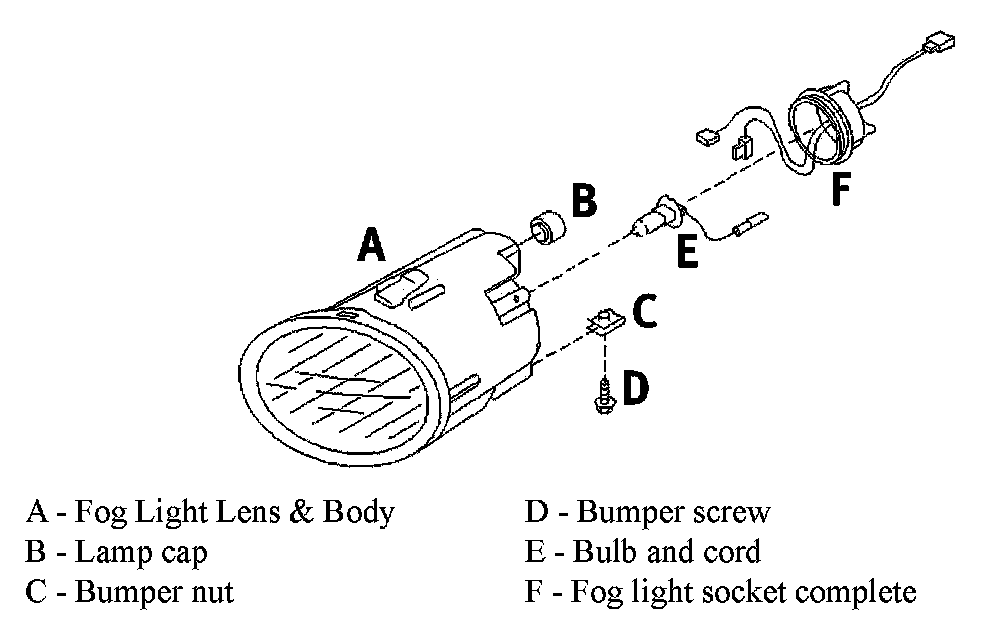

1) Remove the fog light assembly according to the procedure listed in the applicable Subaru Service Manual found on the STIS web-site.

2) Transfer parts as necessary. When transferring the bulb and cord (E) be careful not to touch the glass surface of the bulb.





Fog Light Lens and Body

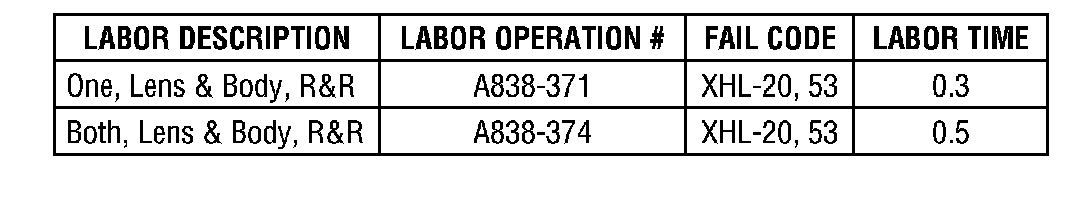

WARRANTY INFORMATION





For vehicles within the Basic New Car Limited Warranty period this repair can be claimed using the following:





Disclaimer
