Windshield Washer Spray Nozzle: Adjustments

Front Washer Nozzle

ADJUSTMENT

CAUTION: Do not move the spray nozzle area directly to adjust.Doing so will damage the slit and cause improper spray.

1. Turn the wiper switch to OFF position.

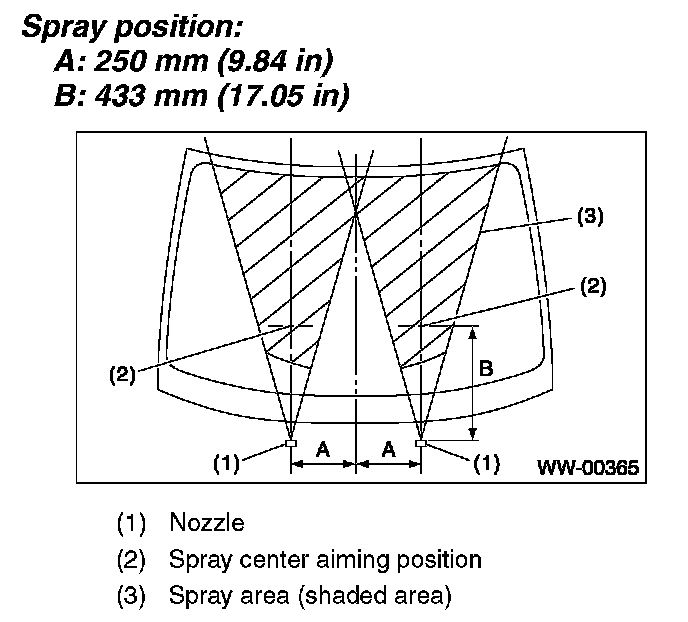

2. While the vehicle is at a standstill, adjust the washer injection position as shown in the figure.

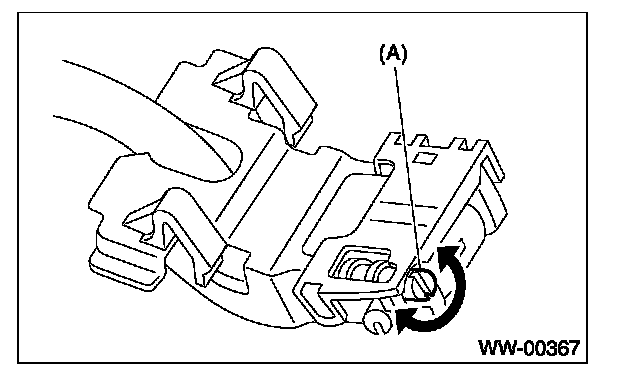

3. Spray angle should be adjusted by rotating adjusting dial (A) with a flat tip screwdriver.

NOTE: Adjusting dial will return to the original spray angle with 1 rotation.
