Windshield Washer Spray Nozzle: Service and Repair

Front Washer Nozzle

REMOVAL
1. Remove the front hood insulator.

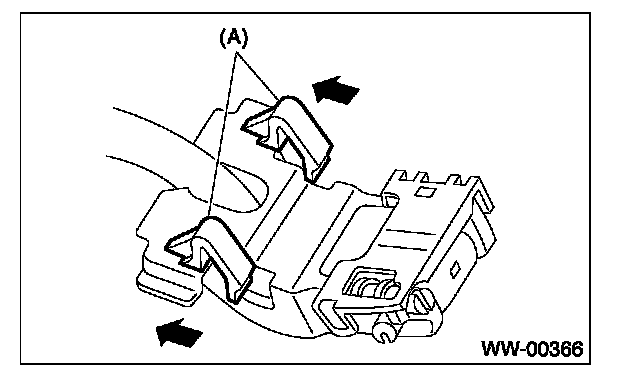

2. Hold the claw (A) of the washer nozzle towards the direction of the arrow, and remove the washer nozzle.




3. Remove the washer hose from the washer nozzle.

INSTALLATION
1. Install in the reverse order of removal.
2. Adjust the washer nozzle position.
