Wiper Motor Linkage: Service and Repair

Front Wiper Motor and Link

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the cowl panel.
3. Disconnect the connector of wiper motor assembly.

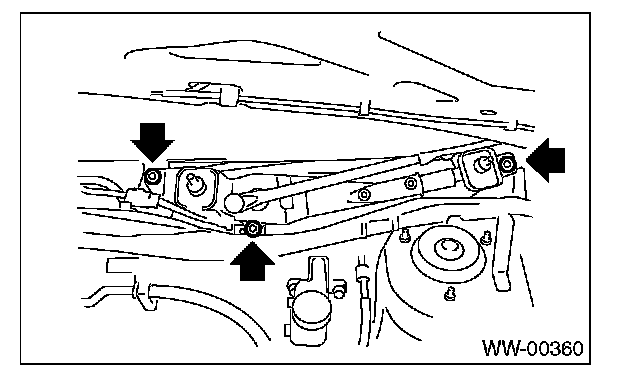

4. Remove the bolt, and then remove the wiper assembly.

NOTE: The wiper motor and wiper link is an assembly part and is not to be disassembled.

INSTALLATION
Install in the reverse order of removal.

Tightening torque:
T1: 6.0 N.m (0.61 kgf.m, 4.4 ft.lb)
T2: 20 N.m (2.0 kgf.m, 14.5 ft.lb)
