P0400

DTC P0400 EXHAUST GAS RECIRCULATION FLOW

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Movement performance problem when engine is low speed.
- Erroneous idling
- Movement performance problem

CAUTION: After repairing or replacing the defective part, carry out the Clear Memory Mode and Inspection Mode.

Wiring Diagram:

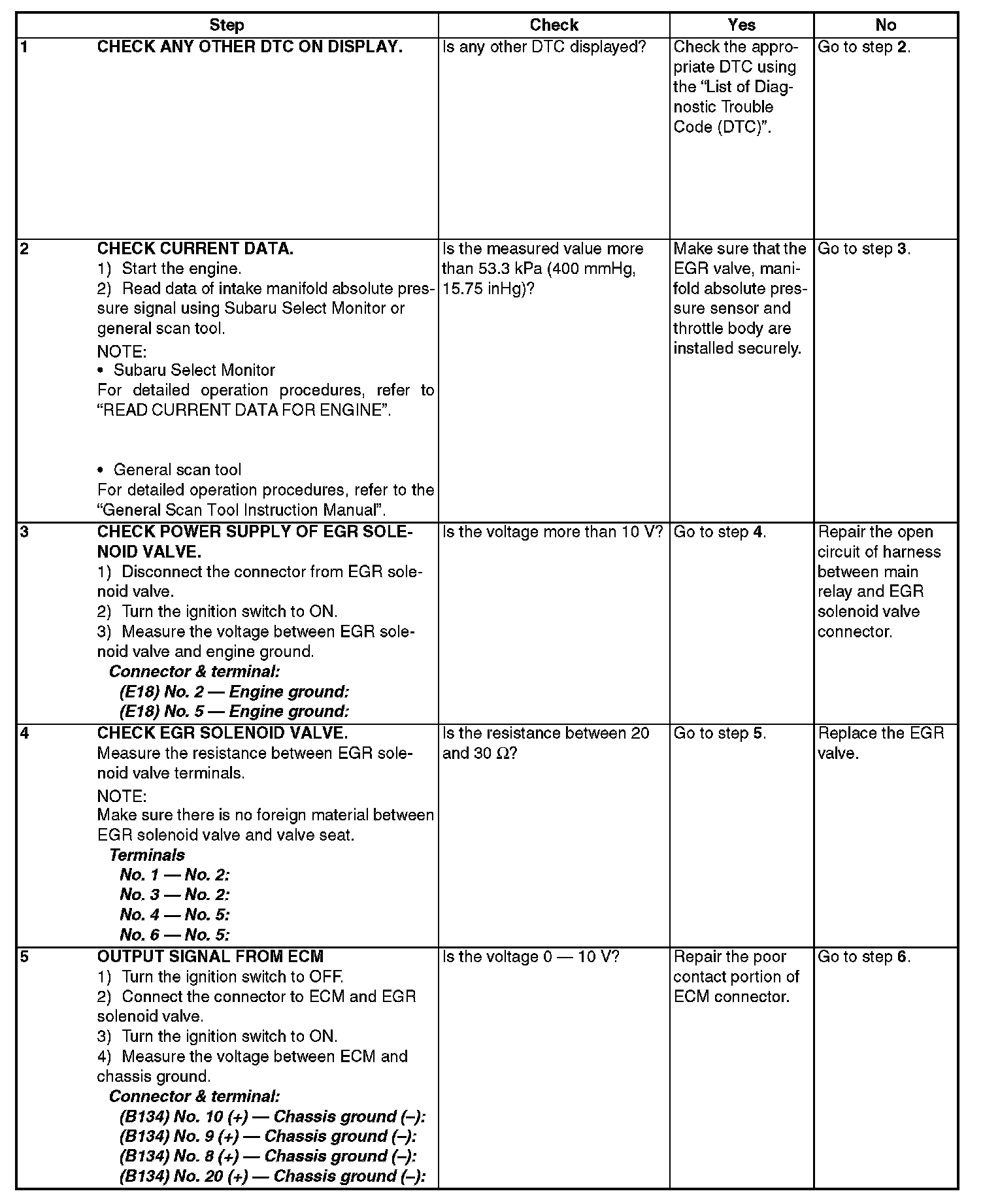

Step 1 - 5:

Step 6 - 8:
