P1498

DTC P1498 EGR SOLENOID VALVE SIGNAL #4 CIRCUIT MALFUNCTION (LOW INPUT)

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Poor driving performance
- Engine breathing

CAUTION: After repairing or replacing the defective part, carry out the Clear Memory Mode and Inspection Mode.

Wiring Diagram:






Step 1:

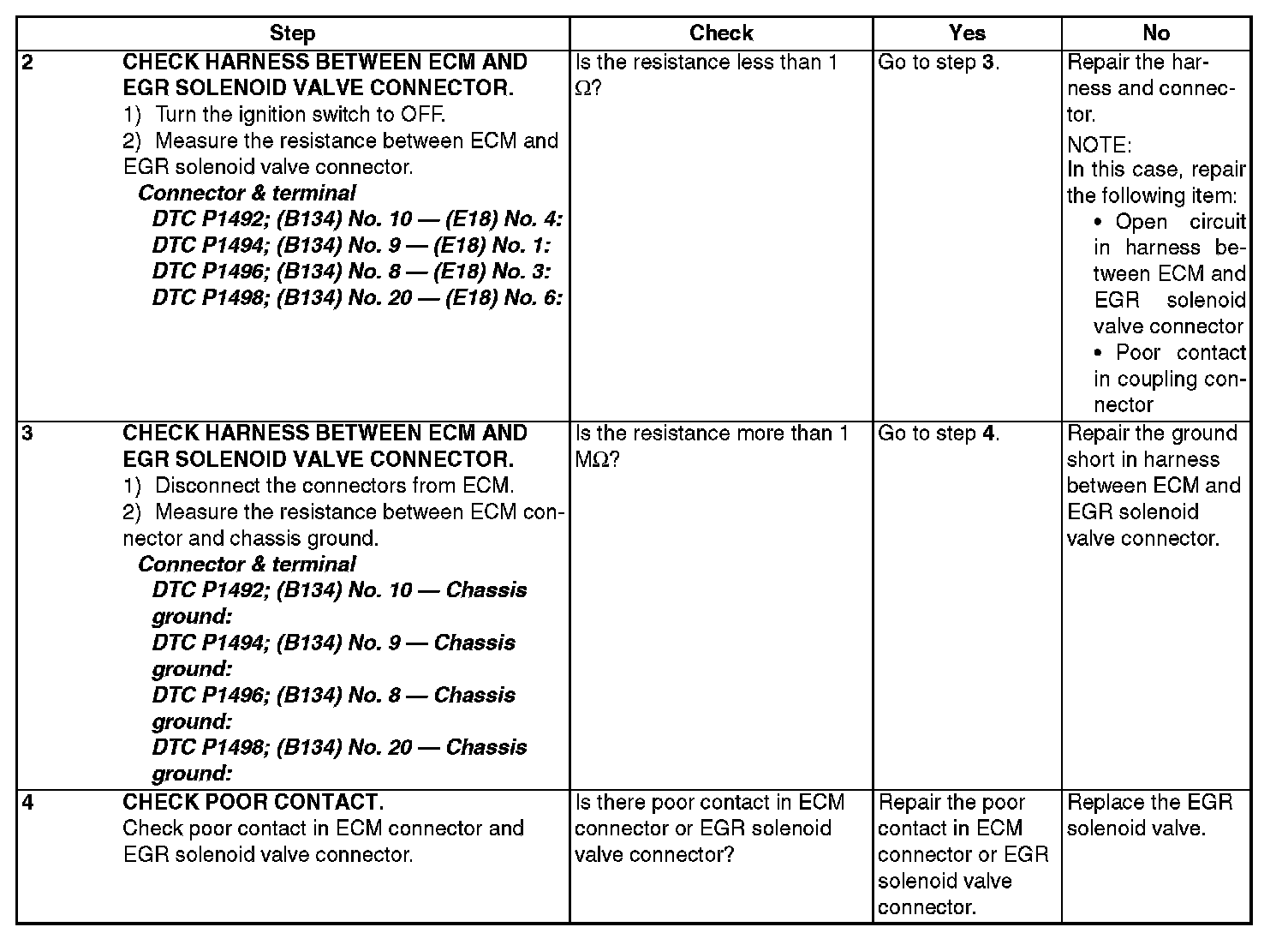

Step 2 - 4:
