Lighting/Horns - Horn Production Changes

NUMBER: 07-58-06
DATE: 08/25/06

APPLICABILITY:
2006MY Impreza and Later

SUBJECT: Change in Horn(s)

INTRODUCTION

This bulletin informs of a change in the external diameter of the horns from 76mm (3in) to 70mm (2.75in), and the position of the High and Low frequency-type horns.





PARTS INFORMATION

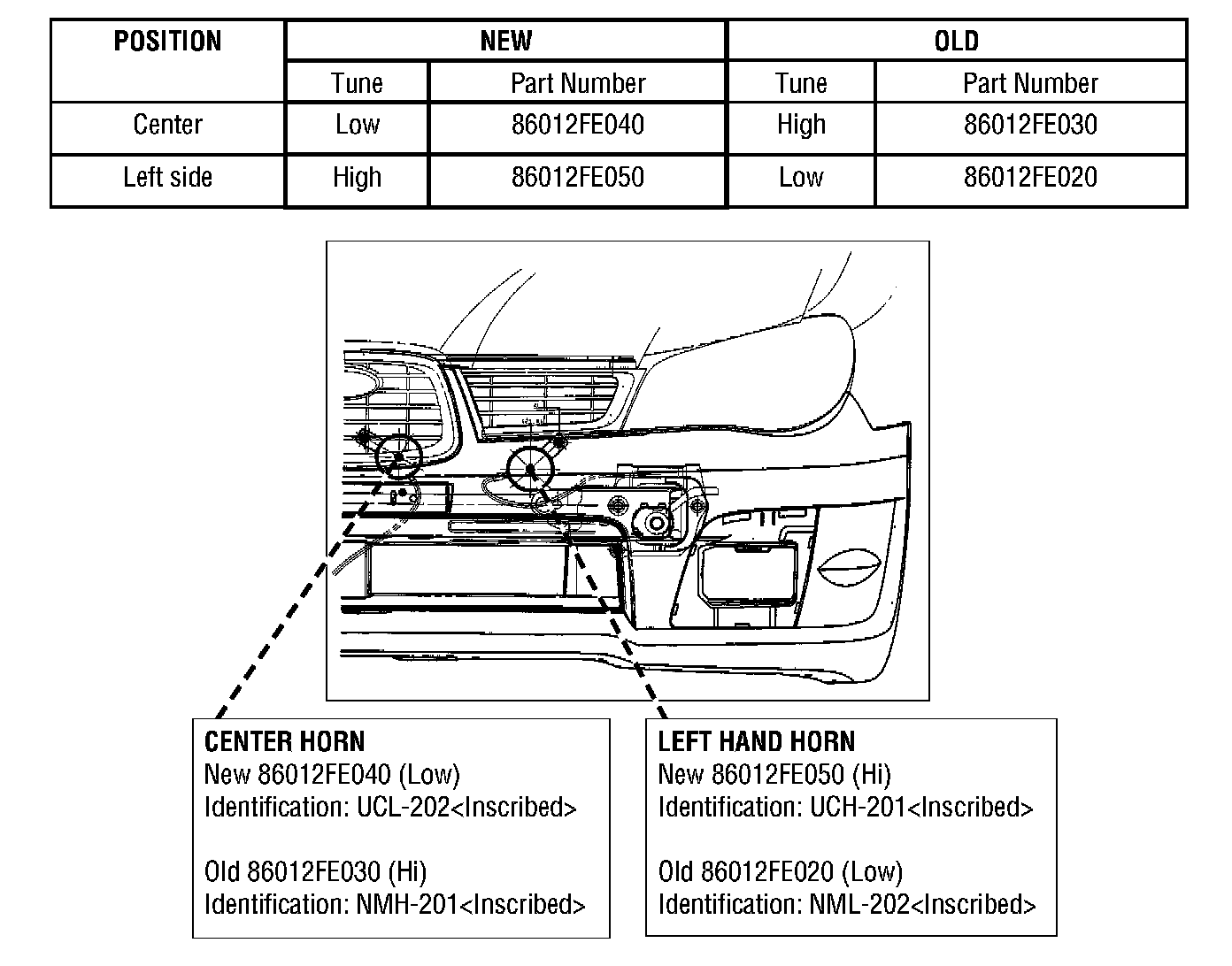

Horn Selection for Replacement

1) If one horn needs to be replaced use New type horn.

New Type
86012FE040 (Low) Center
86012FE050 (High) Left Side

2) If both horns need to be replaced, the New type combination or Old type combination may be used.

New Type
86012FE040 (Low) Center
86012FE050 (High) Left Side

Old Type
86012FE030 (High) Center
86012FE020 (Low) Left side

PRODUCTION LINE CHANGE

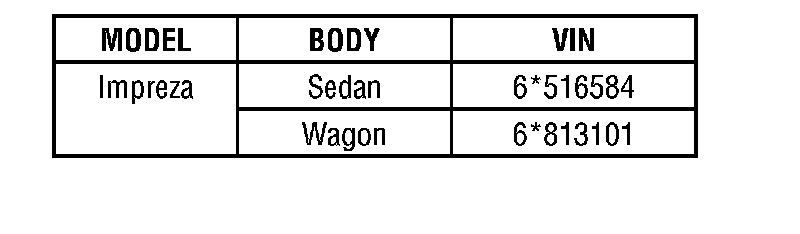

A change in production was made in February~ 2006 starting with the VINs shown.
