U1300

DTC U1300 CAN-LS MALFUNCTION

DTC DETECTING CONDITION:
Either end of low-speed CAN communication line is open or shorted, the connector is not connected properly, or the terminal has poor crimping.

TROUBLE SYMPTOM:
- "Er LC" is displayed in odo/trip meter (except for meters with MID), but communicating function is normal.

Wiring Diagram:




WIRING DIAGRAM:

Step 1-9:

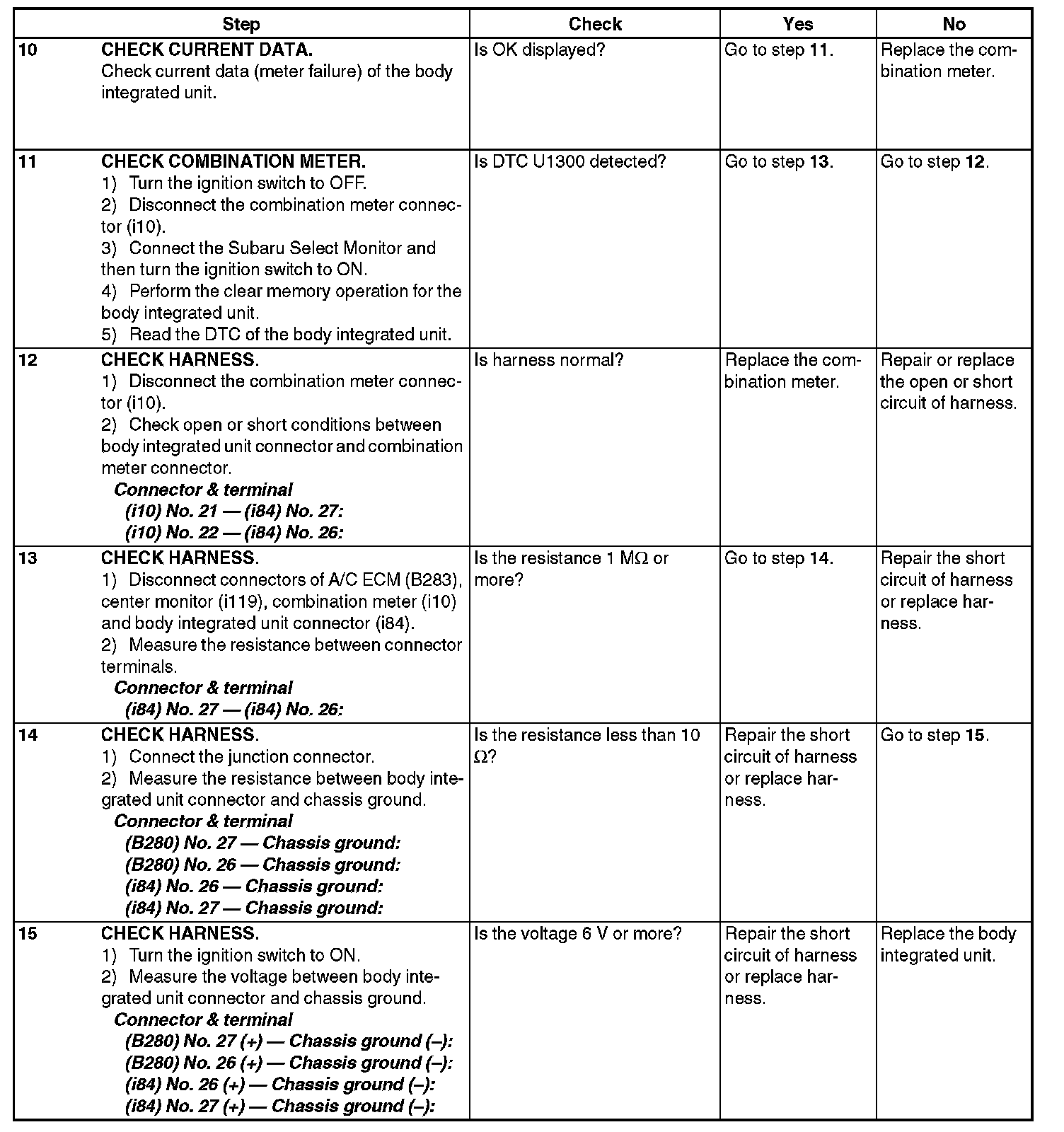

Step 10-15:
