Pinout Values and Diagnostic Parameters

Control Module I/O Signal

ELECTRICAL SPECIFICATION





NOTE:
^ Terminal numbers in the VDCCM connector are as shown in the figure.
^ When the connector is removed from VDCCM, the connector switch closes the circuit between terminals No. 53 and 54. Then, ABS warning light and brake warning light (EBD warning light) illuminates.

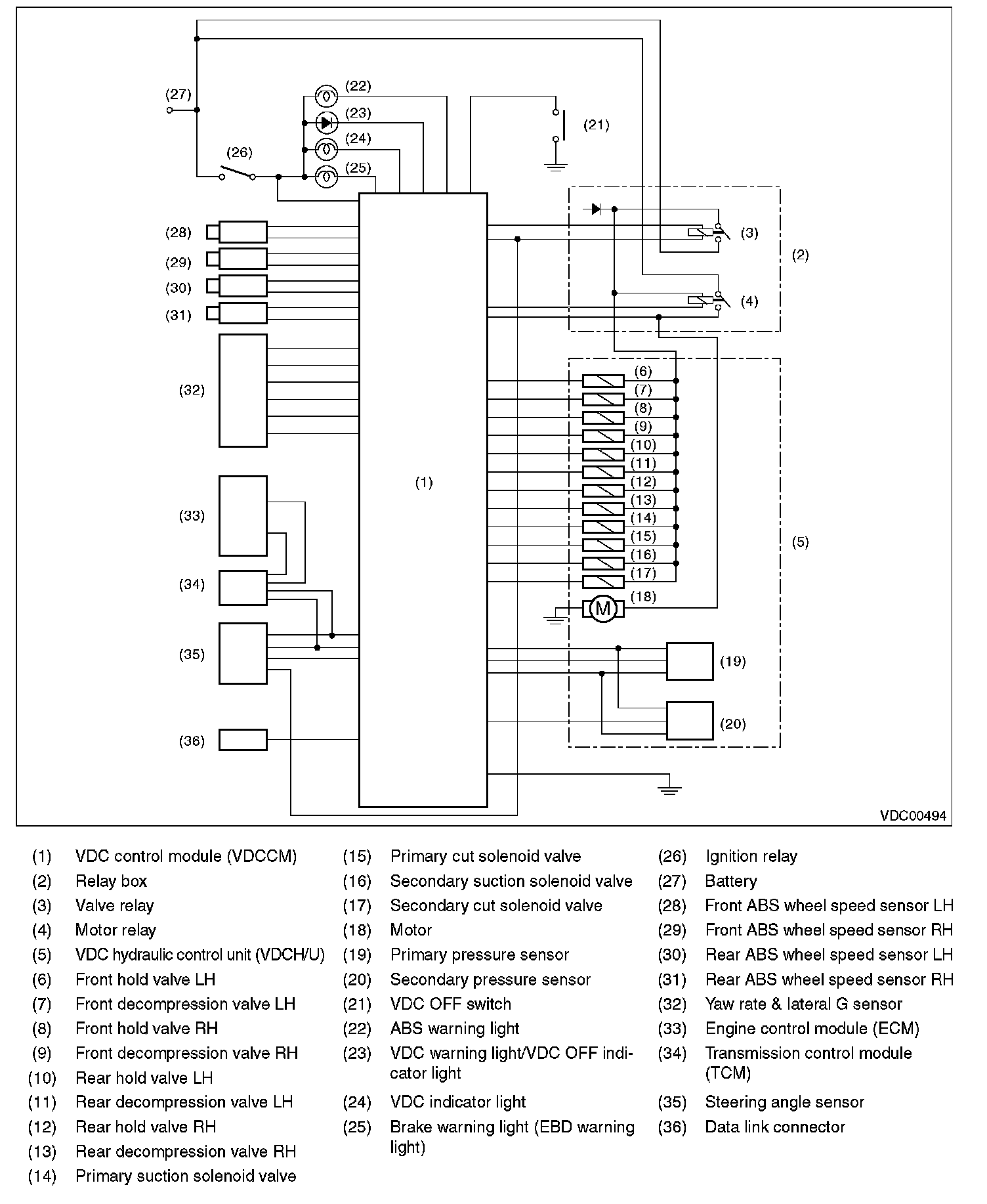

WIRING DIAGRAM:

MEASUREMENT
Measure the input and output signal voltages.

NOTE: Measure while the VDCCM connector cover is removed.

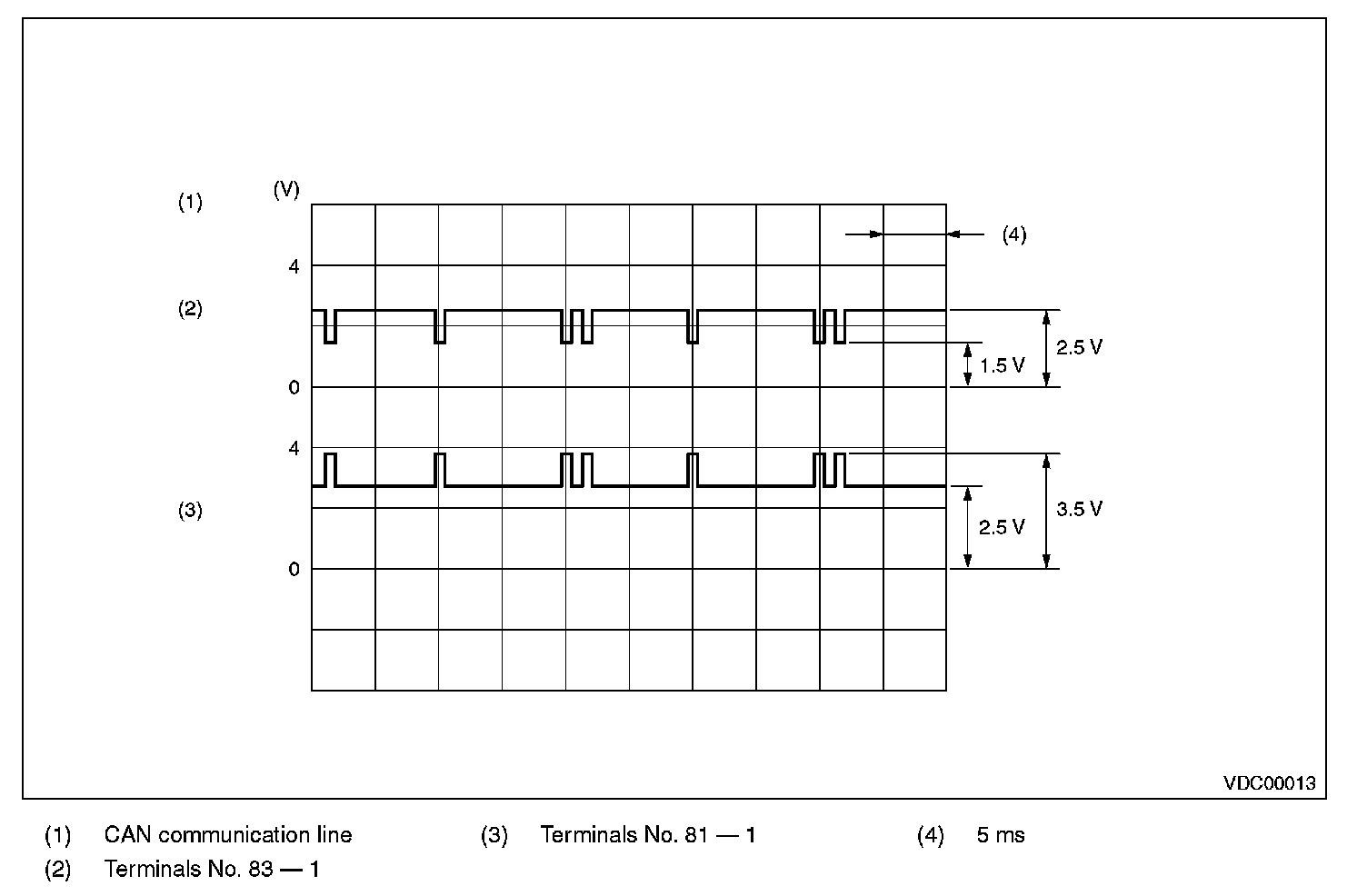

WAVEFORM
