Instrument Panel Center Compartment

INSTRUMENT PANEL CENTER COMPARTMENT

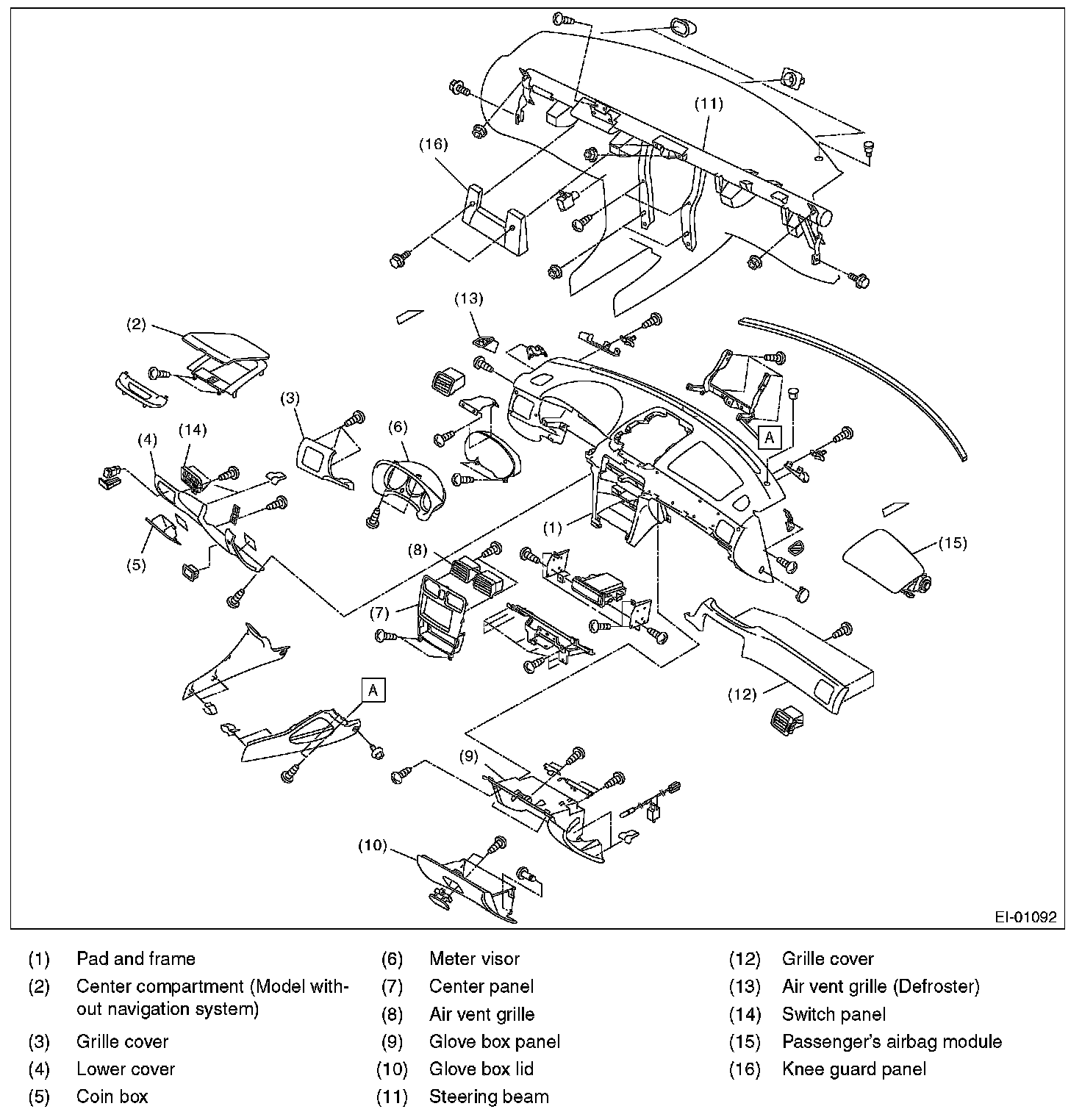

Instrument Panel:

REMOVAL

1. Disconnect the ground cable from the battery.
2. Use a flat tip screwdriver to pry off the clip.






3. Remove the instrument panel center compartment from the instrument panel.
4. Disconnect the clock connector.

INSTALLATION

Install in the reverse order of removal.
