Tachometer: Testing and Inspection
TachometerINSPECTION

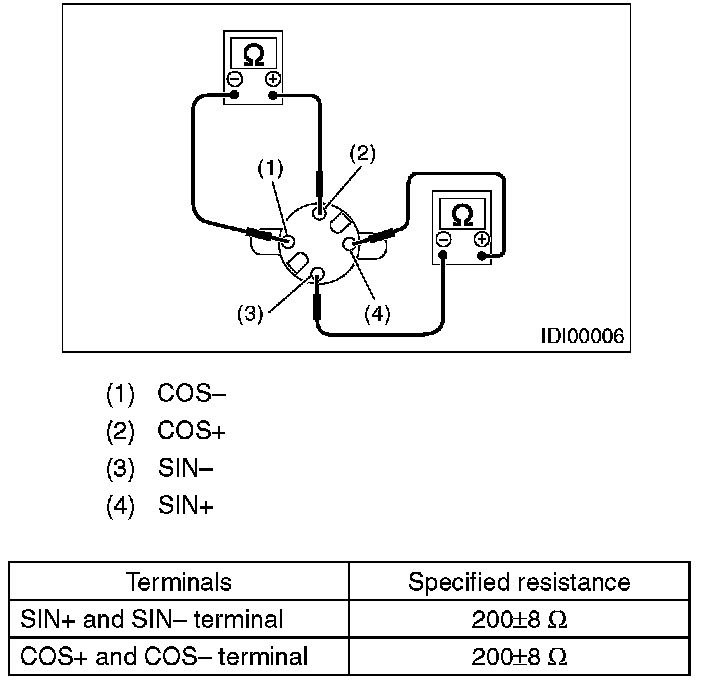

Measure the tachometer resistance.
If defective, replace the tachometer.
If OK, replace the combination meter printed circuit.
INSPECTION
Measure the tachometer resistance.
If defective, replace the tachometer.
If OK, replace the combination meter printed circuit.
