Center Mounted Brake Lamp: Service and Repair

High-mounted Stop Light

REMOVAL

1. REAR SPOILER BUILT-IN TYPE
1. Disconnect the ground cable from the battery.
2. For model with roof spoiler, remove the roof spoiler.
3. Unpeel the tape on the backside of the high-mounted stop light and remove the nuts, to remove the high-mounted stop light.






2. STANDARD TYPE
1. Disconnect the ground cable from the battery.

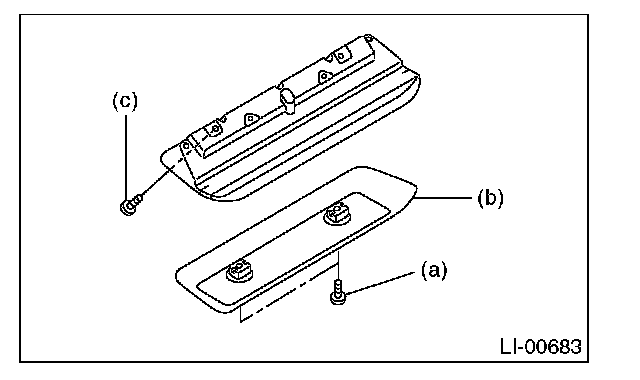

2. Remove the screws (a) and then detach the cover (b).
3. Remove the screws (c) and then detach the high-mounted stop light while disconnecting the connector.






INSTALLATION
Install in the reverse order of removal.
