Airbag Diagnostics

PREPARATION TOOL

CAUTION: To measure the voltage and resistance of airbag system component, be sure to use the specified test harness.

1. SPECIAL TOOL

Special Tool:

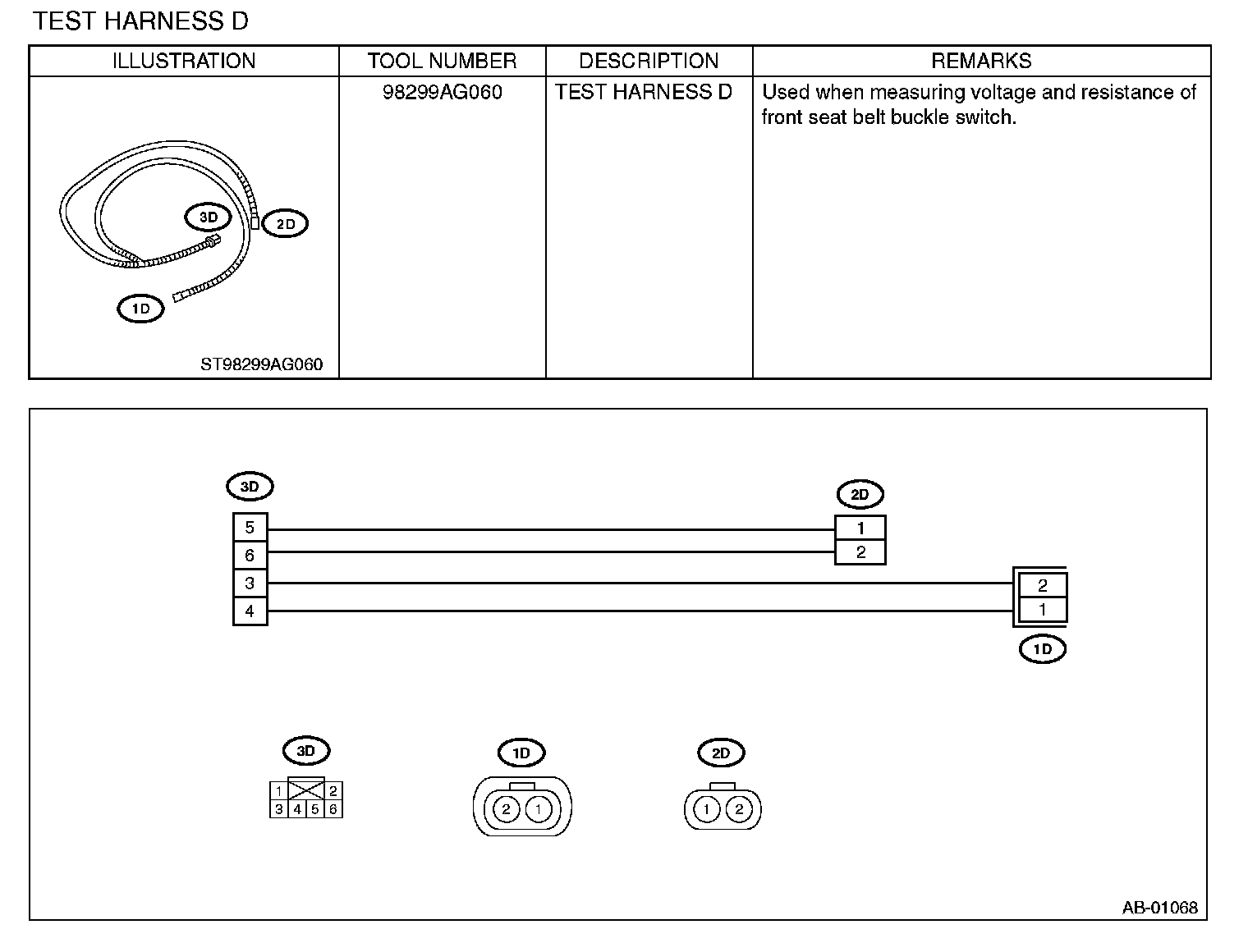

- TEST HARNESS D

Test Harness D:

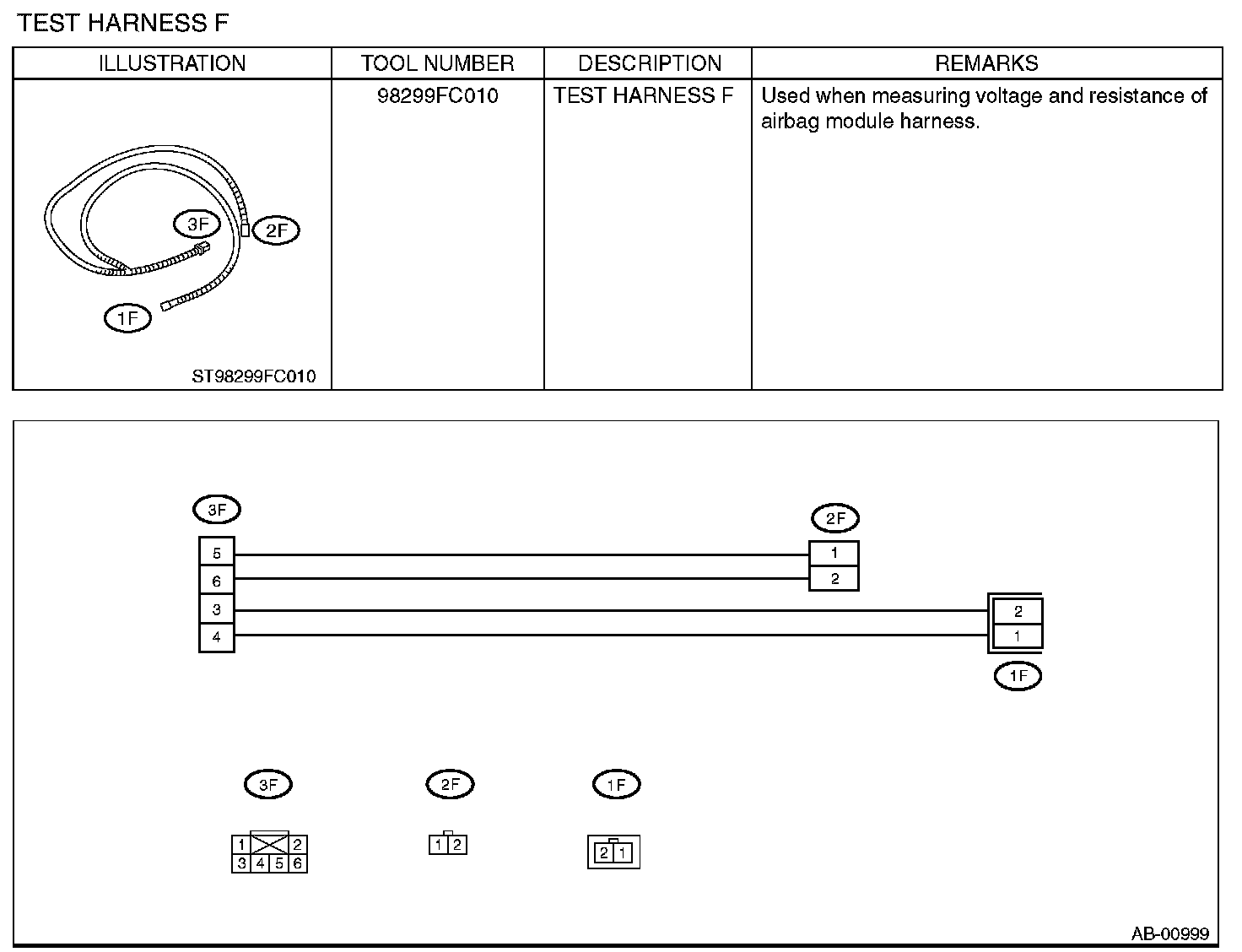

- TEST HARNESS F

Test Harness F:

- TEST HARNESS H

Test Harness H:

- TEST HARNESS N

Test Harness N:

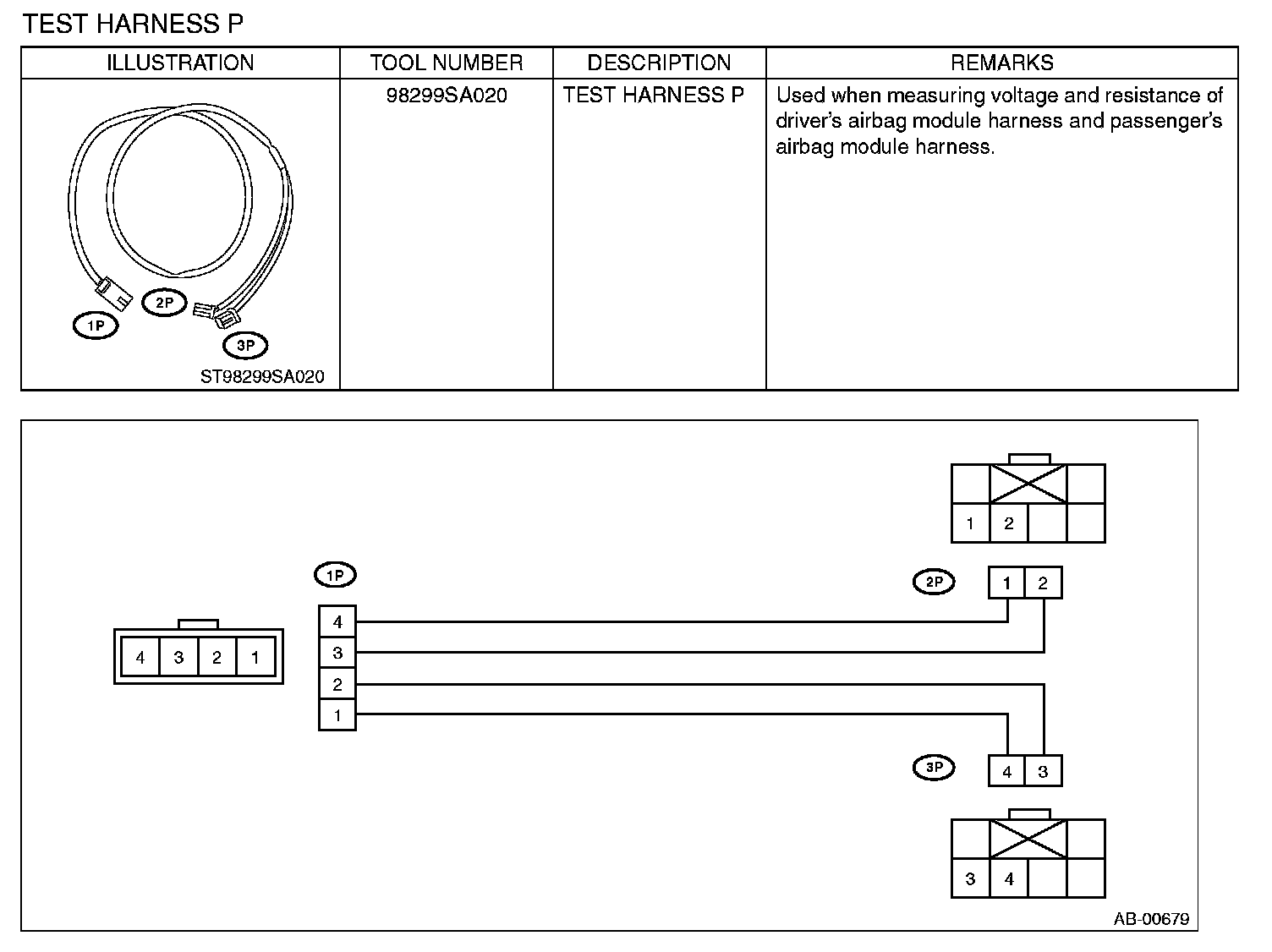

- TEST HARNESS P

Test Harness P:

- TEST HARNESS Q

Test Harness Q:

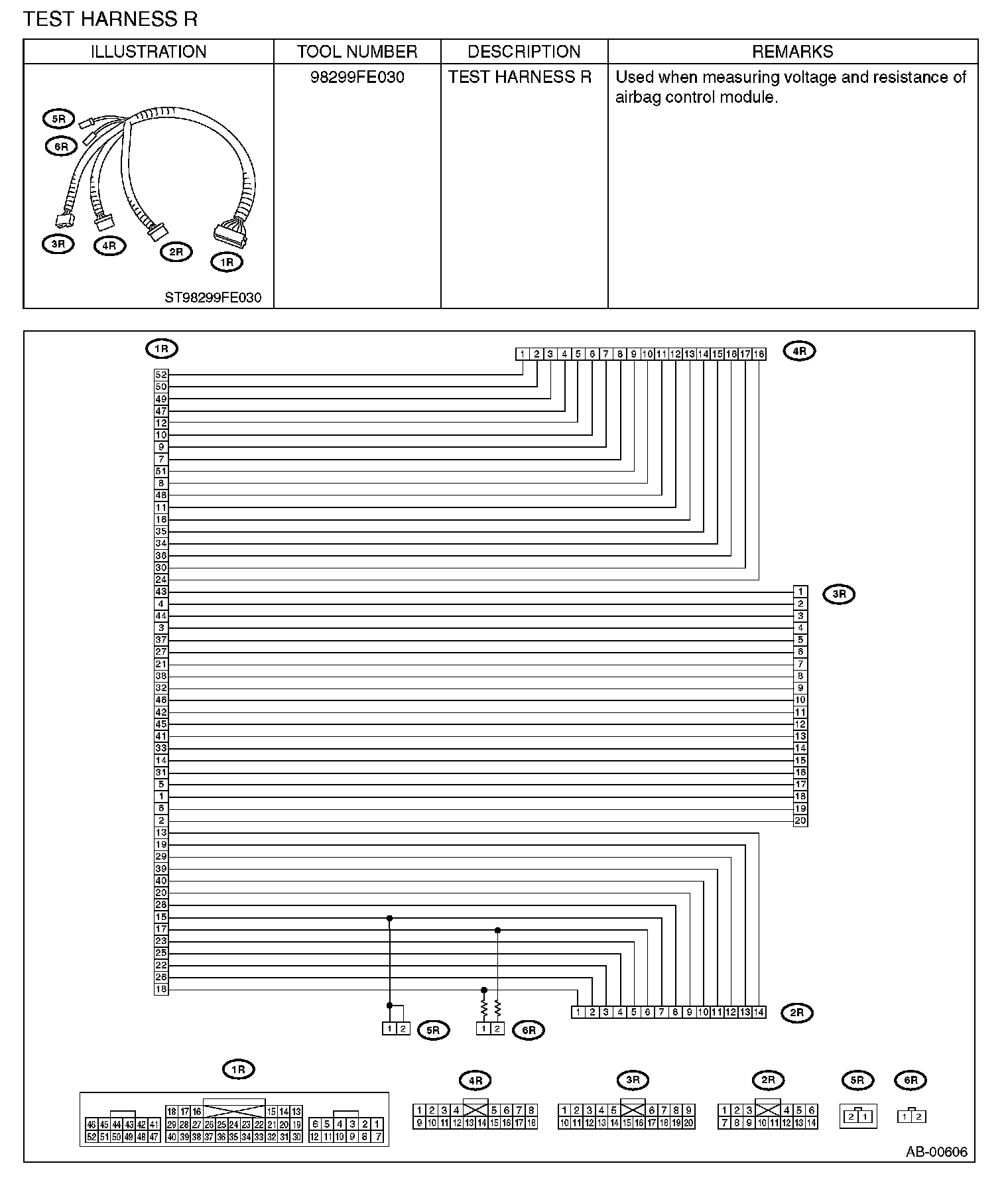

- TEST HARNESS R

Test Harness R:

- TEST HARNESS V

Test Harness V:

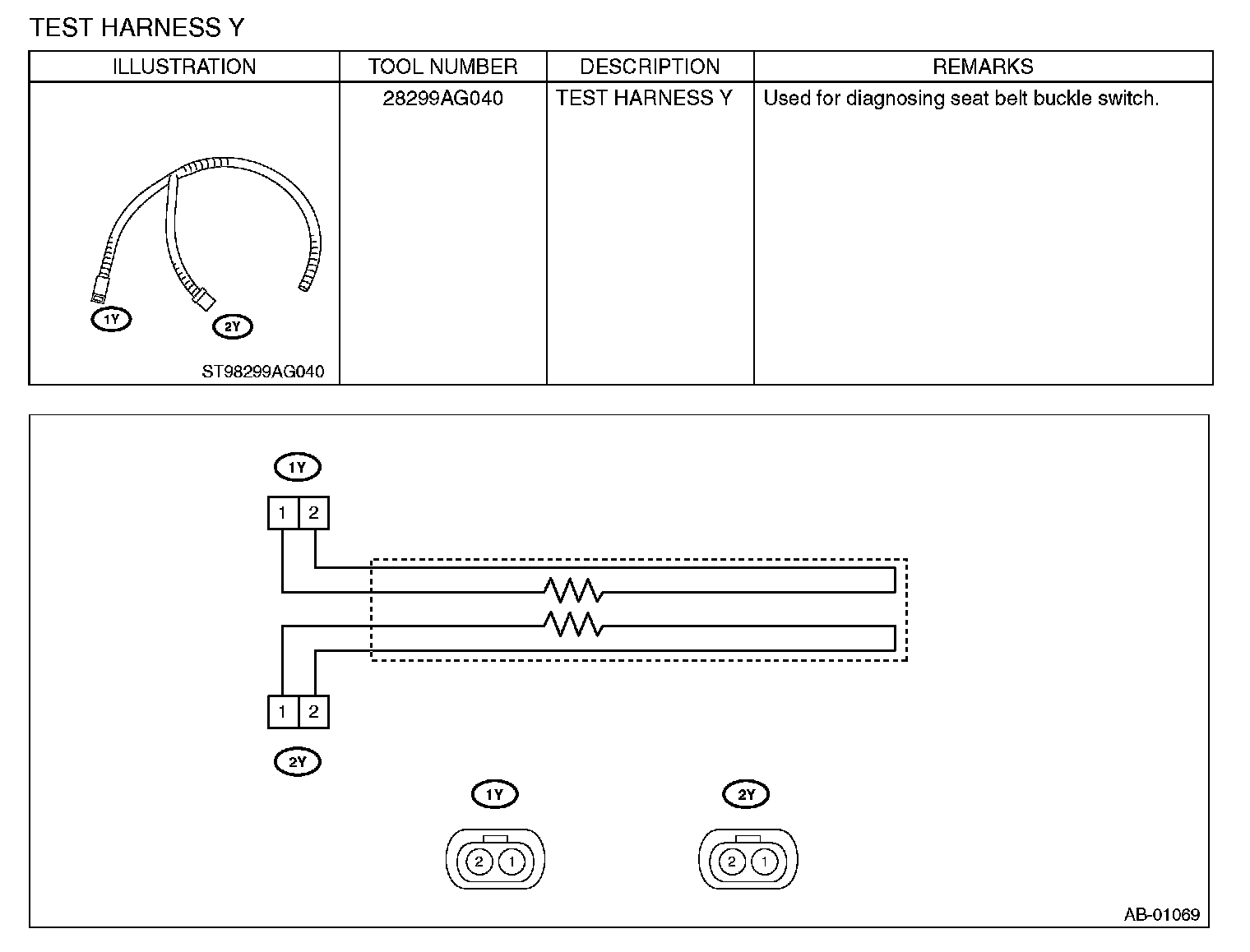

- TEST HARNESS Y

Test Harness Y:

- TEST HARNESS AB

Test Harness AB:

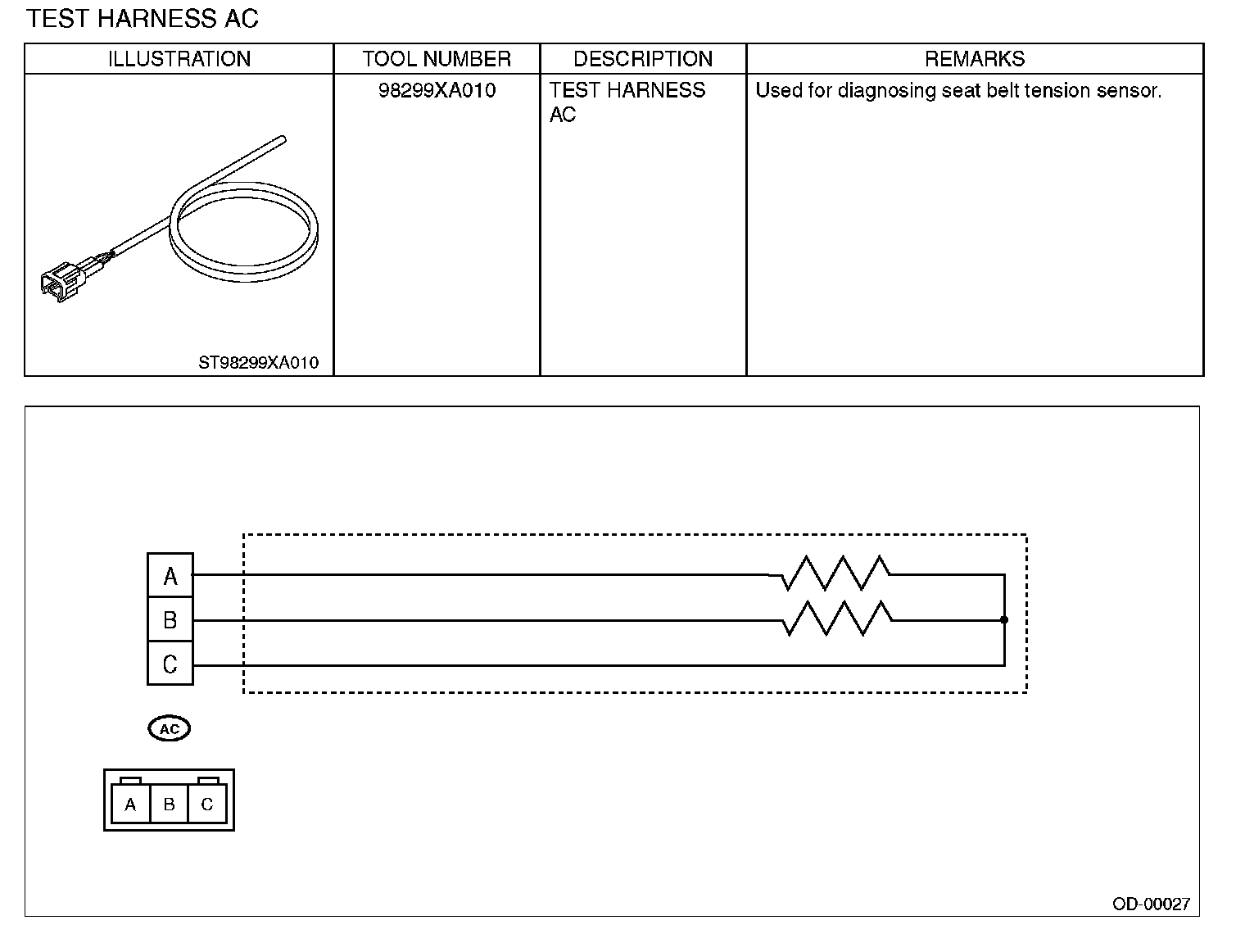

- TEST HARNESS AC

Test Harness AC:

- TEST HARNESS AD

Test Harness AD:

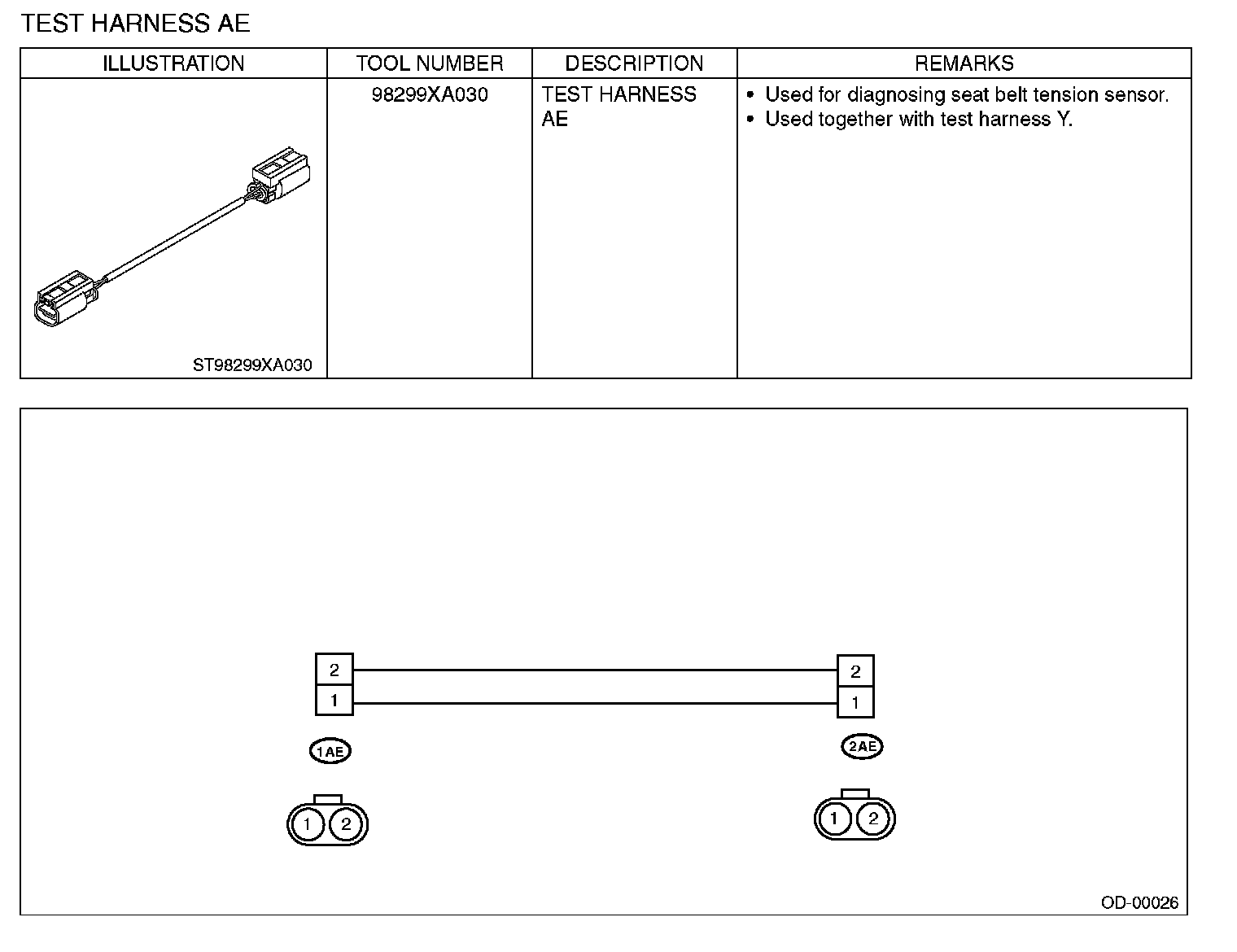

- TEST HARNESS AE

Test Harness AE:

- AIRBAG RESISTOR
