Center Mounted Brake Lamp: Service and Repair

High-mounted Stop Light

REMOVAL

1. SEDAN MODEL (STANDARD TYPE)
1. Disconnect the ground cable from the battery.

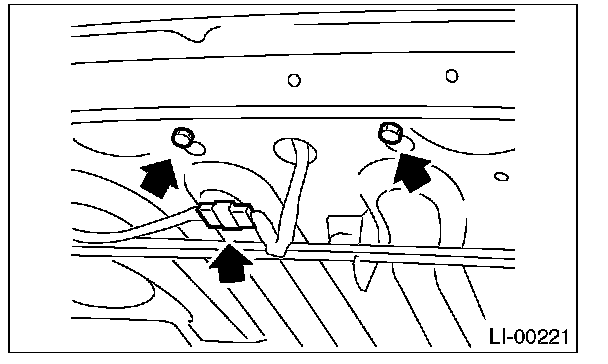

2. Disconnect the connector of the high-mounted stop light from the body harness.
3. Remove the bolt, then remove the high-mounted stop light assembly.






2. SEDAN MODEL (WITH BUILT-IN REAR SPOILER)
1. Disconnect the ground cable from the battery.
2. Remove the rear spoiler.

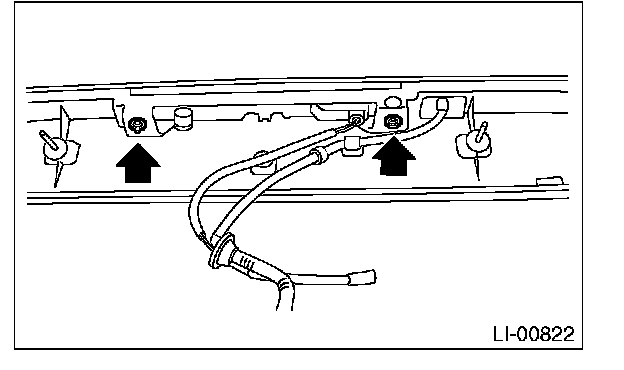

3. Remove the caps and screws, then detach the high-mounted stop light.






3. WAGON MODEL
1. Disconnect the ground cable from the battery.
2. Remove the roof spoiler.

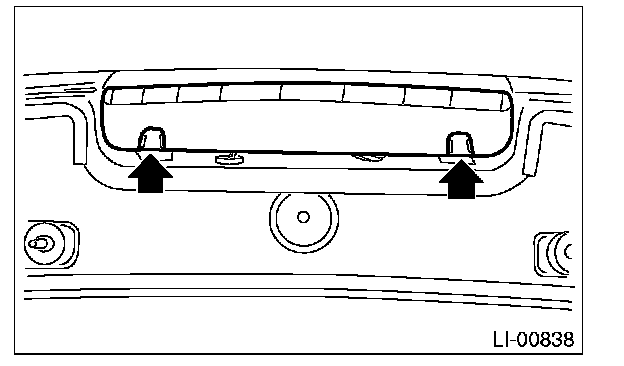

3. Remove the nuts, then detach the high-mounted stop light.






INSTALLATION
Install in the reverse order of removal.
