Airbag Diagnostics

PREPARATION TOOL

CAUTION: To measure the voltage and resistance of airbag system component, be sure to use the specified test harness.

1. SPECIAL TOOL

Special Tool:

- TEST HARNESS H

TEST HARNESS H:

- TEST HARNESS N

TEST HARNESS N:

- TEST HARNESS P

TEST HARNESS P:

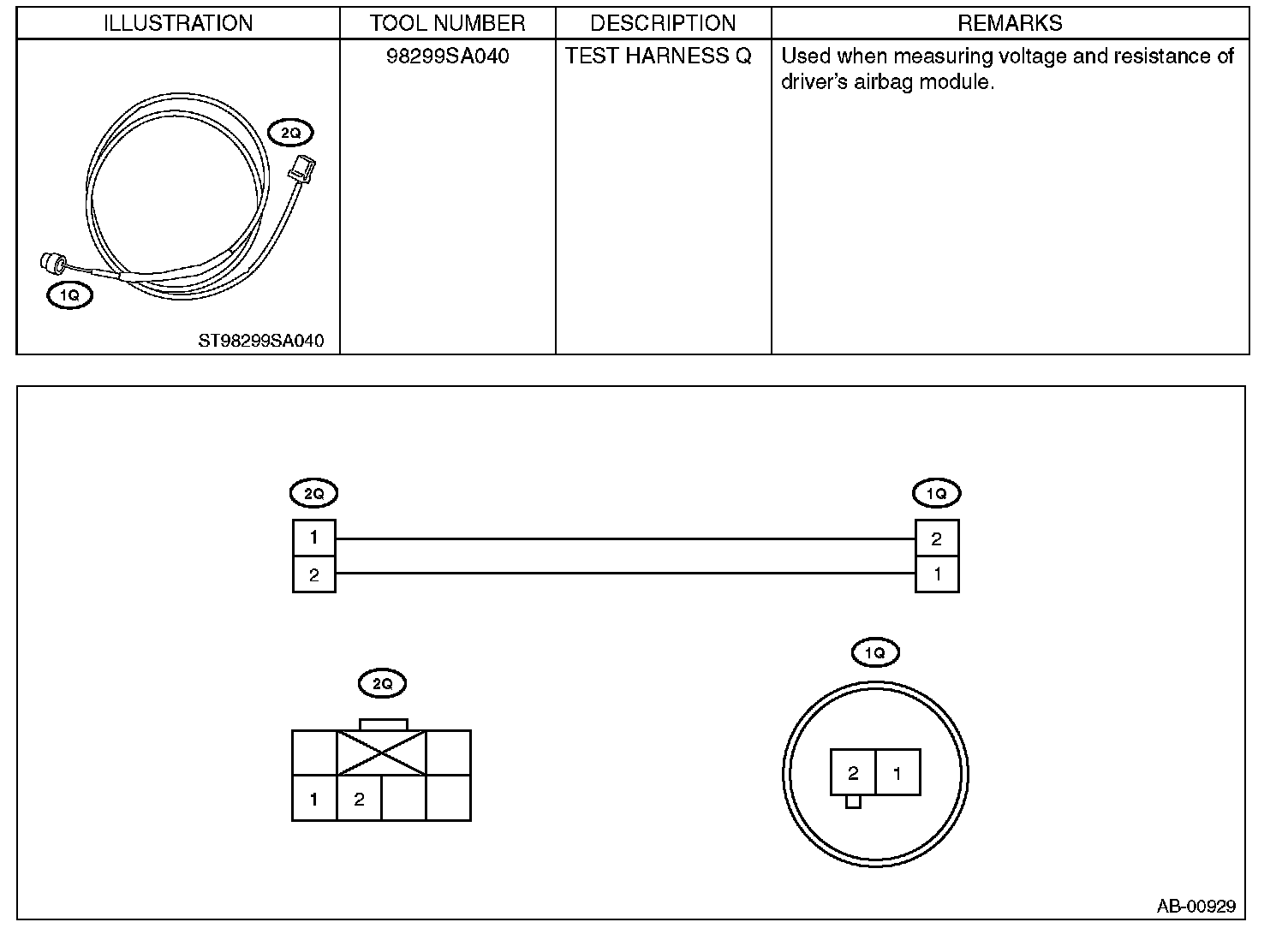

- TEST HARNESS Q

TEST HARNESS Q:

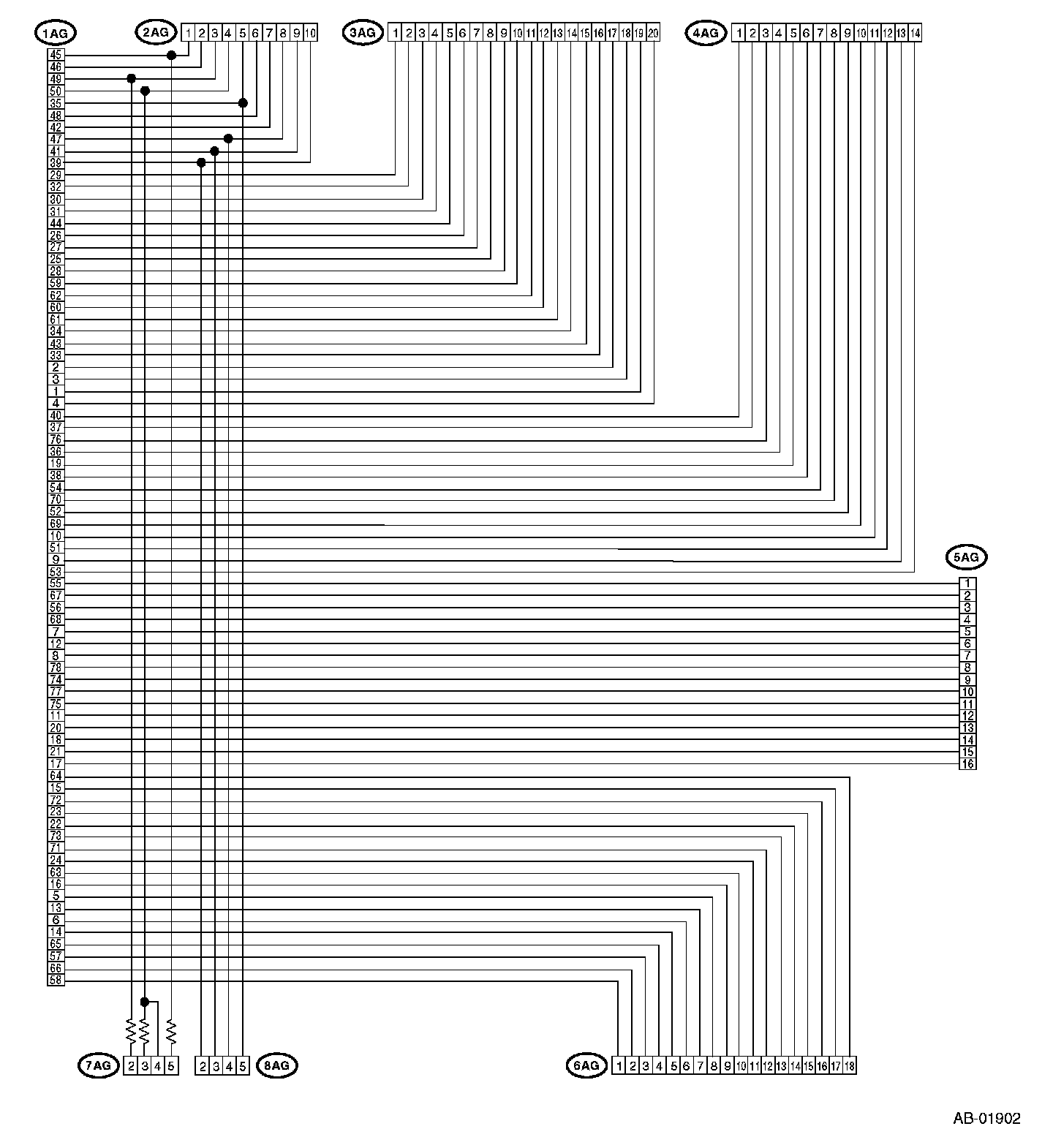

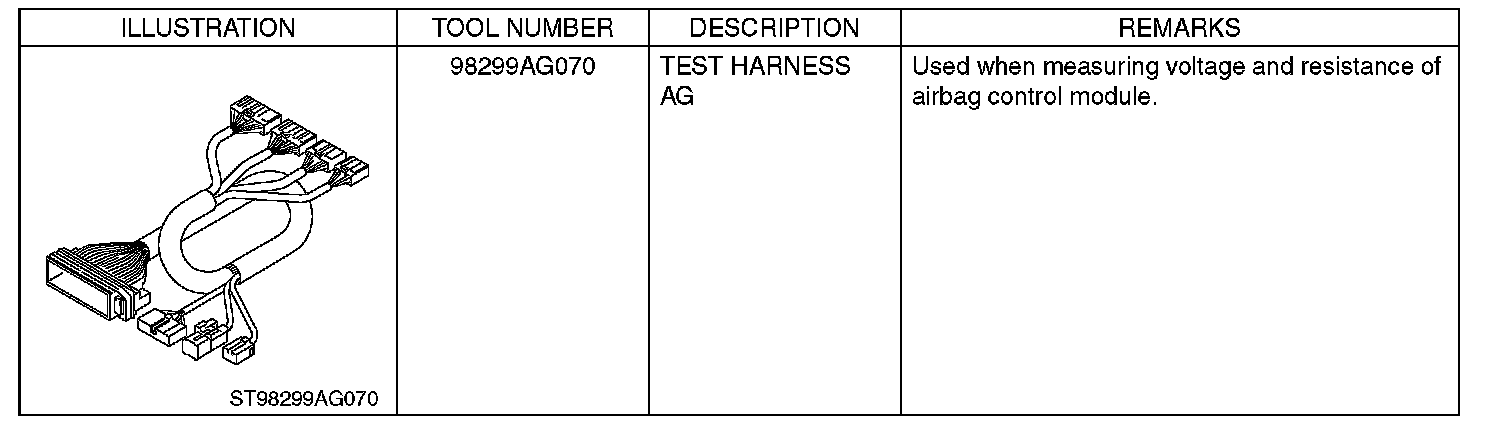

- TEST HARNESS AG

TEST HARNESS AG:

- TEST HARNESS AJ

TEST HARNESS AJ:

- TEST HARNESS V

TEST HARNESS V:

- TEST HARNESS AB

TEST HARNESS AB:

- TEST HARNESS AC

TEST HARNESS AC:

- TEST HARNESS AD

TEST HARNESS AD:

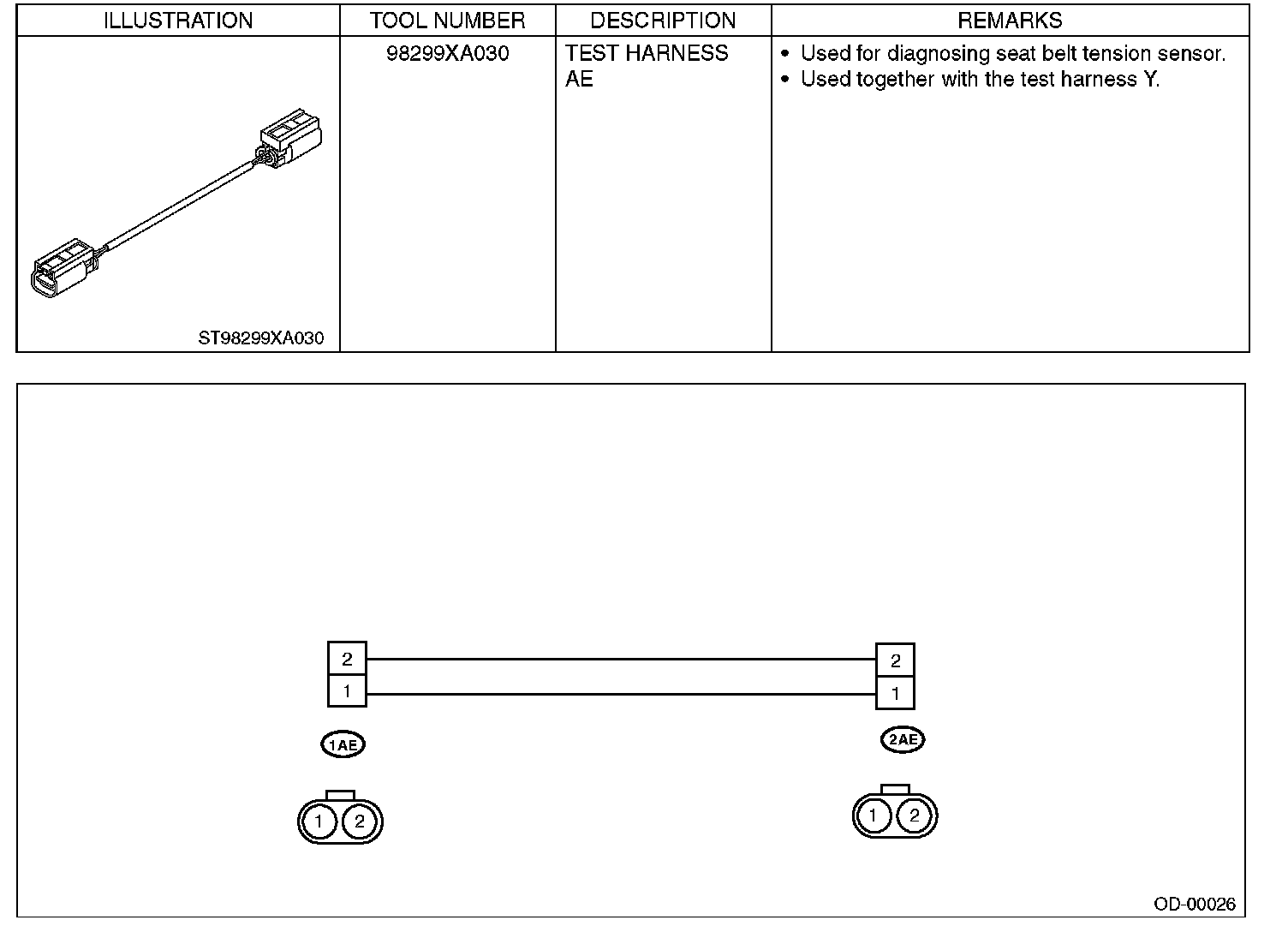

- TEST HARNESS AE

TEST HARNESS AE:

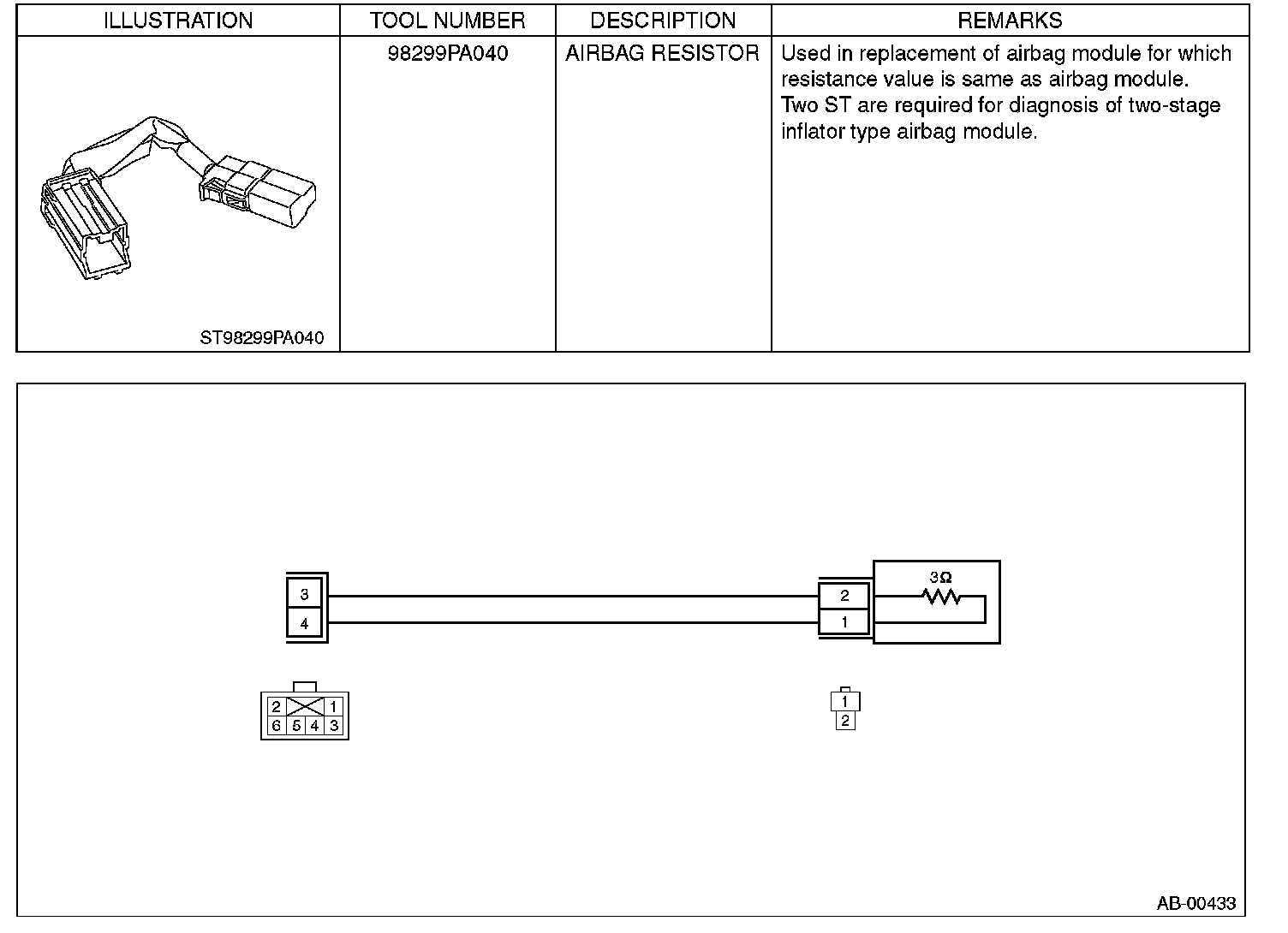

- AIRBAG RESISTOR

Airbag Resistor:

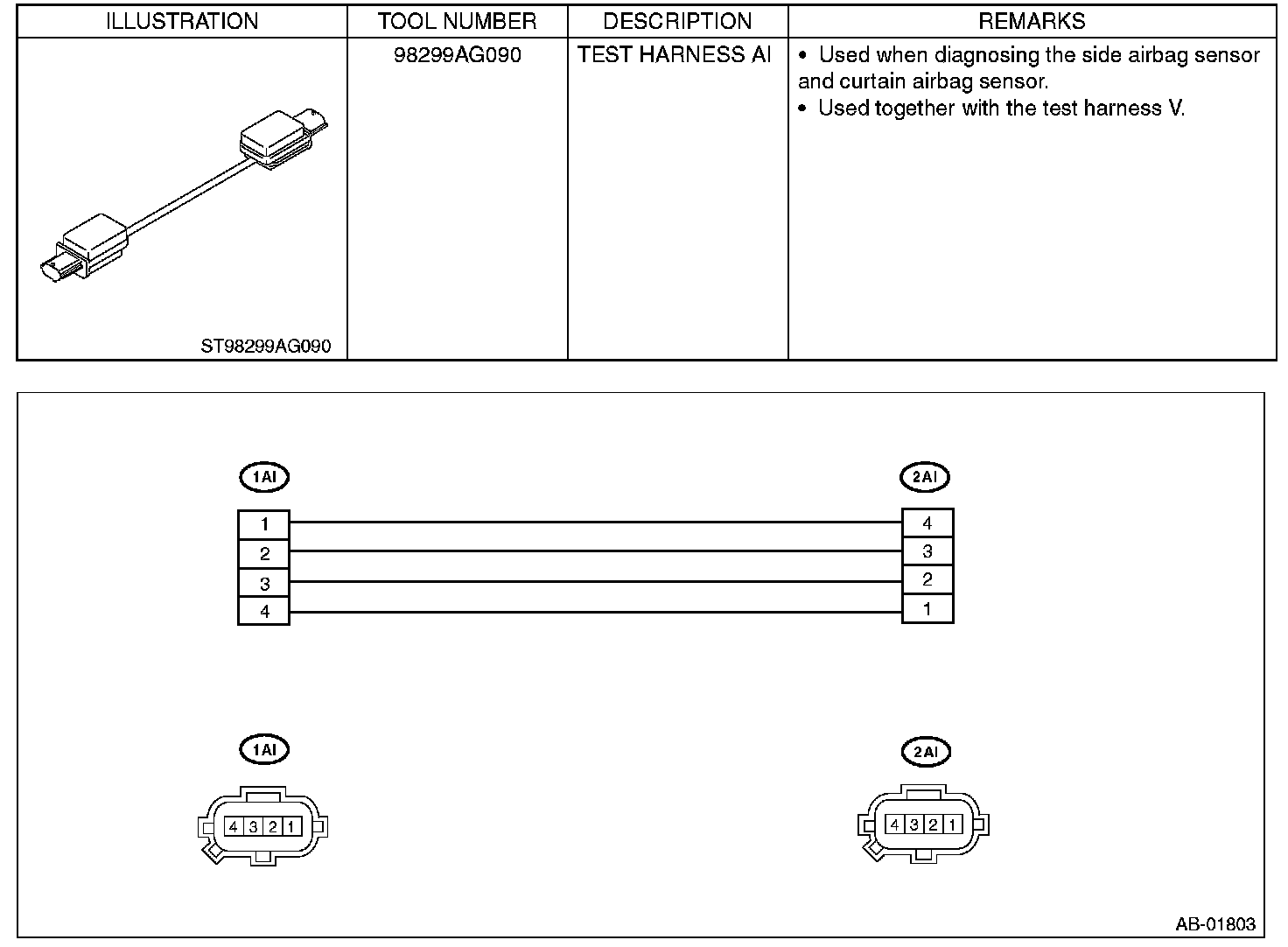

- TEST HARNESS AI

TEST HARNESS AI:

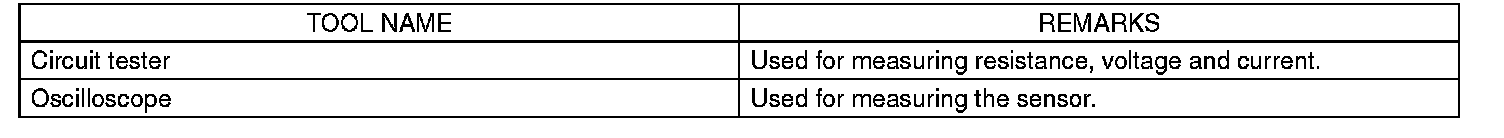

2. GENERAL TOOL
