Center Mounted Brake Lamp: Service and Repair

High-mounted Stop Light

REMOVAL
1. Disconnect the ground cable from the battery.
2. Remove the roof spoiler.

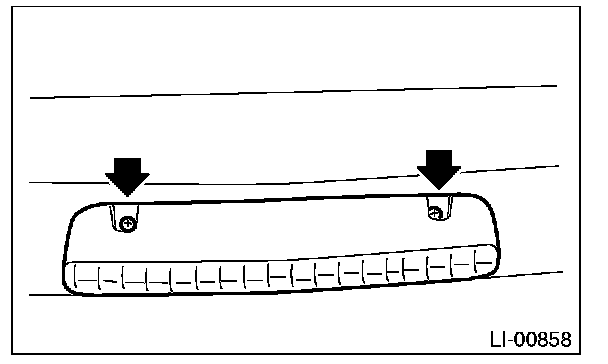

3. Remove the caps and screws, then detach the high-mounted stop light.






INSTALLATION
Install in the reverse order of removal.

Tightening torque: 1.5 N.m (0.15 kgf.m, 1.1 ft.lb)
