Seat Belt Systems: Tools and Equipment

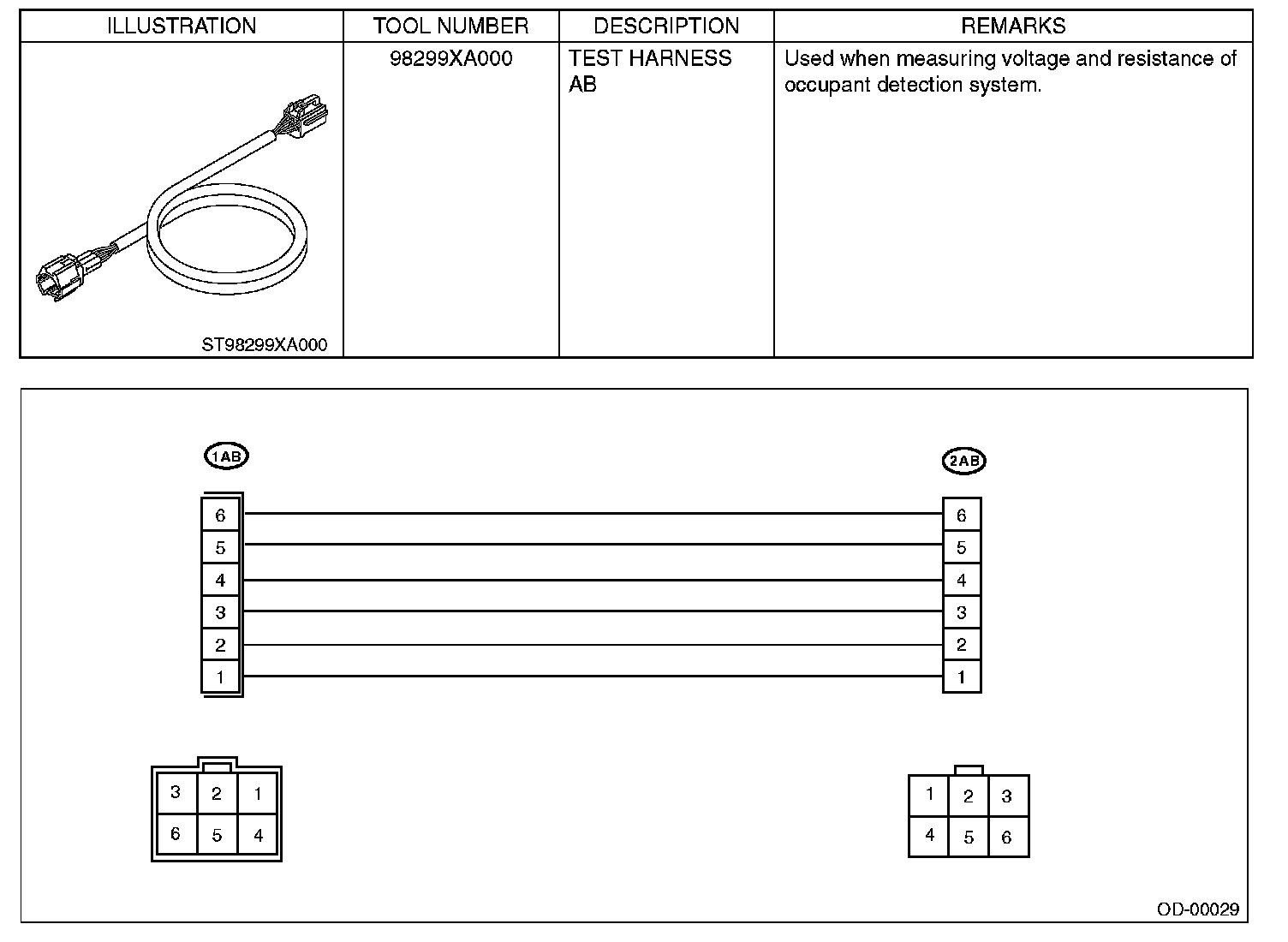

Test Harness AB:
Test Harness AE:
Test Harness AG:
System Overview Schematic:

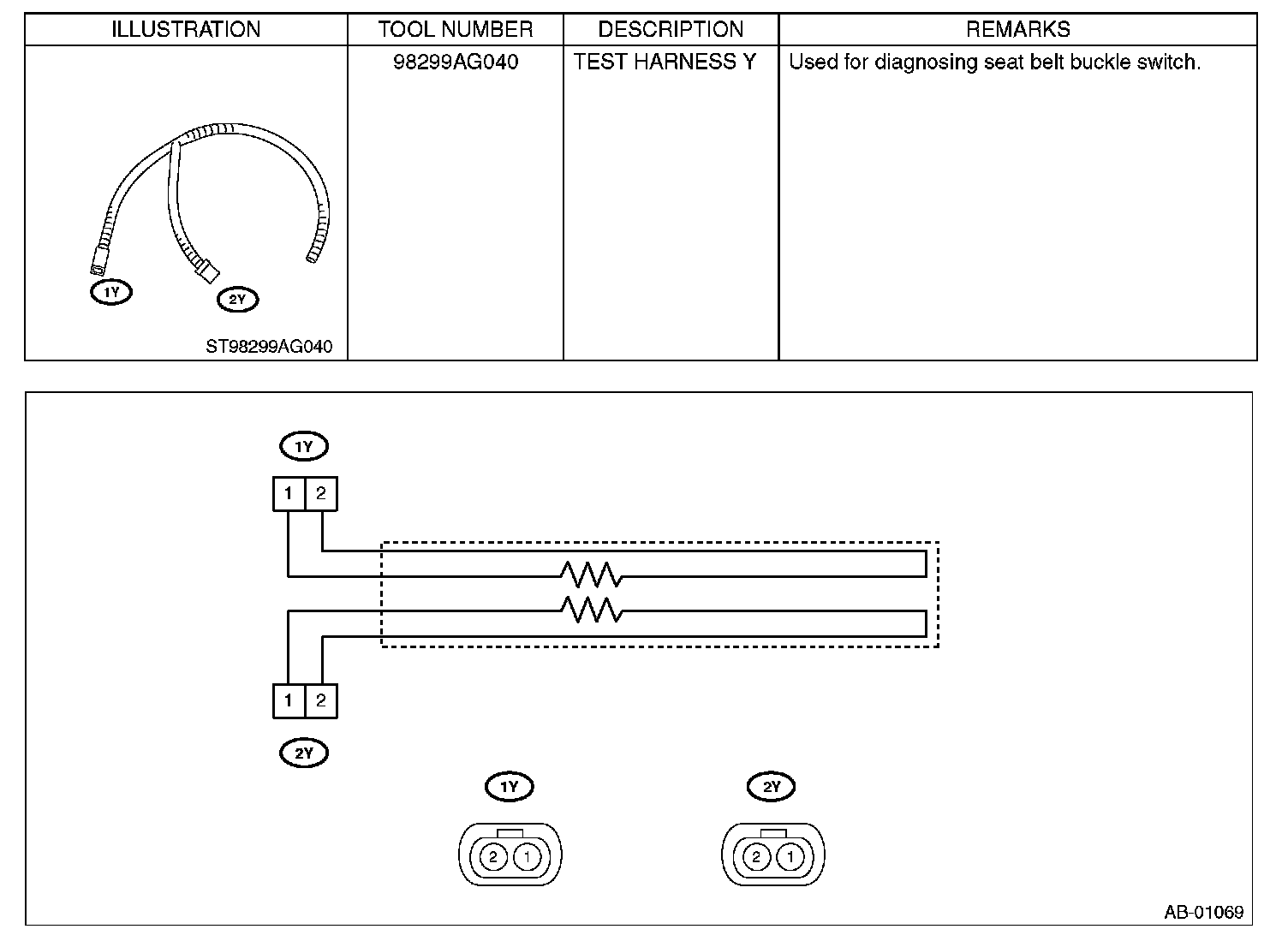

Test Harness Y:

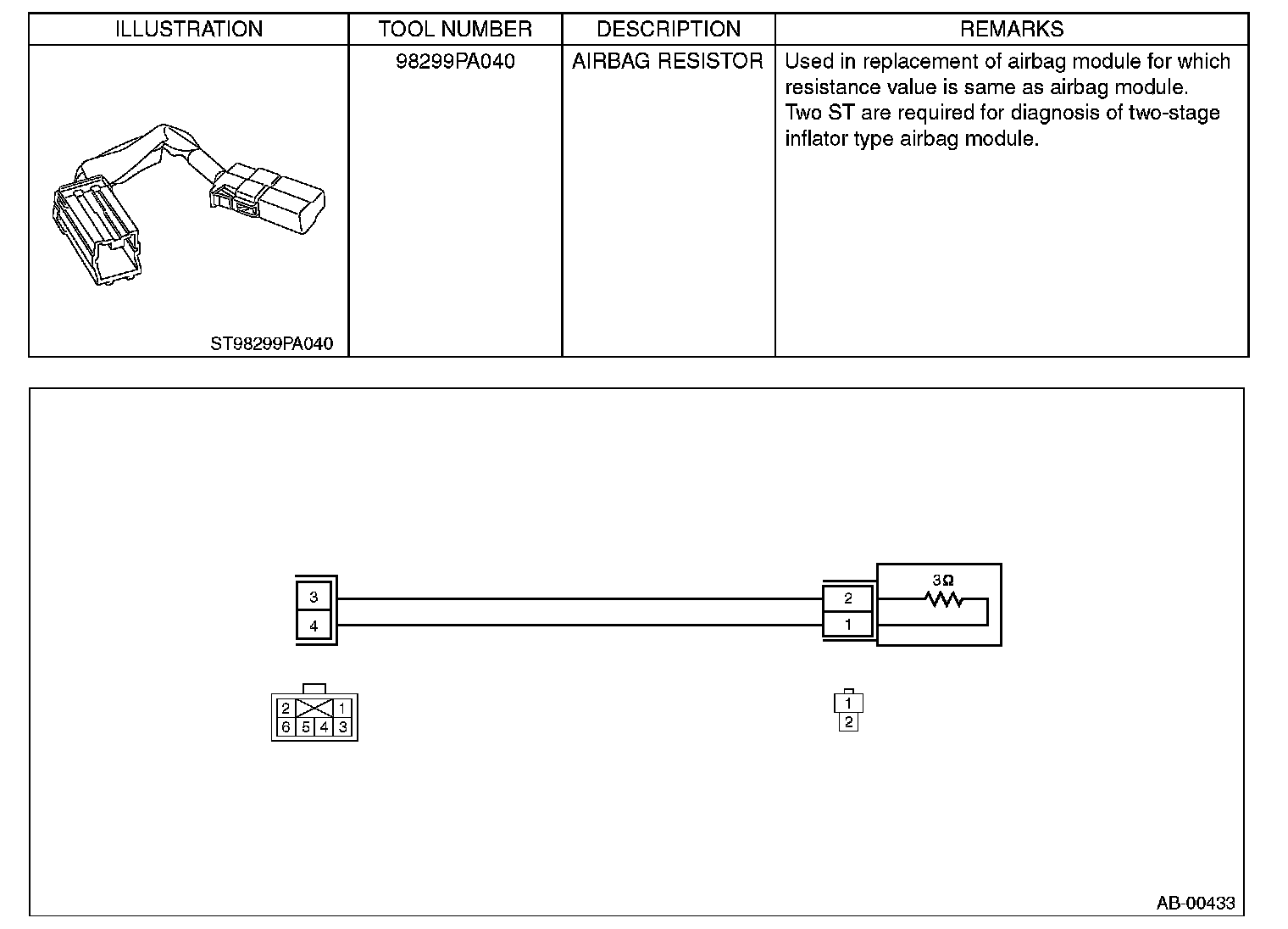

Airbag Resistor:

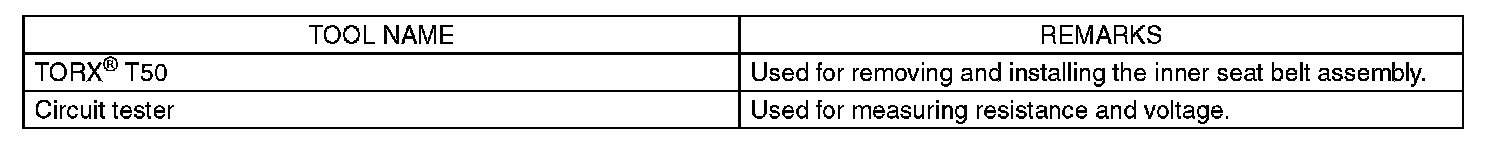

General Tool:
