Clock: Testing and Inspection

Clock System

INSPECTION

1. SYMPTOM CHART

Symptom Chart:

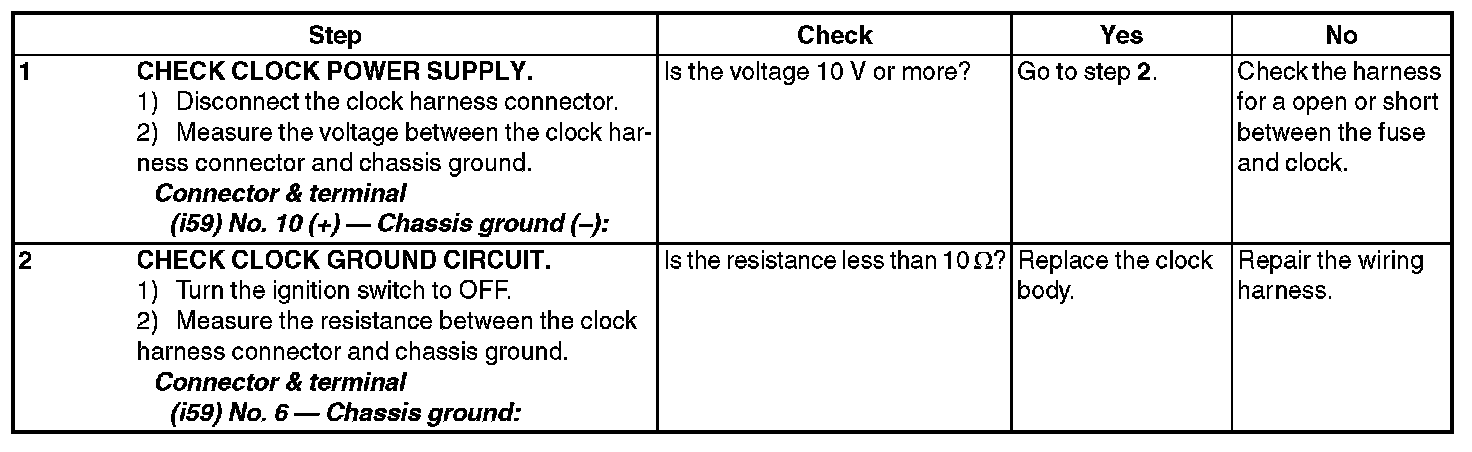

2. CHECK POWER SUPPLY AND GROUND CIRCUIT

Step 1-2:

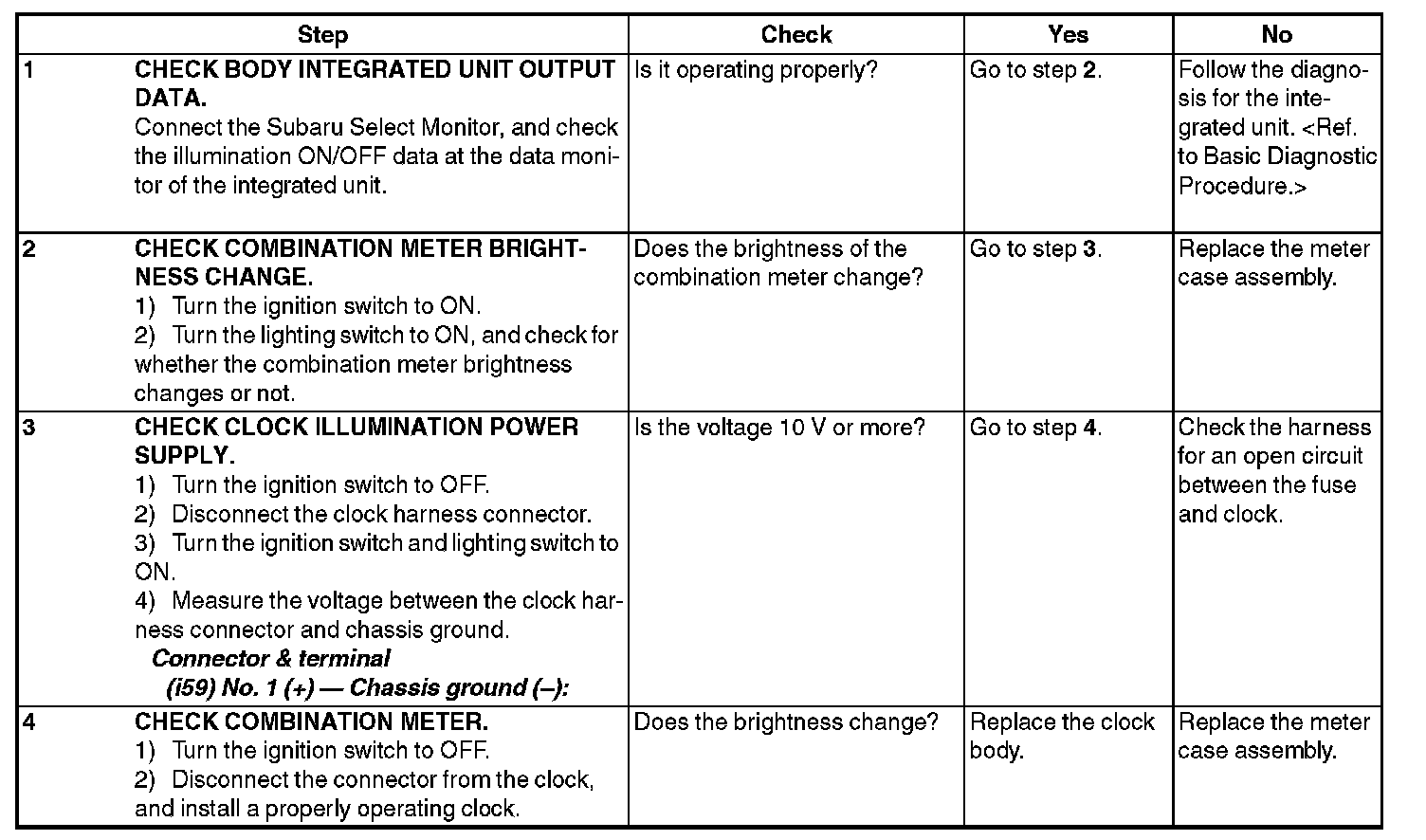

3. CHECK ILLUMINATION CIRCUIT

Step 1-4:

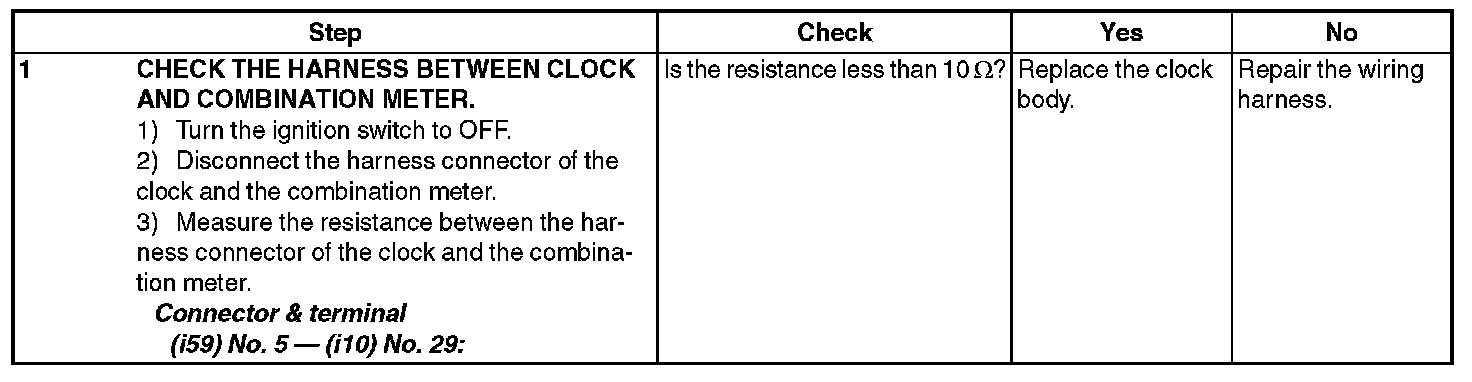

4. CHECK CLOCK SYSTEM COMMUNICATION CIRCUIT

Step 1:

5. CHECK AMBIENT TEMPERATURE METER SYSTEM COMMUNICATION CIRCUIT

Step 1-6:

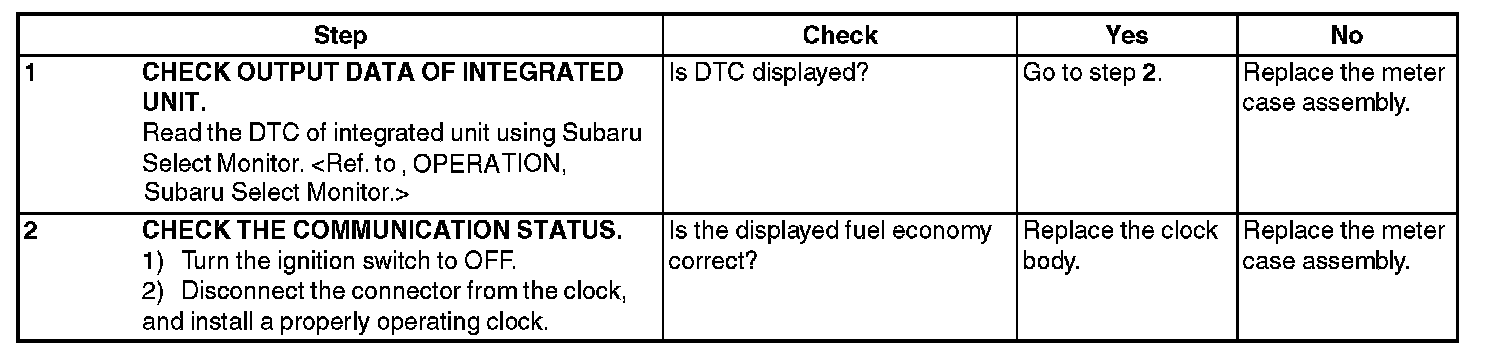

6. CHECK AVERAGE FUEL ECONOMY SYSTEM COMMUNICATION CIRCUIT

Step 1-2:
