Center Mounted Brake Lamp: Service and Repair

High-mounted Stop Light

REMOVAL

1. Disconnect the ground cable from the battery.

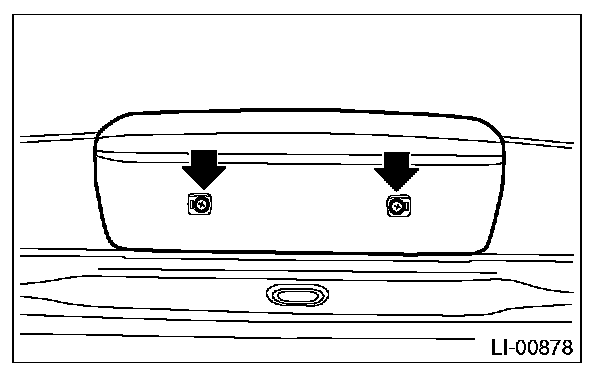

2. Remove the caps and screws, then detach the high-mounted stop light cover.

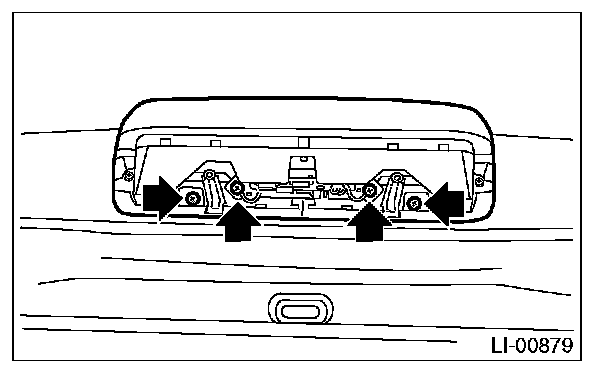

3. Remove the screws, then detach the high-mounted stop light.






INSTALLATION

Install in the reverse order of removal.

Tightening torque: 1.5 N.m (0.15 kgf.m, 1.1 ft.lb)
