Key Cylinder Lamp: Service and Repair

Ignition Switch Illumination

REMOVAL

1. Disconnect the ground cable from the battery.

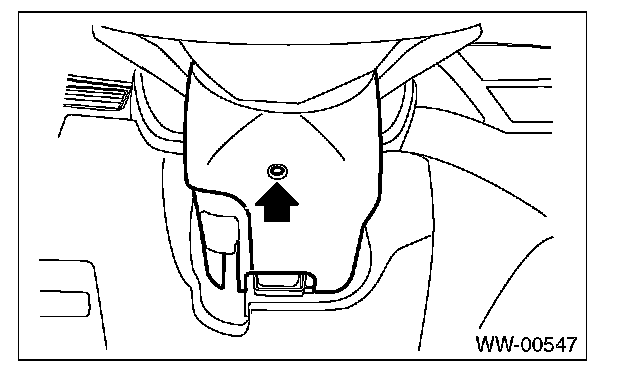

2. Remove the screw and steering lower cover.

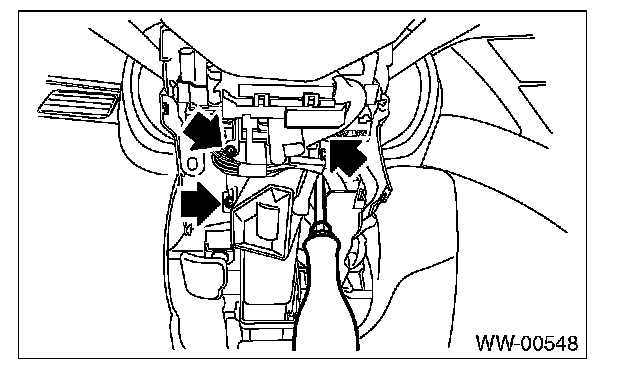

3. Remove the screws and steering upper cover.






4. Remove the instrument panel lower cover.

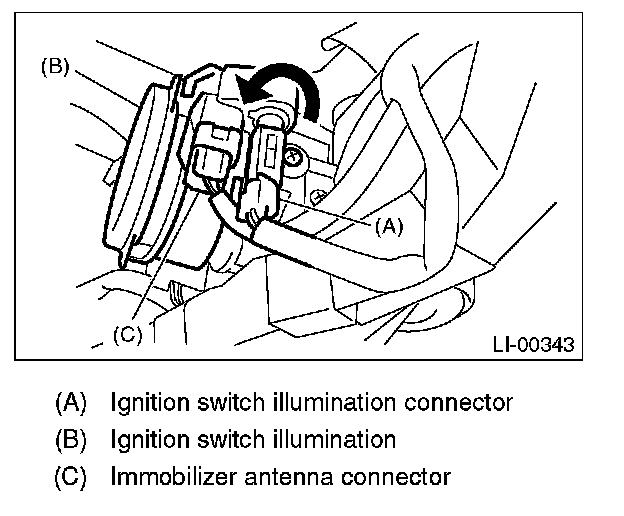

5. Disconnect the ignition switch illumination connector (A).
6. Turn the ignition switch illumination connector to the left and disconnect it.






INSTALLATION

Install in the reverse order of removal.
