C0051

DTC C0051 VALVE RELAY

DTC DETECTING CONDITION:

Defective valve relay

TROUBLE SYMPTOM:

- ABS does not operate.
- EBD does not operate.
- VDC does not operate.

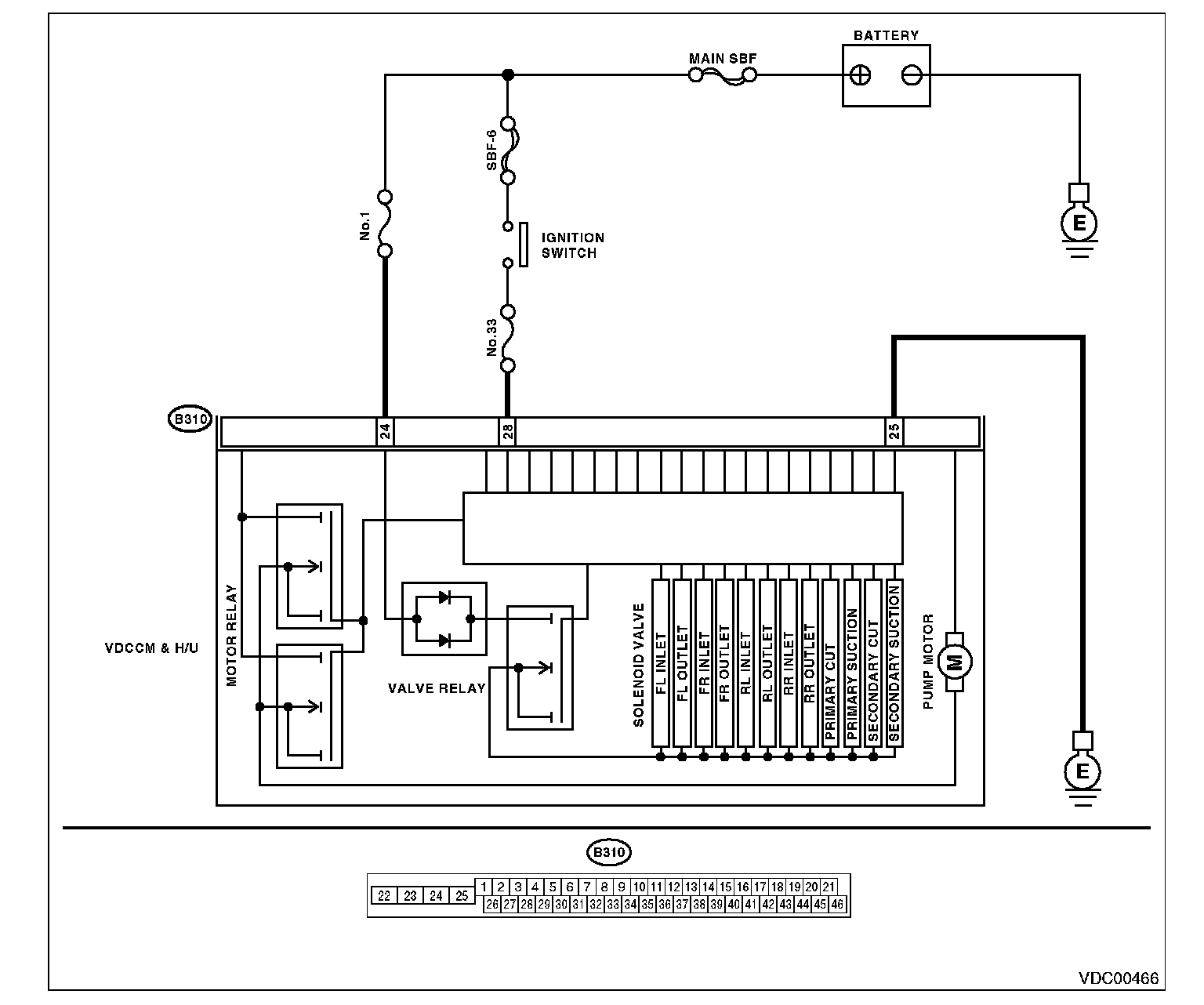

WIRING DIAGRAM:

WIRING DIAGRAM:

Step 1-Step 7:
