C0054 BLS ON Malfunction

DTC C0054 BLS ON MALFUNCTION

DTC DETECTING CONDITION:
Defective stop light switch

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

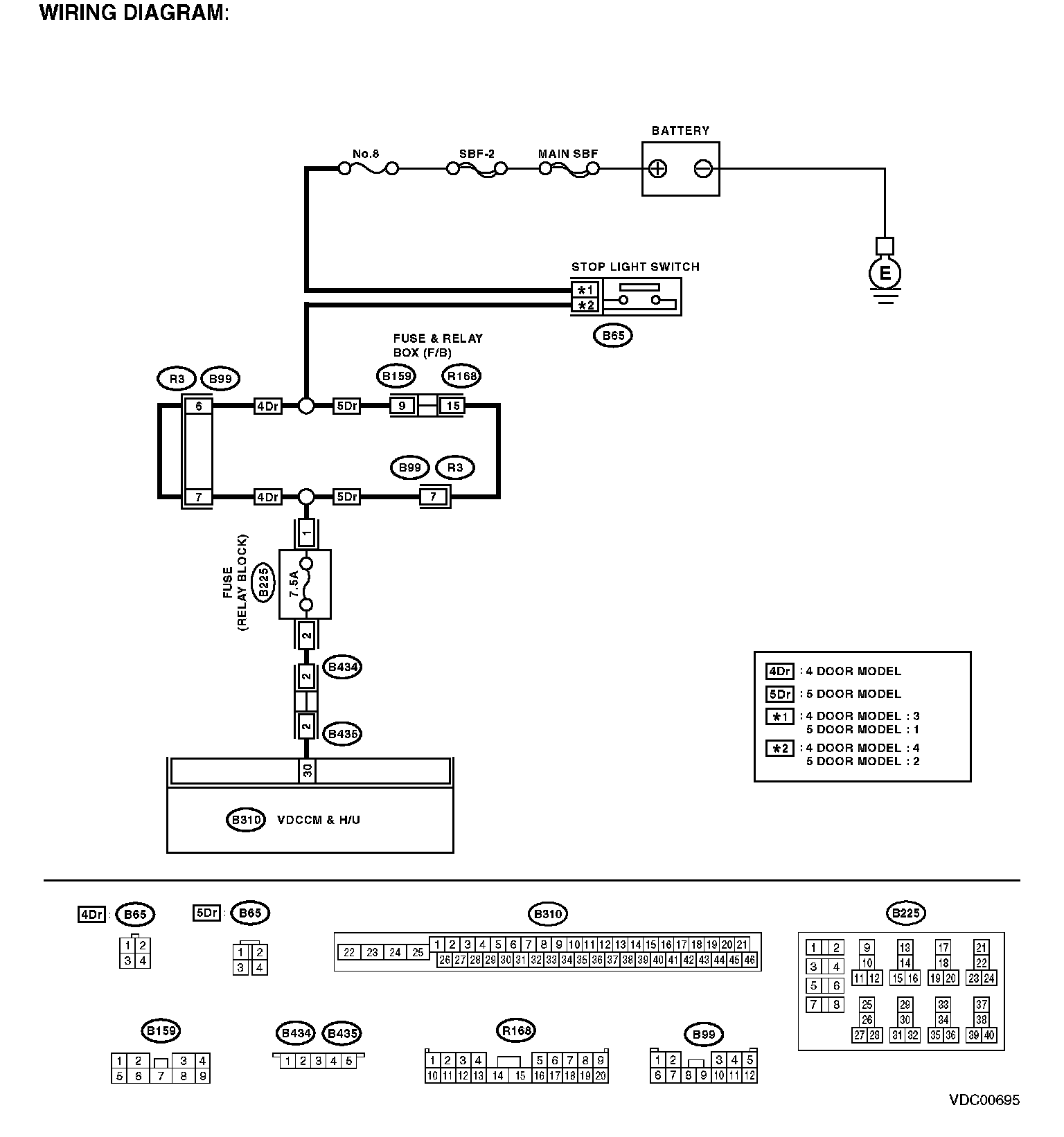

WIRING DIAGRAM:

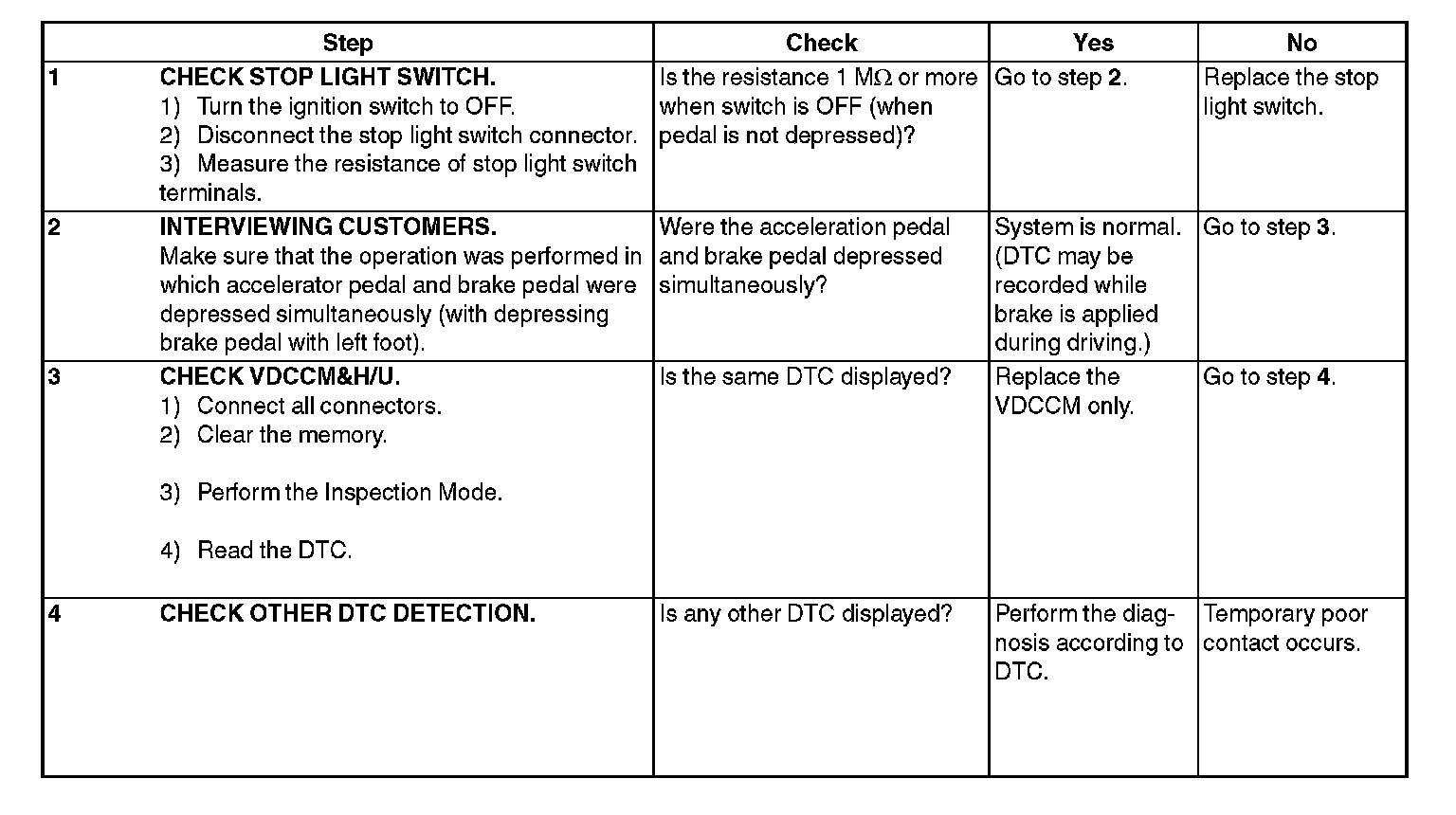

Step 1-Step 4:
