Seats: Testing and Inspection

POWER SEAT SYSTEM

INSPECTION

2. TROUBLE SYMPTOM

- Driver's side







3. CHECK SWITCH
Move each switch and measure the resistance between connector terminals.

- Power seat switch

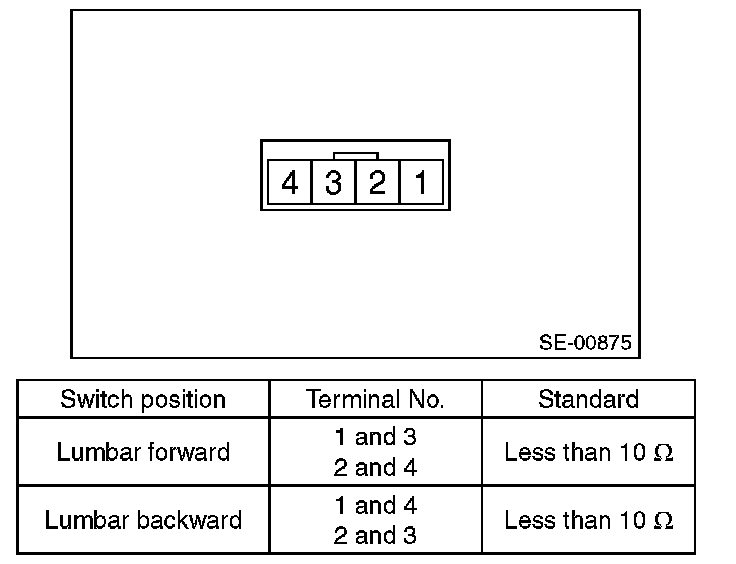

- Lumbar switch







4. ALL FUNCTION FAILS TO OPERATE







5. SOME OF THE MOTORS DO NOT OPERATE (DRIVER'S SEAT)

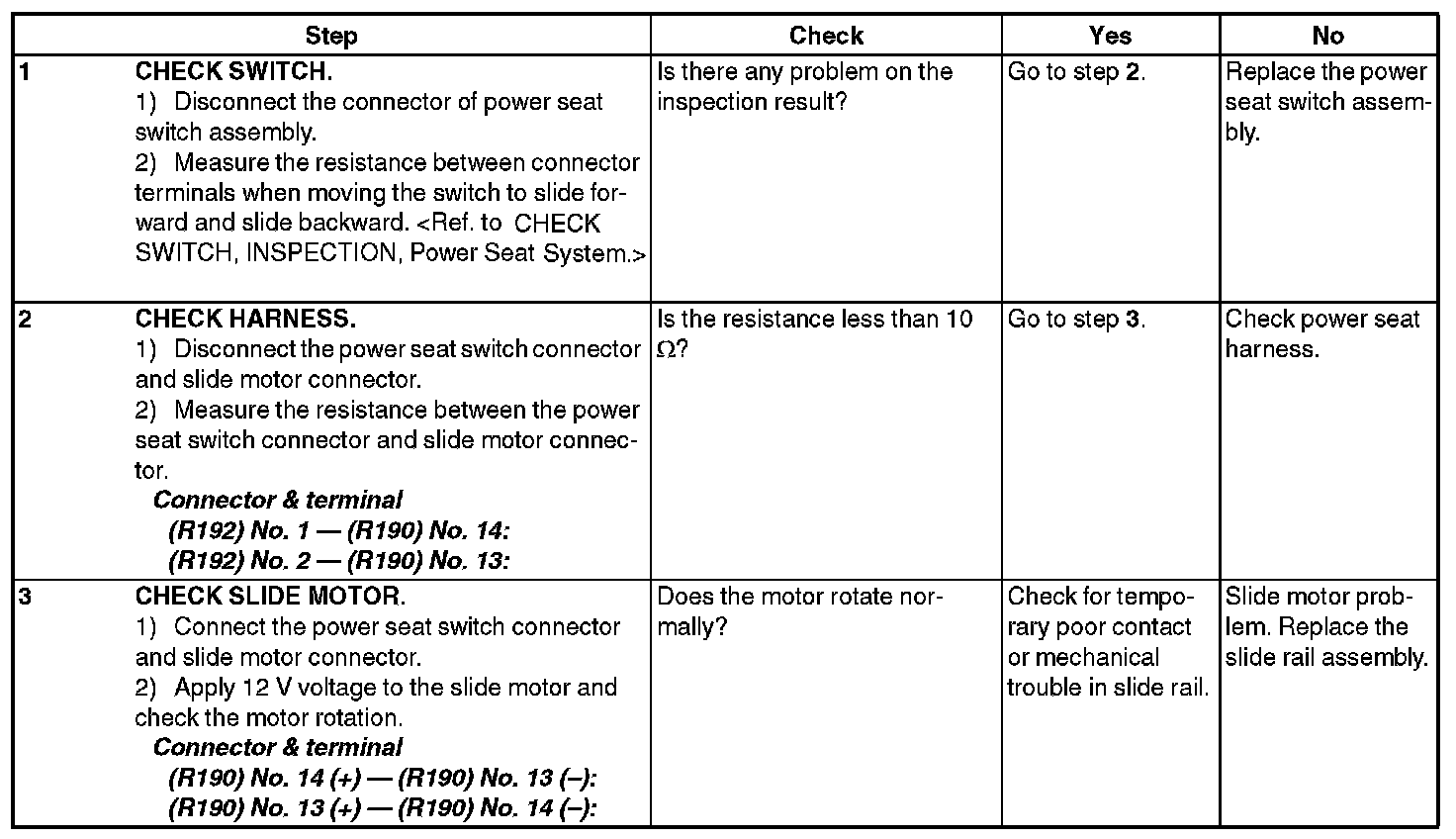

- Malfunction of slide operation

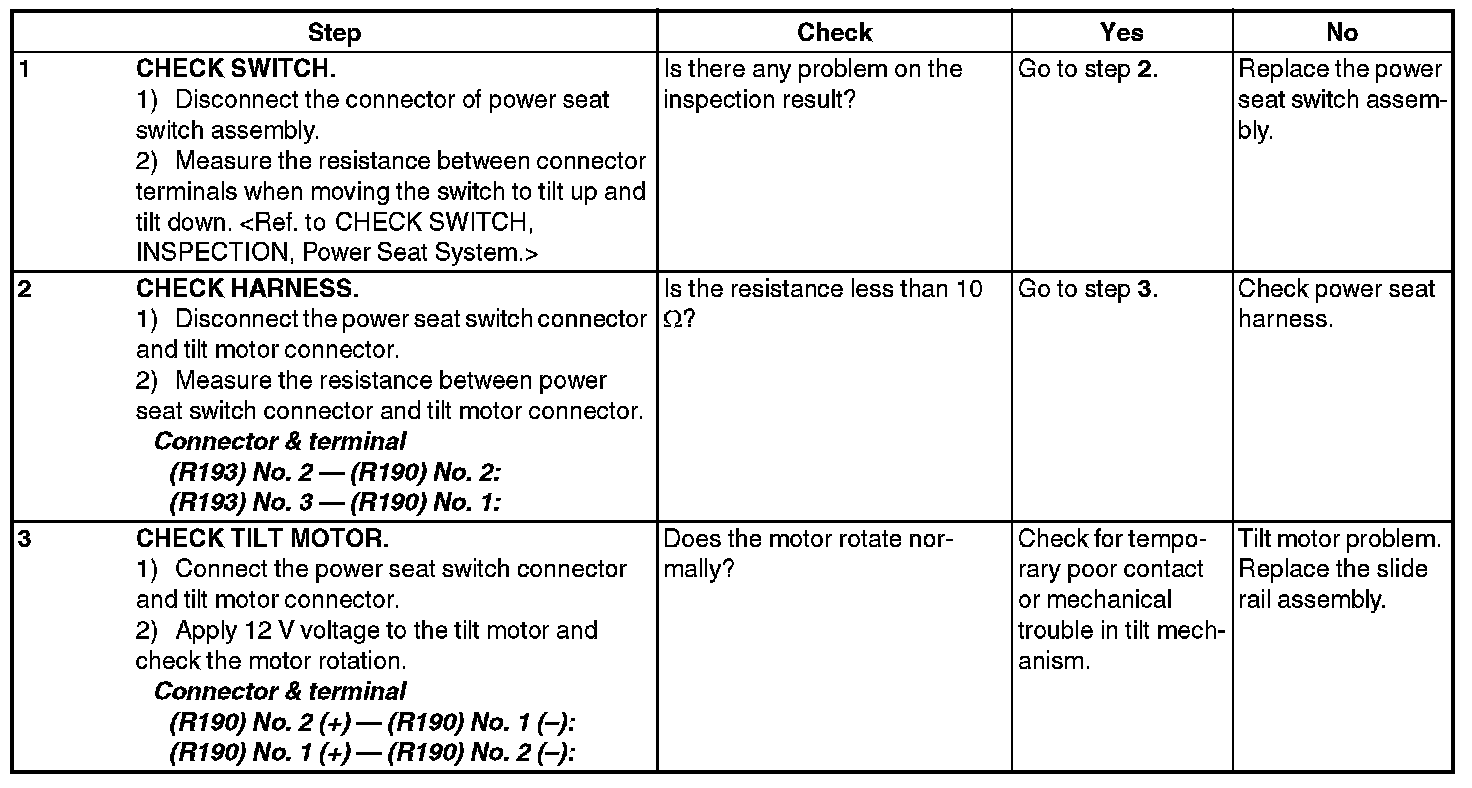

- Malfunction of tilt operation







- Malfunction of lifter operation







- Malfunction of reclining operation







- Malfunction of lumbar operation
