B27-B445 & AB1-AB9
B27-B445 & AB1-AB9
Bulkhead Wiring Harness (In Compartment)

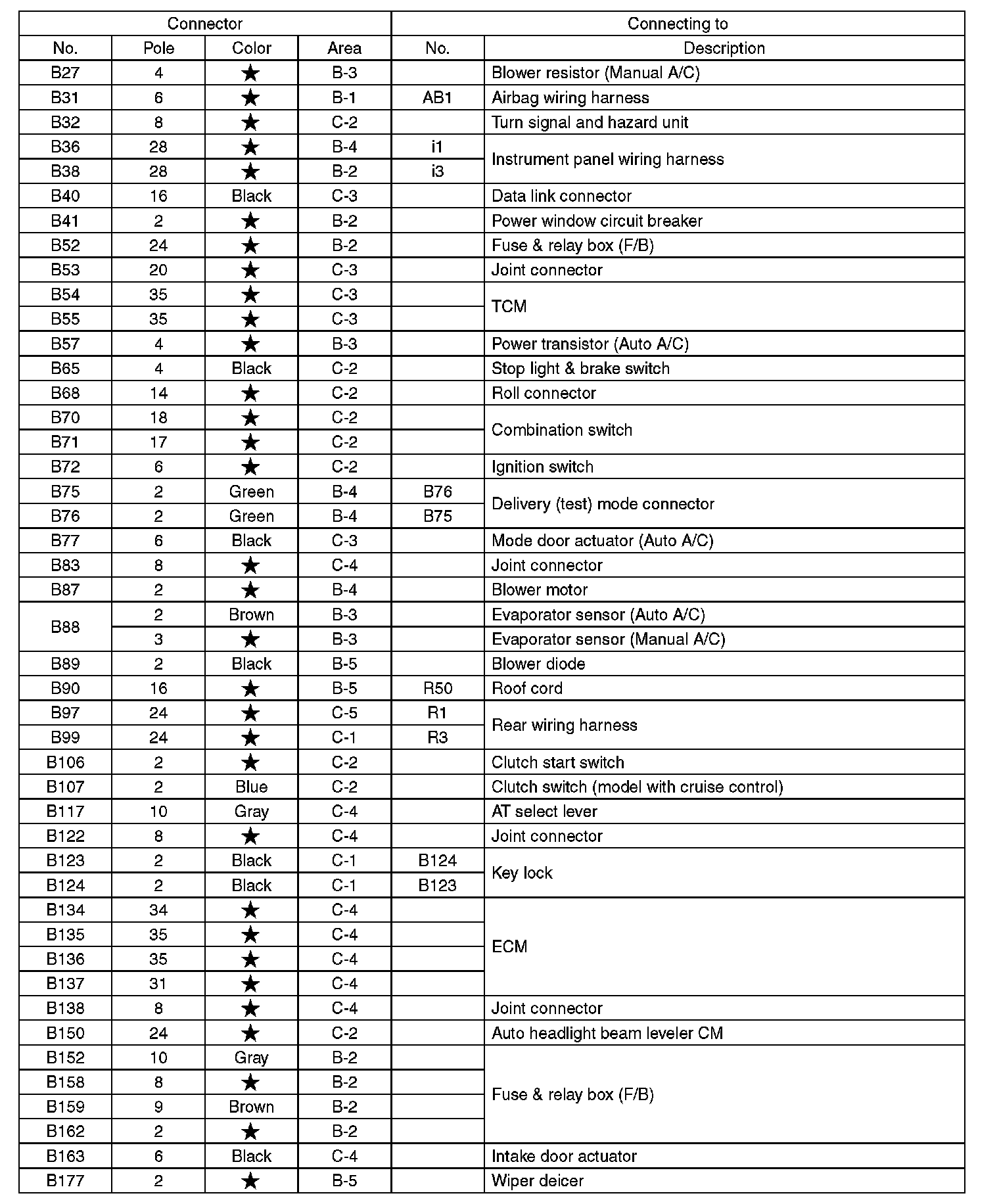

B27-B177:

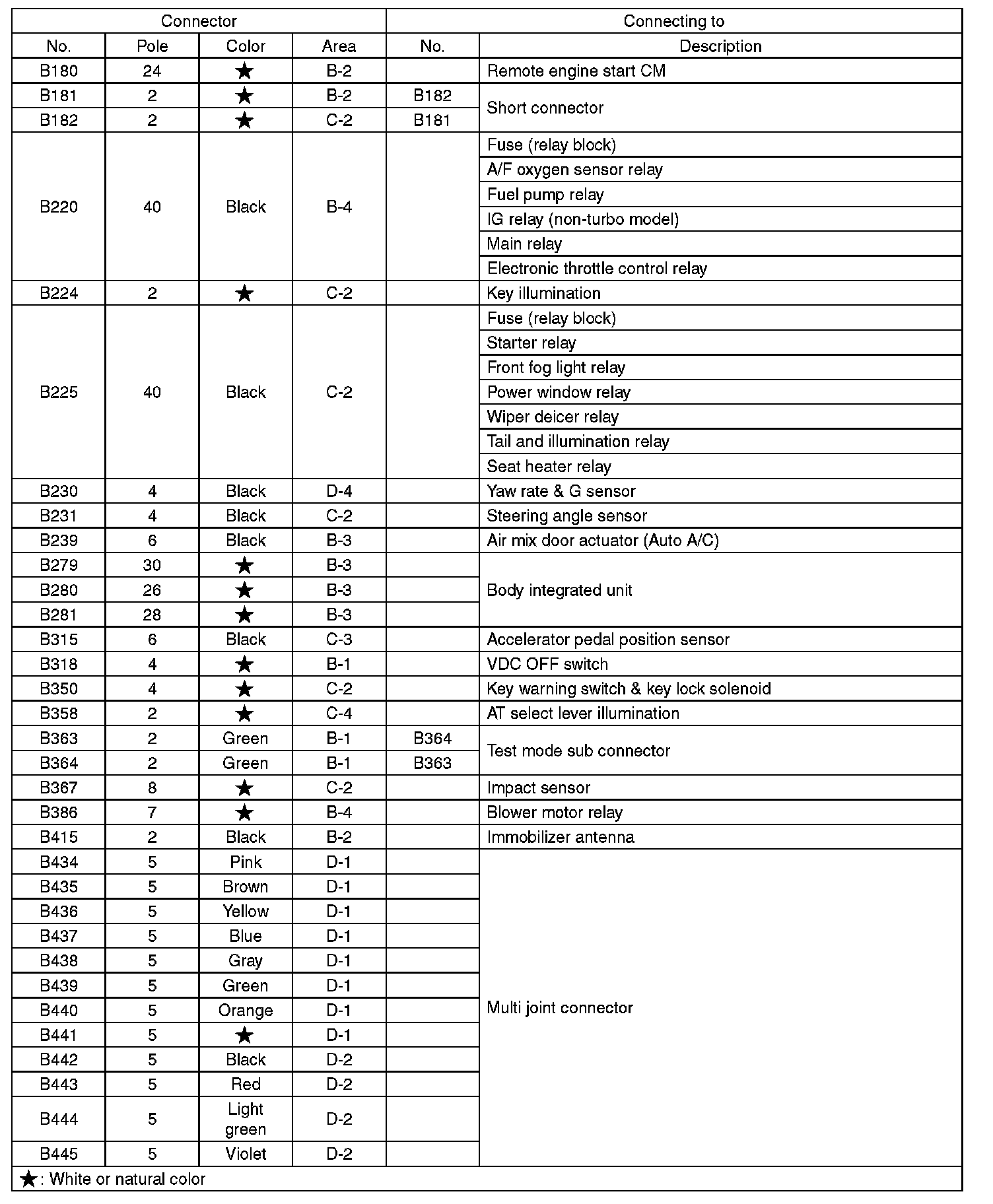

B180-B445:

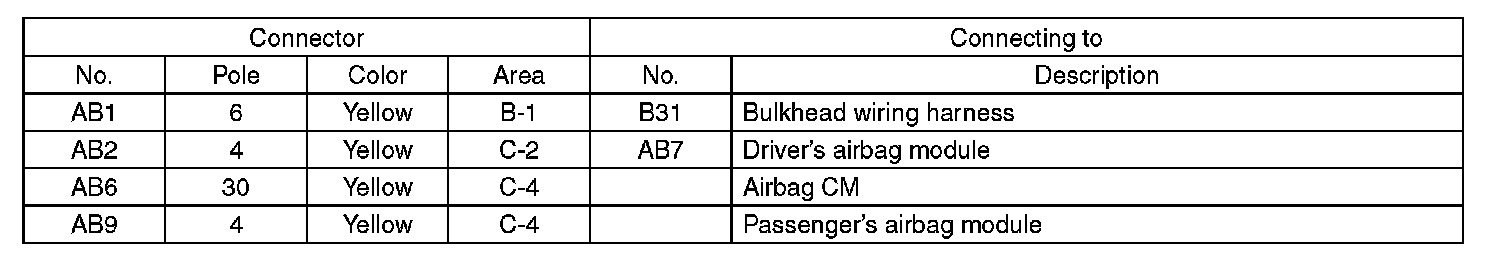

AB1-AB9:
Area View:
