Component Tests and General Diagnostics

Auto Headlight Beam Leveler System

INSPECTION

SYMPTOM CHART

- Beam level control does not function

Step 1-6:

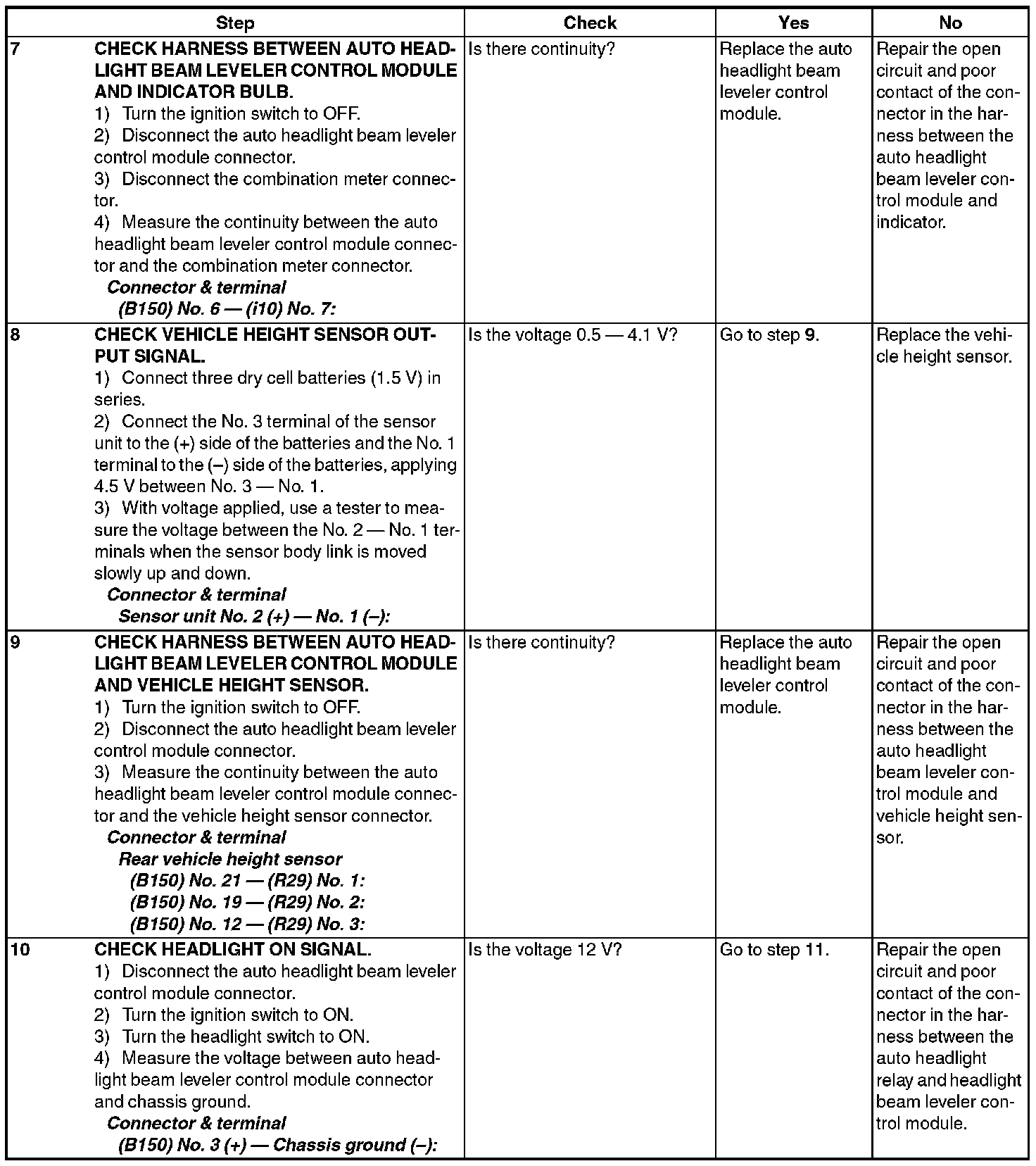

Step 7-10:

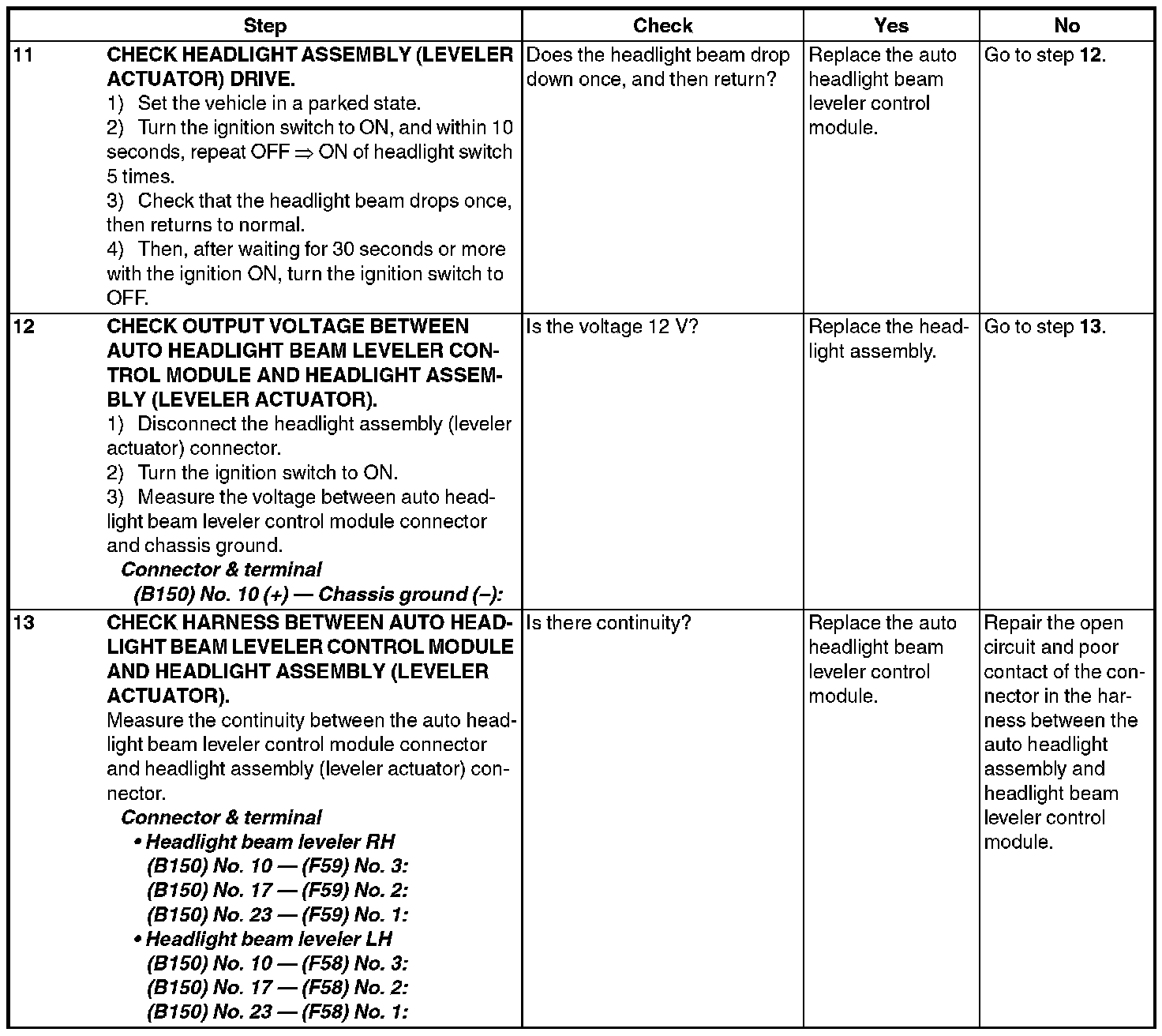

Step 11-13:
