Pinout Values and Diagnostic Parameters

Auto Headlight Beam Leveler System

SPECIFICATION

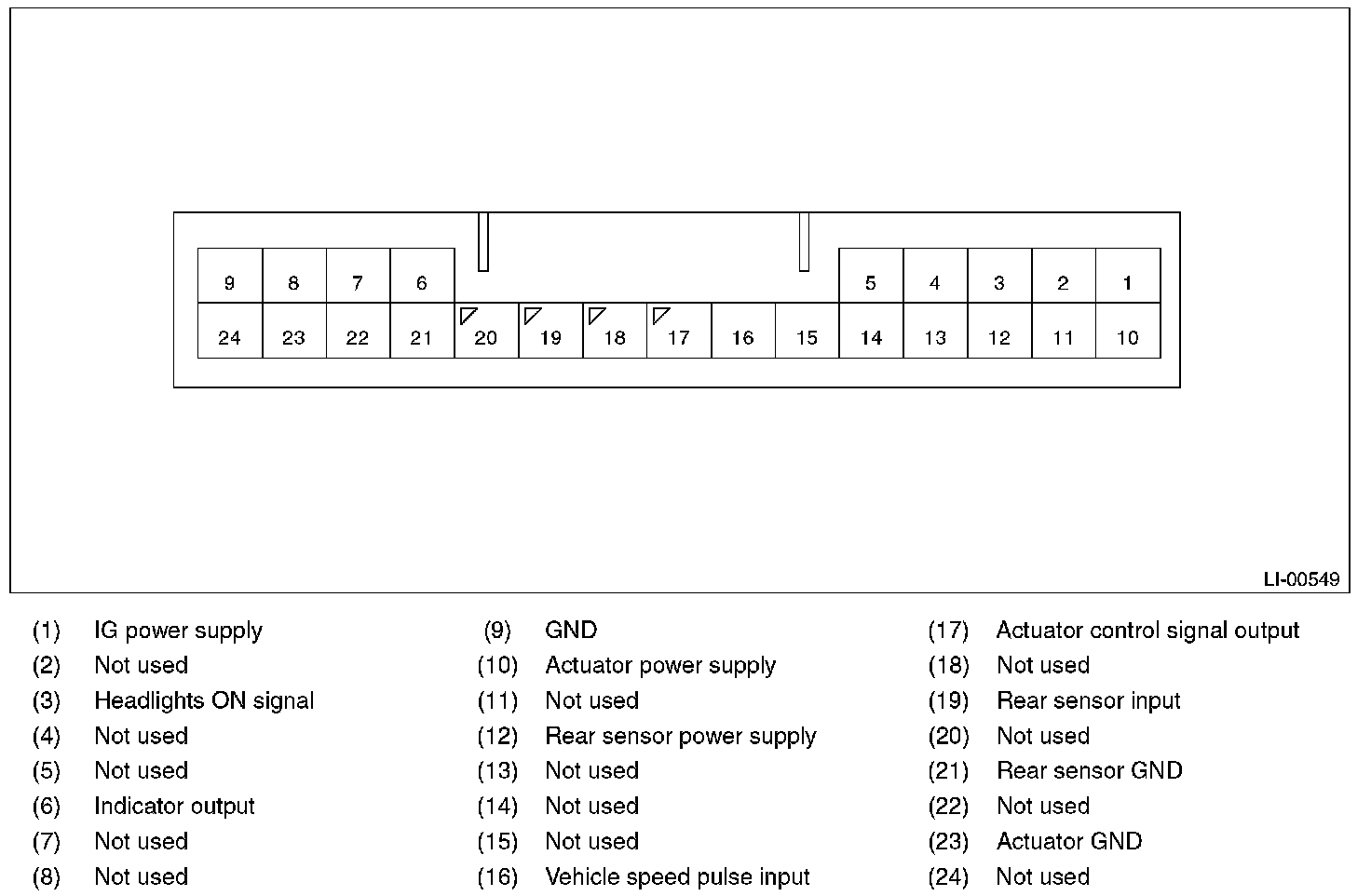

1. ECM CONNECTOR TERMINAL LAYOUT

2. VEHICLE HEIGHT SENSOR UNIT TERMINAL LAYOUT
