Engine

Electrical Component Location

LOCATION

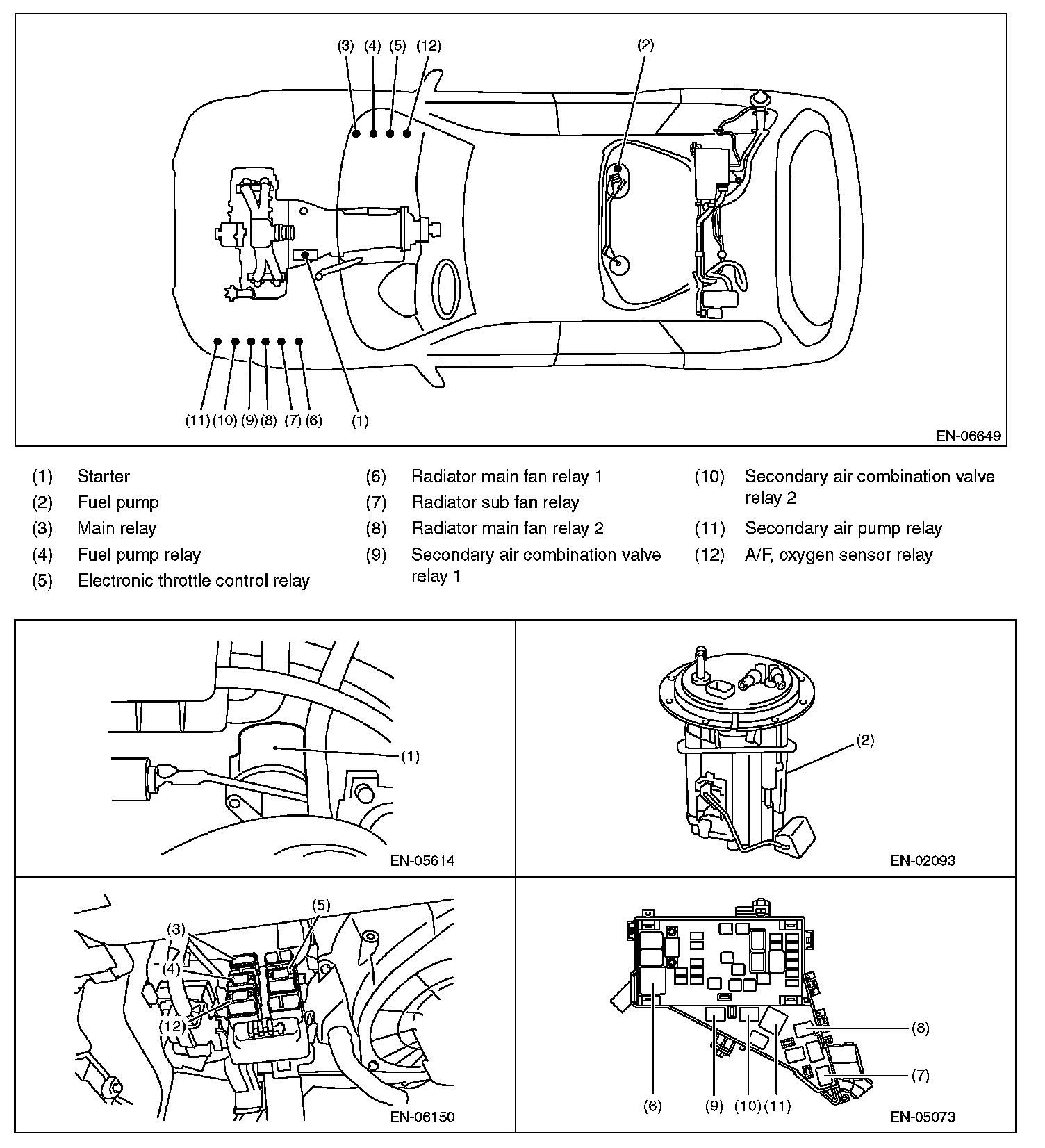

CONTROL MODULE

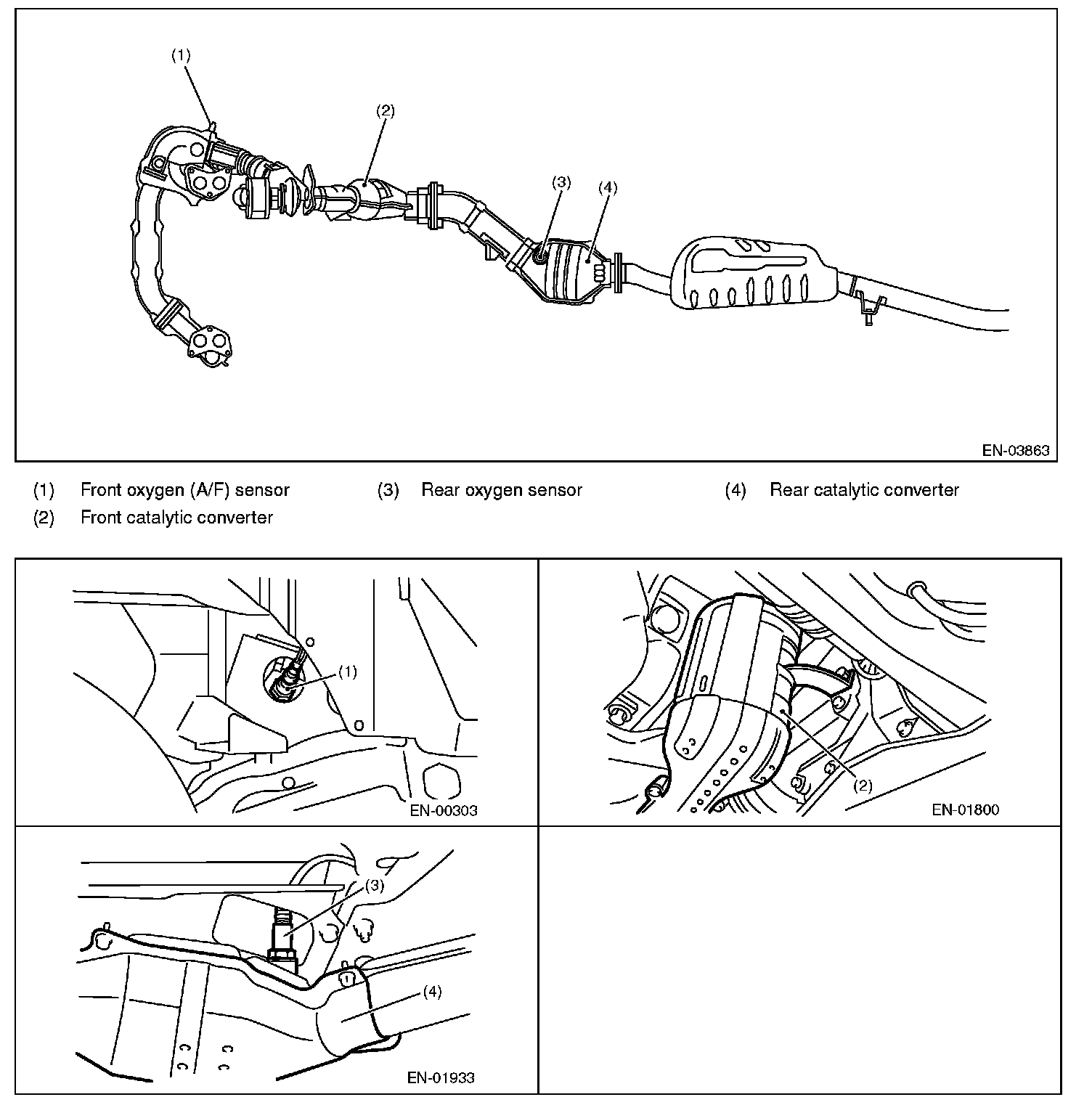

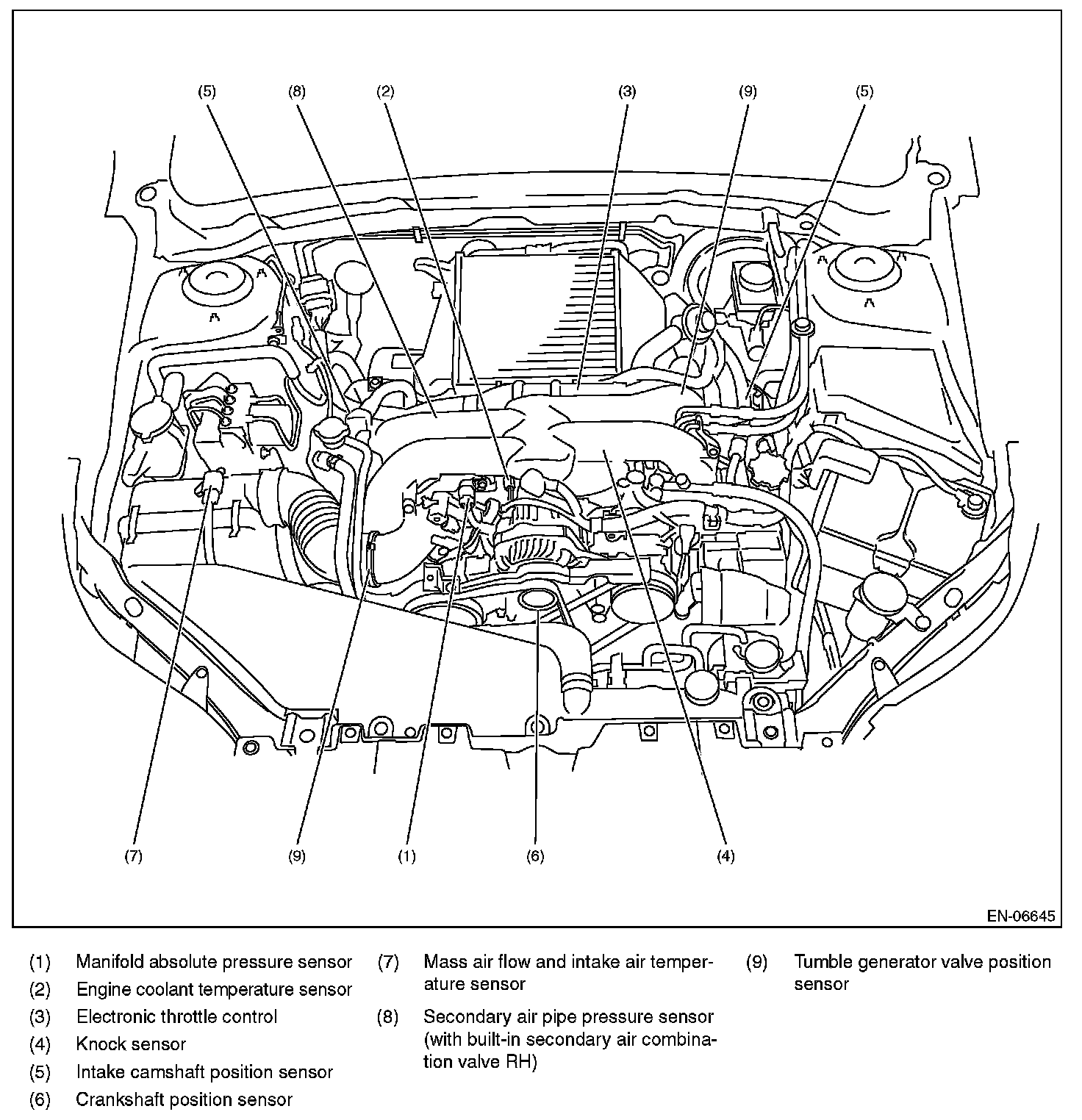

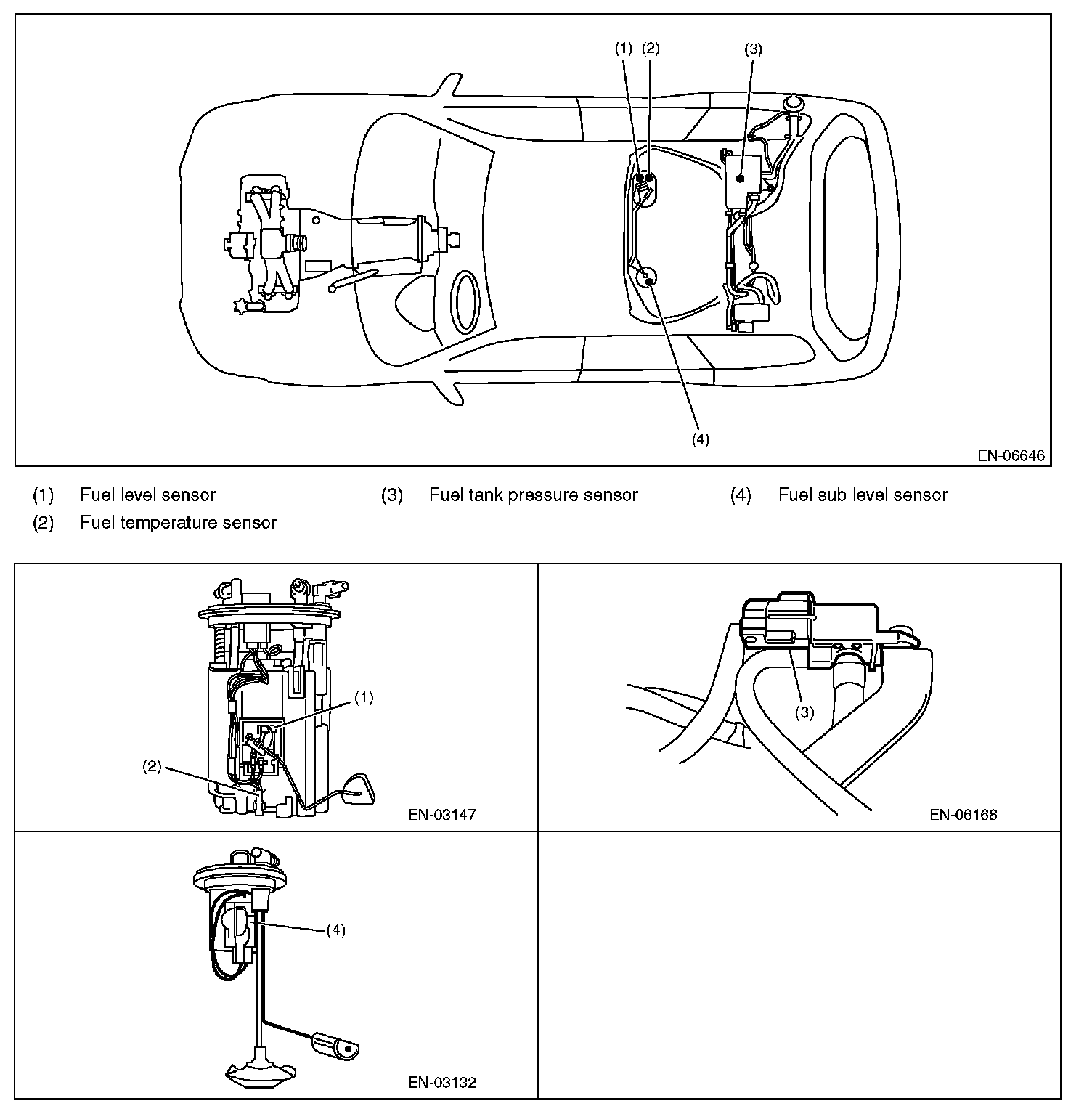

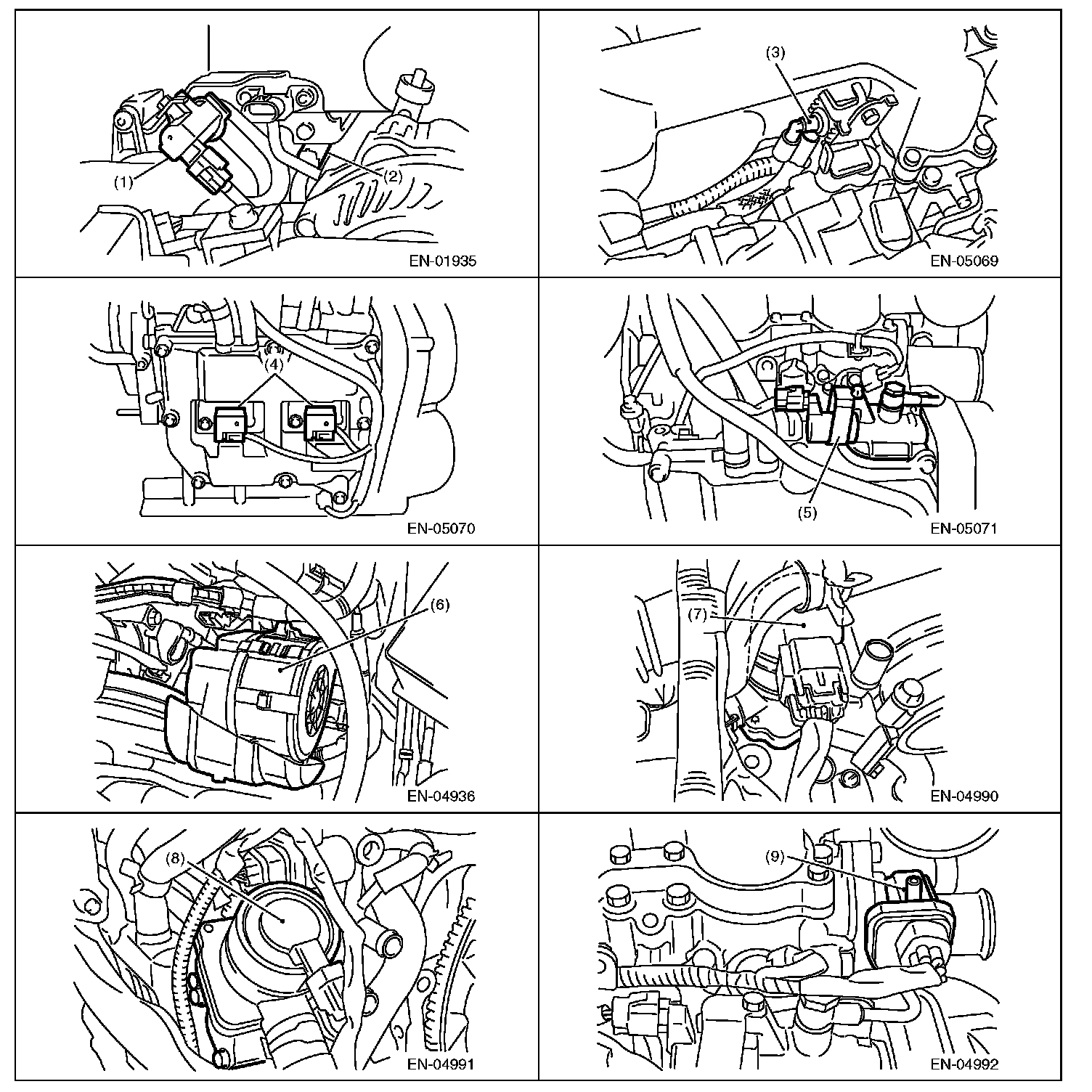

SENSOR

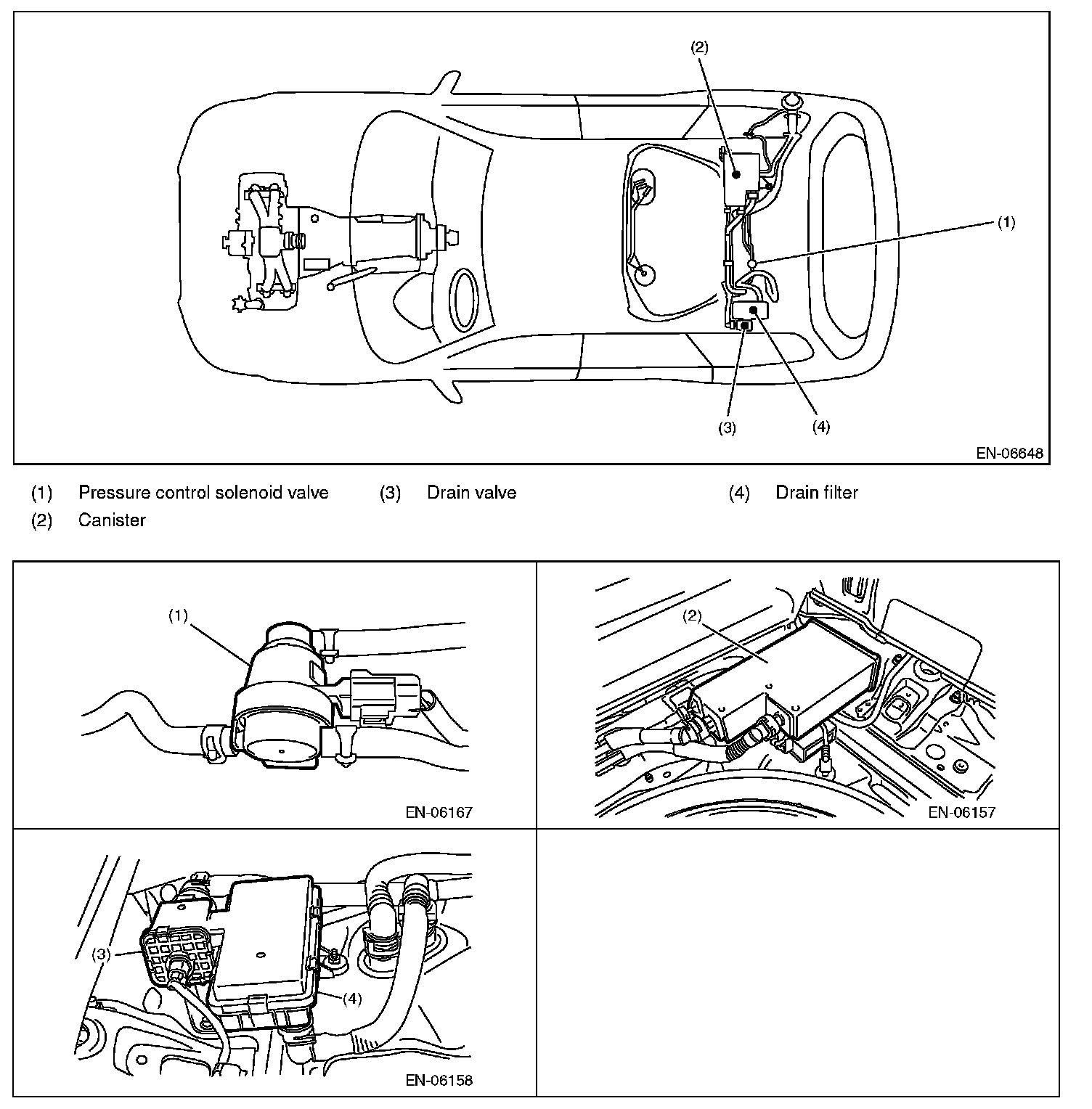

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
