Air Bag Systems: Specifications

General Description

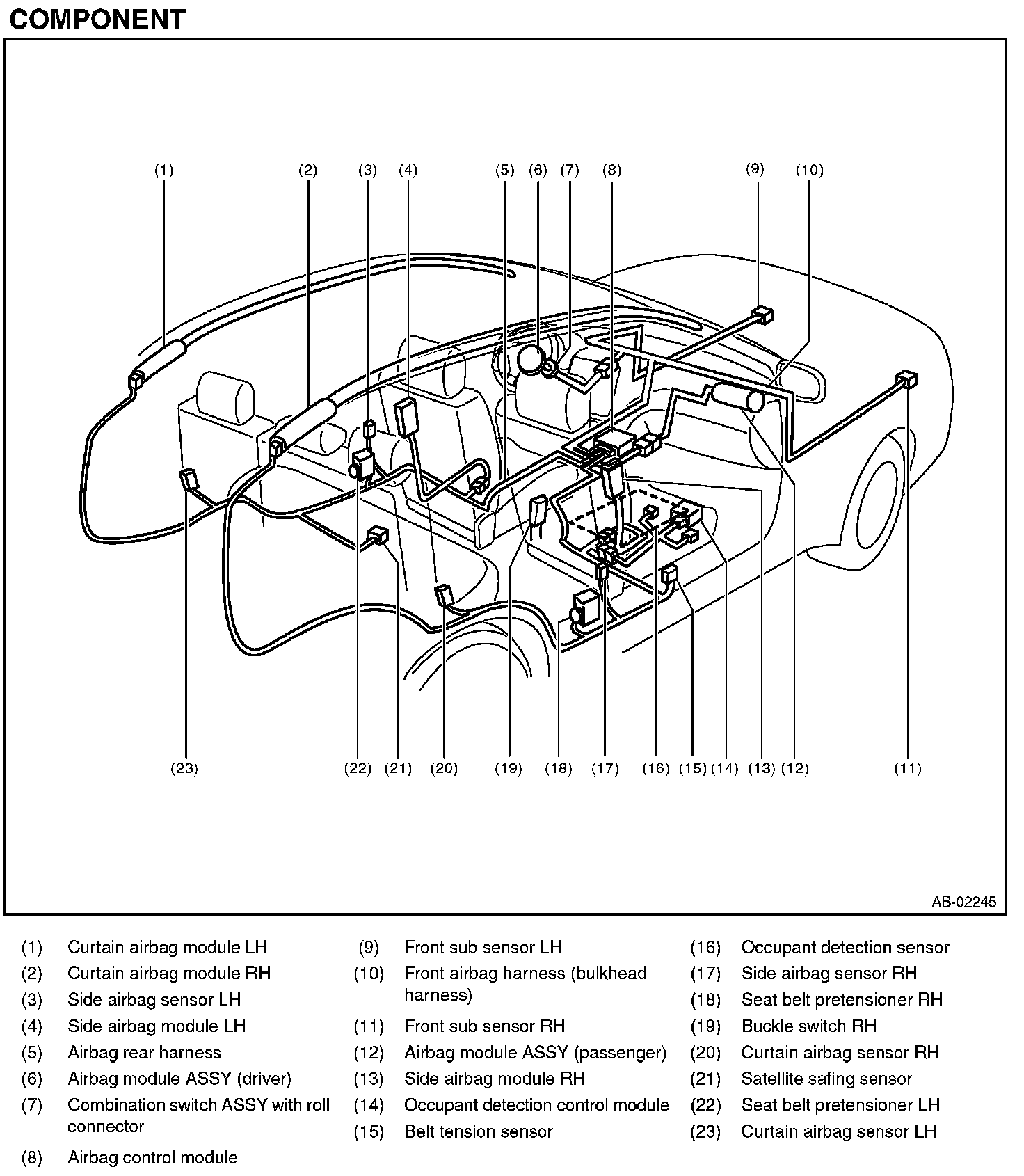

COMPONENT

1. DRIVER'S AIRBAG MODULE

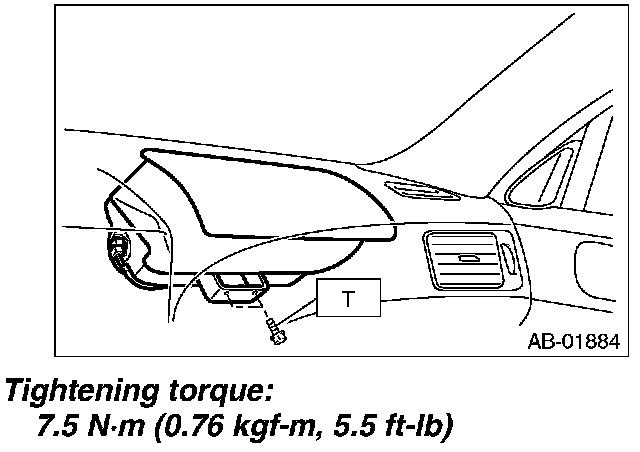

2. PASSENGER'S AIRBAG MODULE

3. SIDE AIRBAG MODULE

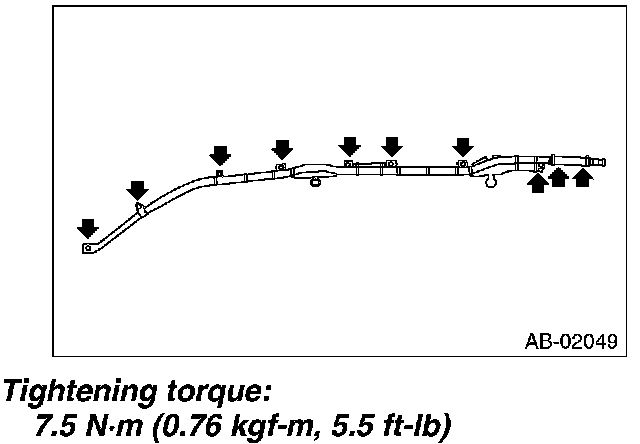

4. CURTAIN AIRBAG MODULE

5. AIRBAG CONTROL MODULE

CAUTION: Do not reuse mounting bolts and nuts.

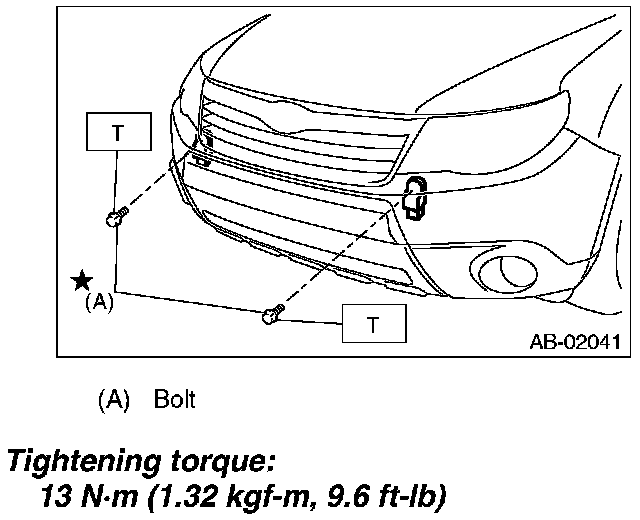

6. FRONT SUB SENSOR

CAUTION: Do not reuse mounting bolts and nuts.

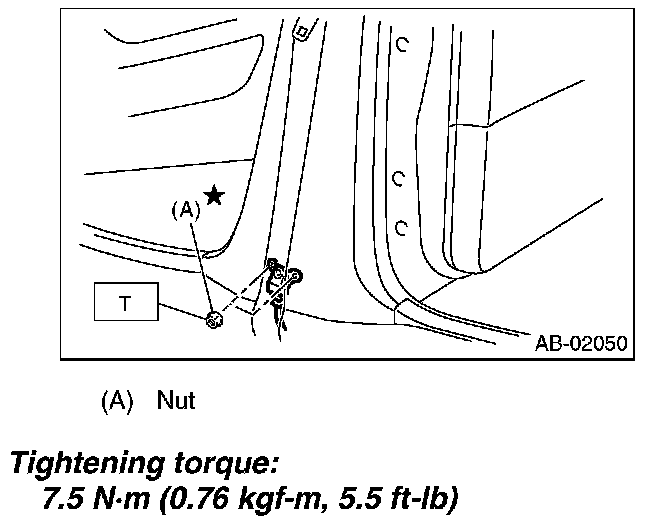

7. SIDE AIRBAG SENSOR

CAUTION: Do not reuse mounting bolts and nuts.

8. CURTAIN AIRBAG SENSOR

CAUTION: Do not reuse mounting bolts and nuts.

9. SATELLITE SAFING SENSOR

CAUTION: Do not reuse mounting bolts and nuts.

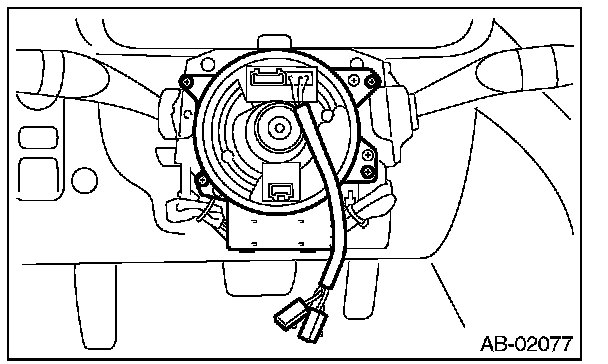

10. STEERING ROLL CONNECTOR

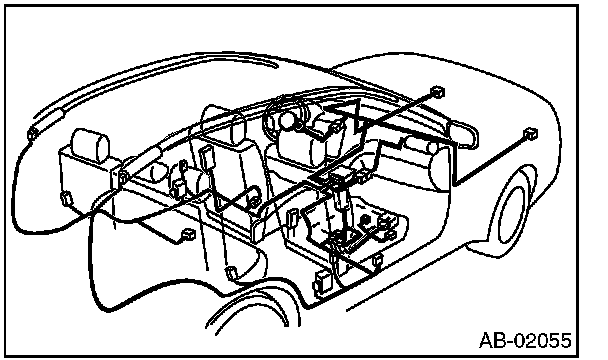

11. AIRBAG HARNESS
