Seat Belt Systems: Tools and Equipment

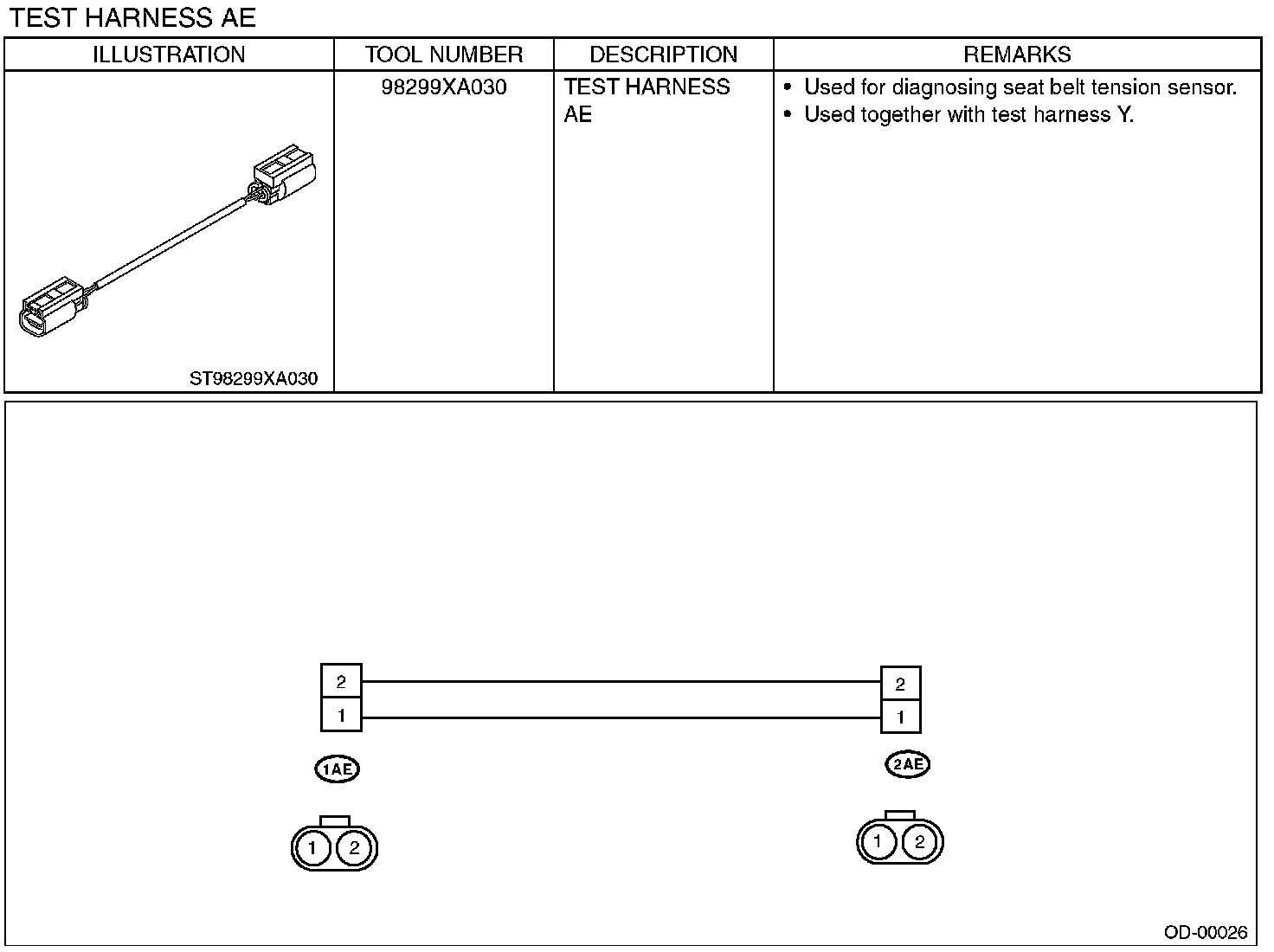

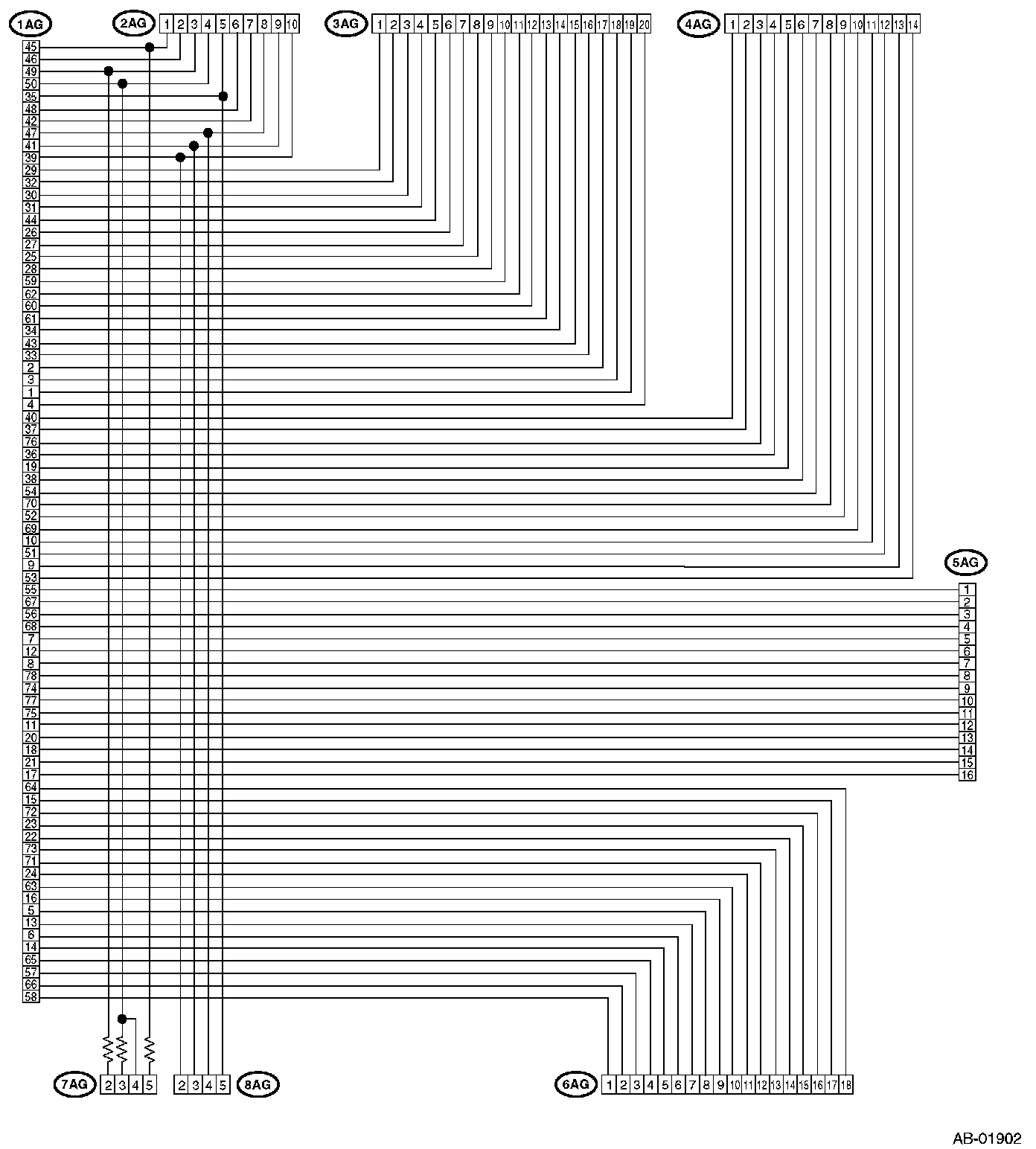

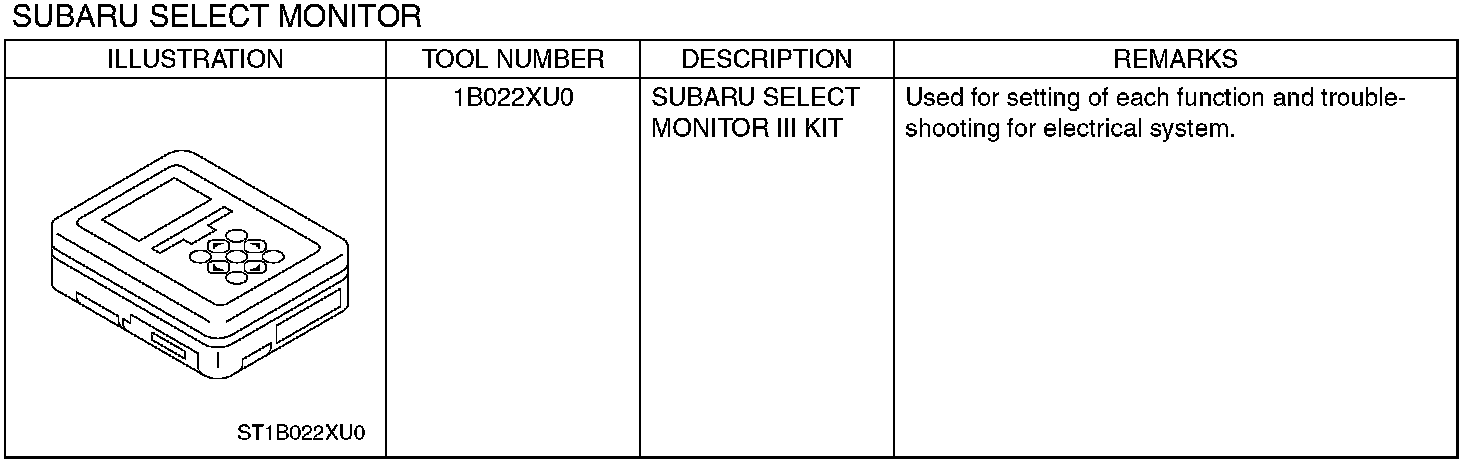

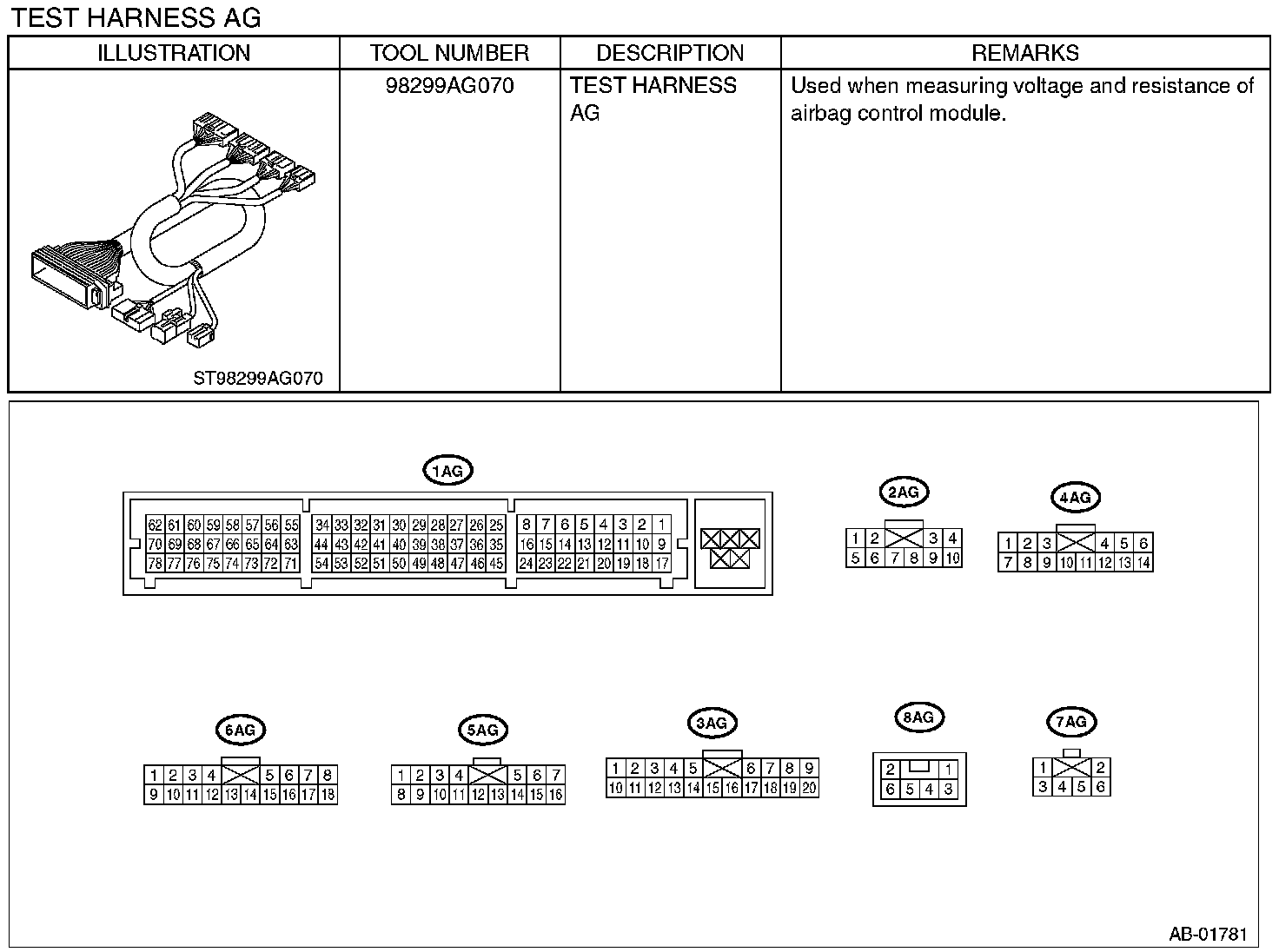

PREPARATION TOOL

1. SPECIAL TOOL
























2. GENERAL TOOL
