Pinout Values and Diagnostic Parameters

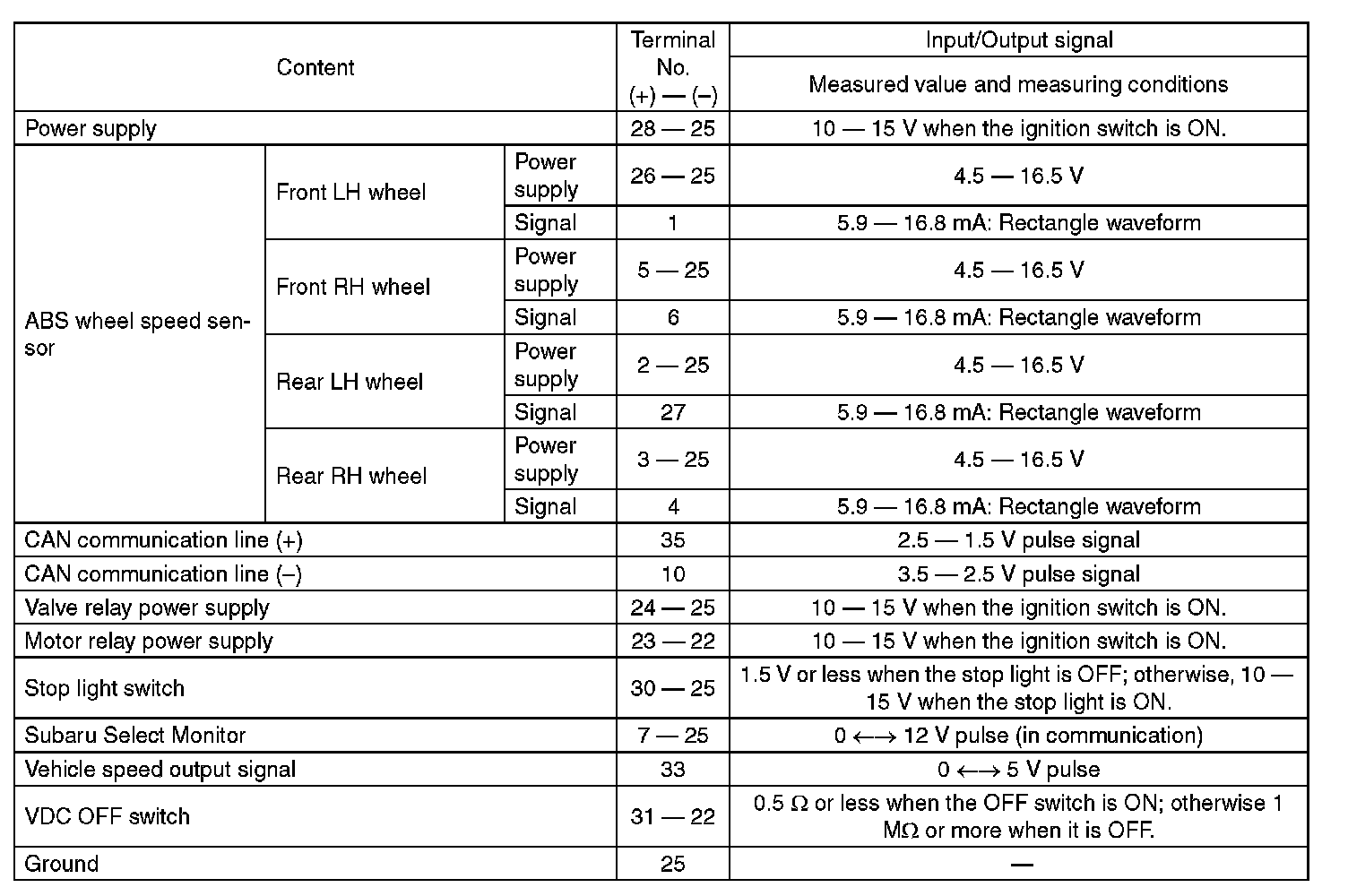

Control Module I/O Signal

ELECTRICAL SPECIFICATION








NOTE:

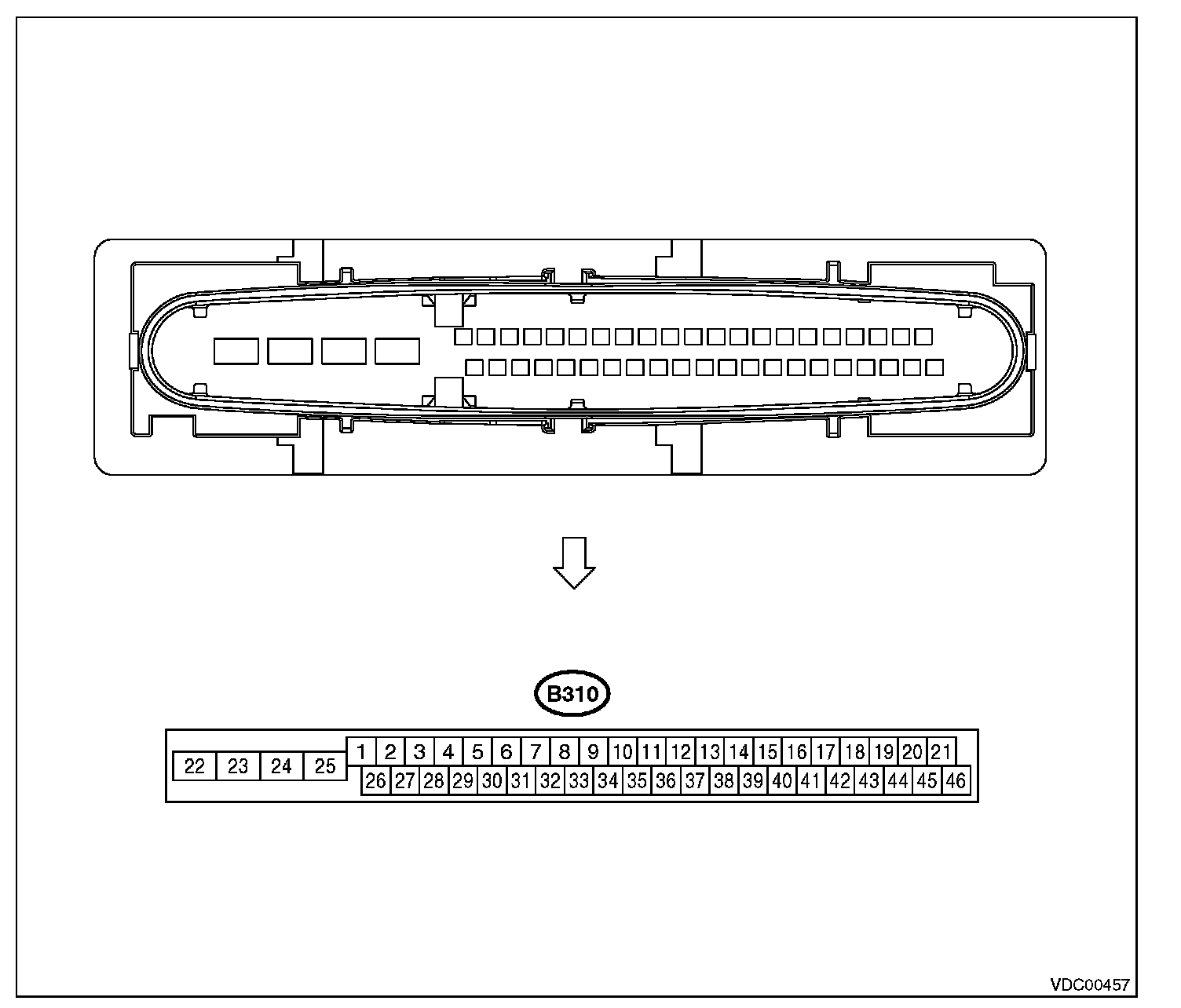

^ Terminal numbers in VDCCM & H/U connector are shown in the figure.
^ When the connector is removed from the VDCCM & H/U, the brake warning light (EBD warning light), ABS warning light, VDC warning light, VDC OFF indicator light, and the hill start assist warning light illuminate.

WIRING DIAGRAM
