Room Light

Room Light

INSPECTION

1. ROOM LIGHT BULB
1. Visually check the bulb for blow out.
2. Check the bulb specification.
3. If NG, replace the bulb with a new part.

2. ROOM LIGHT SWITCH

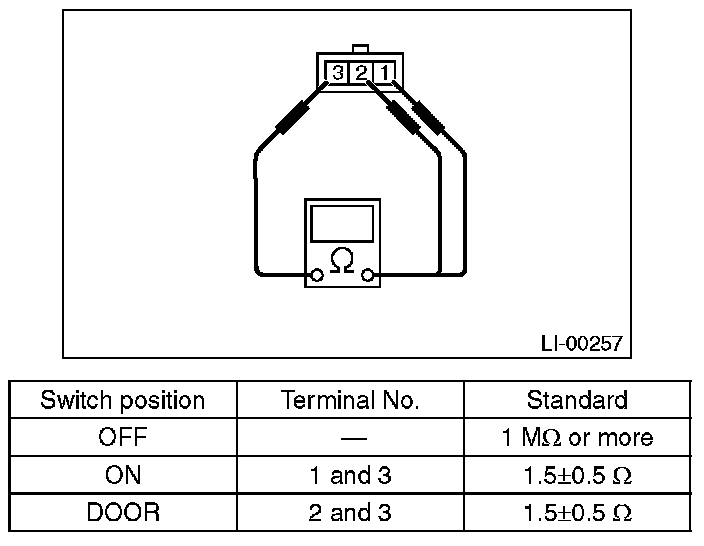

1. Measure the resistance between room light switch terminals.






2. Connect terminal No. 3 to the battery positive terminal and terminal No. 1 and No. 2 to the battery ground terminal, and check room light operation.






3. Replace the room light if faulty.
