System Specifications

SPECIFICATION











NOTE:
The size and air pressure of standard and spare tires are shown on the "Tire inflation pressure" label on the body side behind the driver's door.

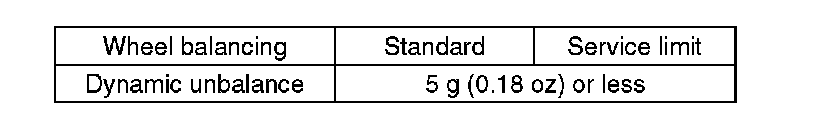

SERVICE DATA

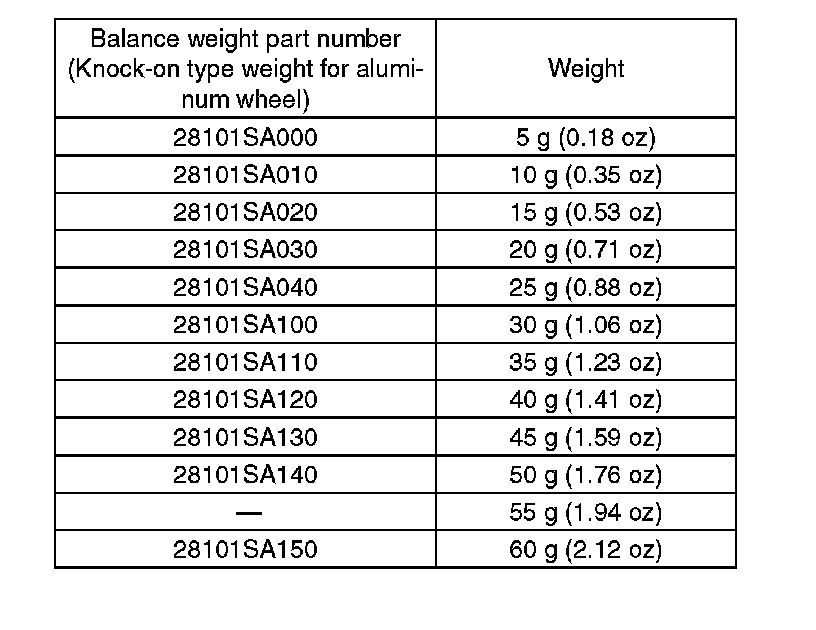

ADJUSTING PARTS
