Exterior Moulding / Trim: Service and Repair

PROTECTOR TAPE


INSTALLATION

Adhere the protector tape to position, follow the procedures below.
1. Open the rear door and moisten around the adhering position.
2. Peel away the backing paper of (a).

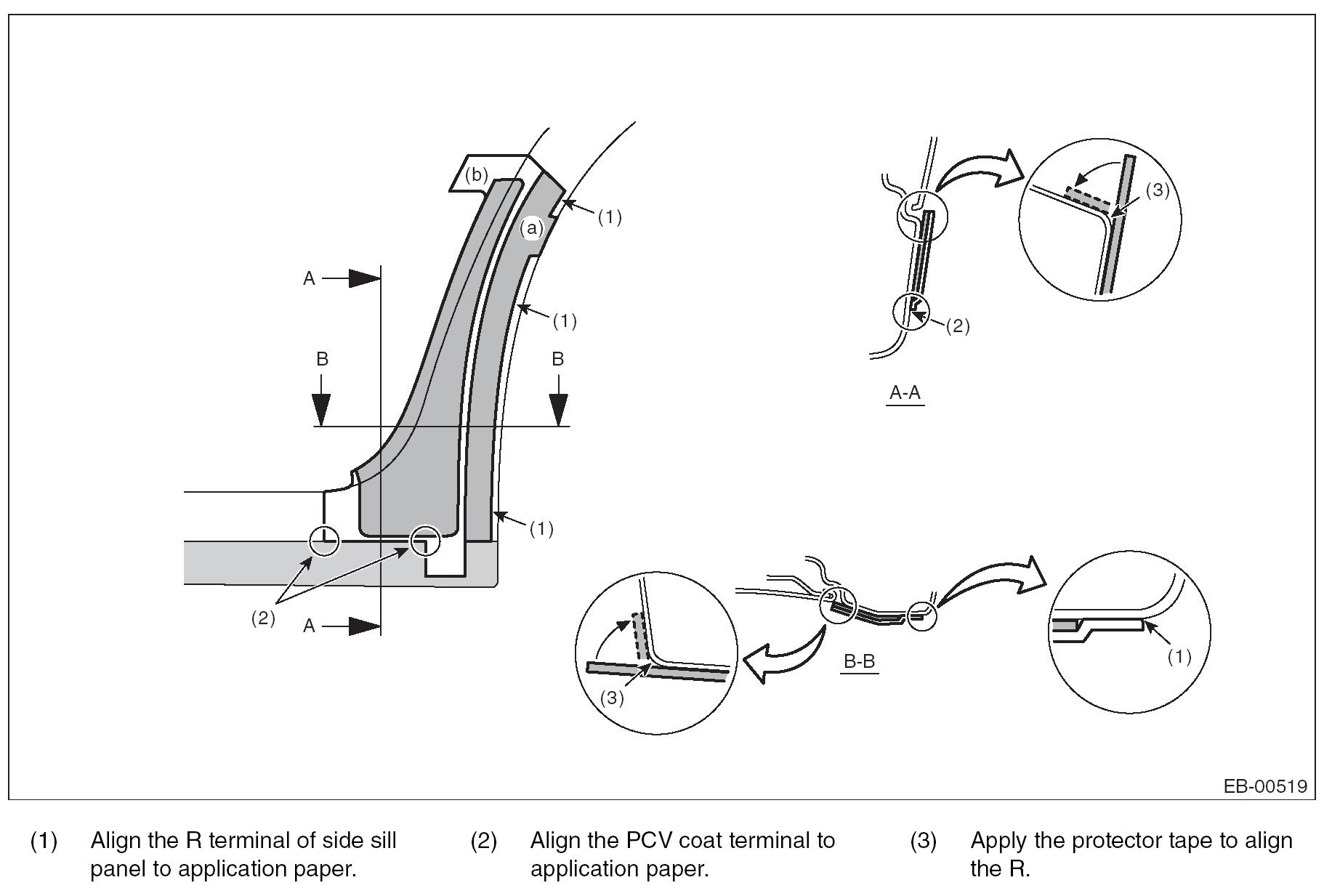

3. Align the application tape to the position shown in the following figure.
4. Peel away the film of (a).
5. Peel away the backing paper of (b) and adhere the protector tape to the vehicle body.
6. Get rid of water and air bubbles in the protector tape and remove the application tape and the film.
