Operation CHARM
: Car repair manuals for everyone.
Home
>>
Subaru
>>
2010
>>
Impreza WRX F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
Exhaust System
Exhaust System

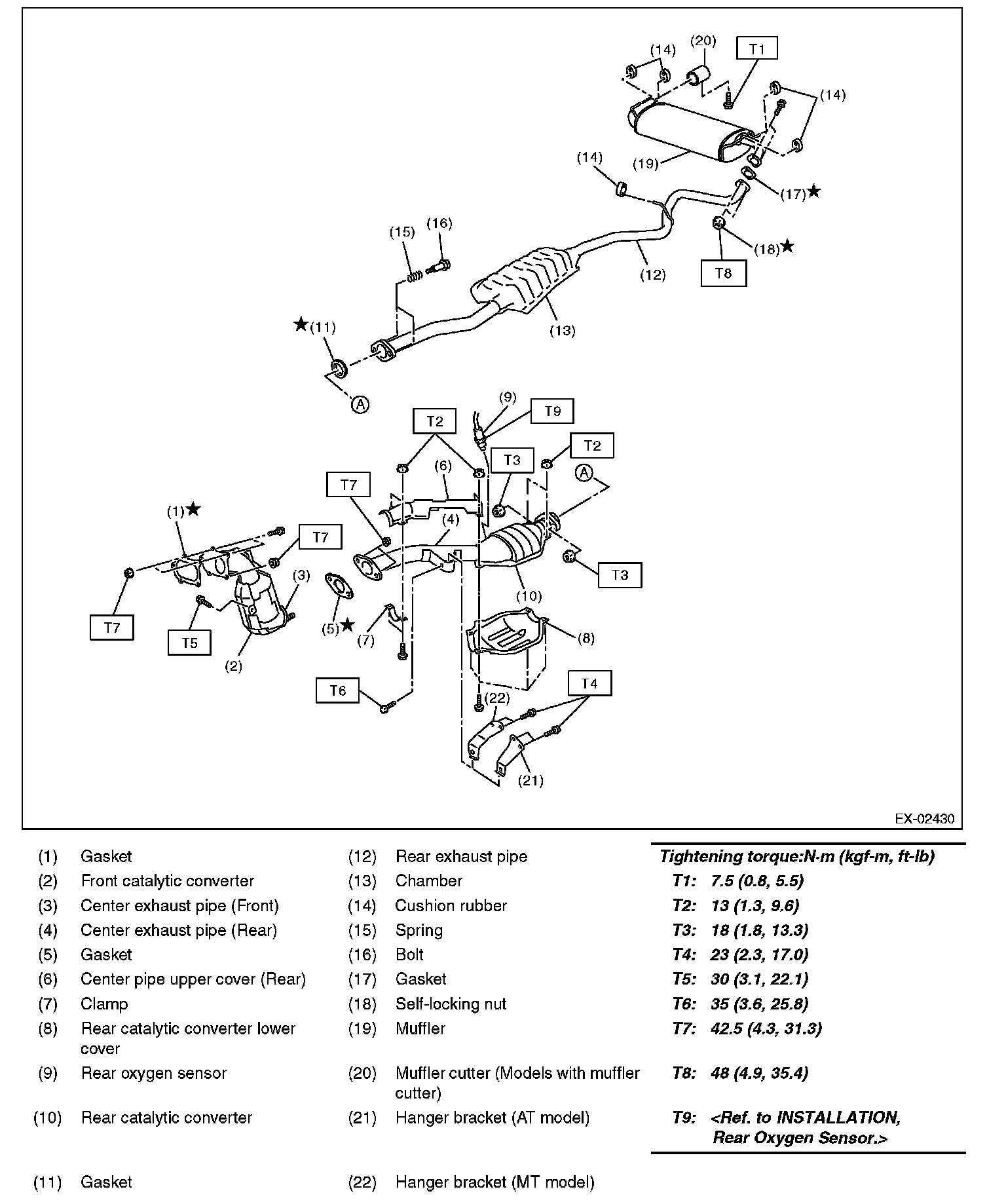

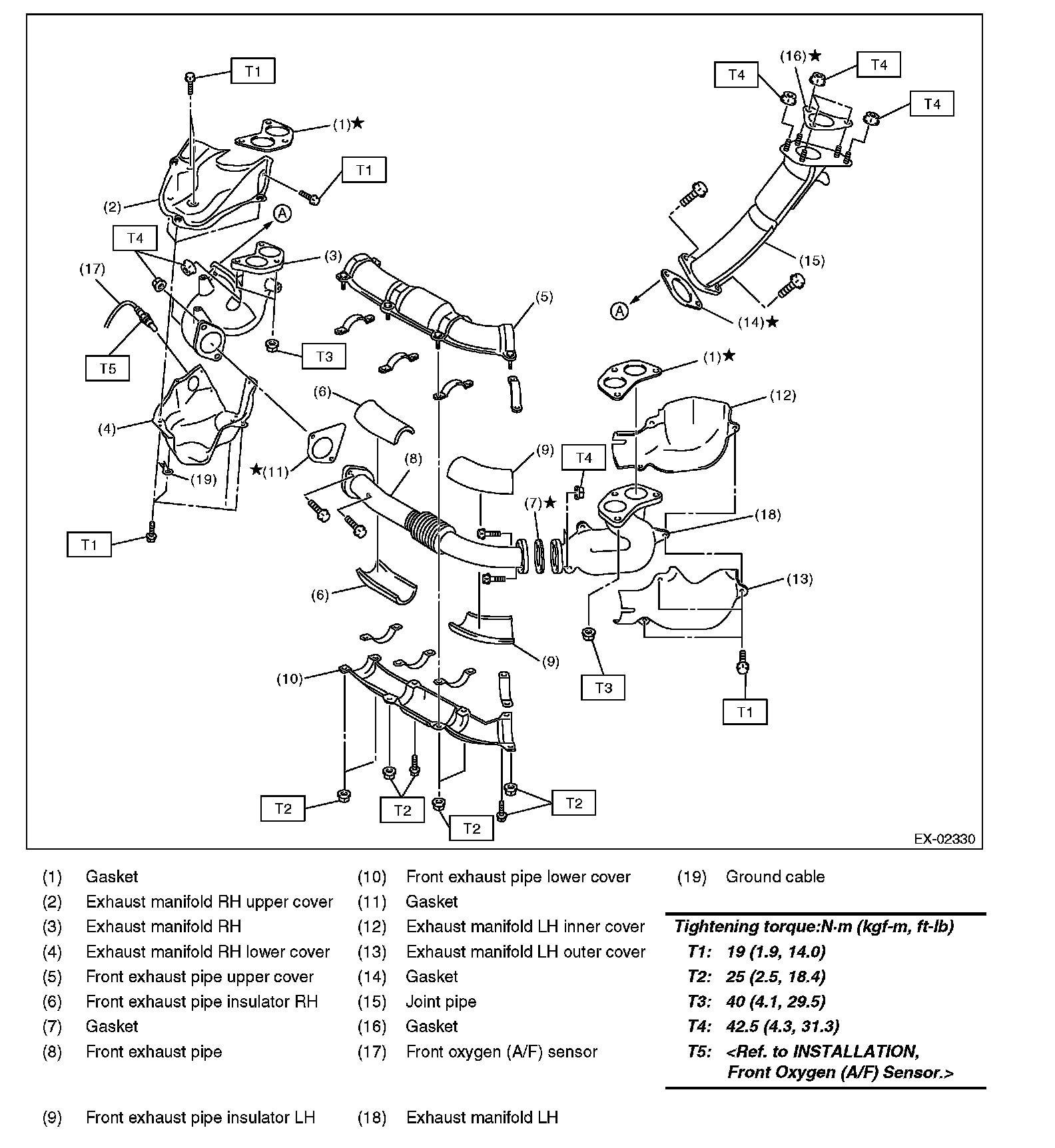

FRONT
EXHAUST PIPE
CENTER AND REAR
EXHAUST PIPE
, AND
MUFFLER
4 DOOR MODEL

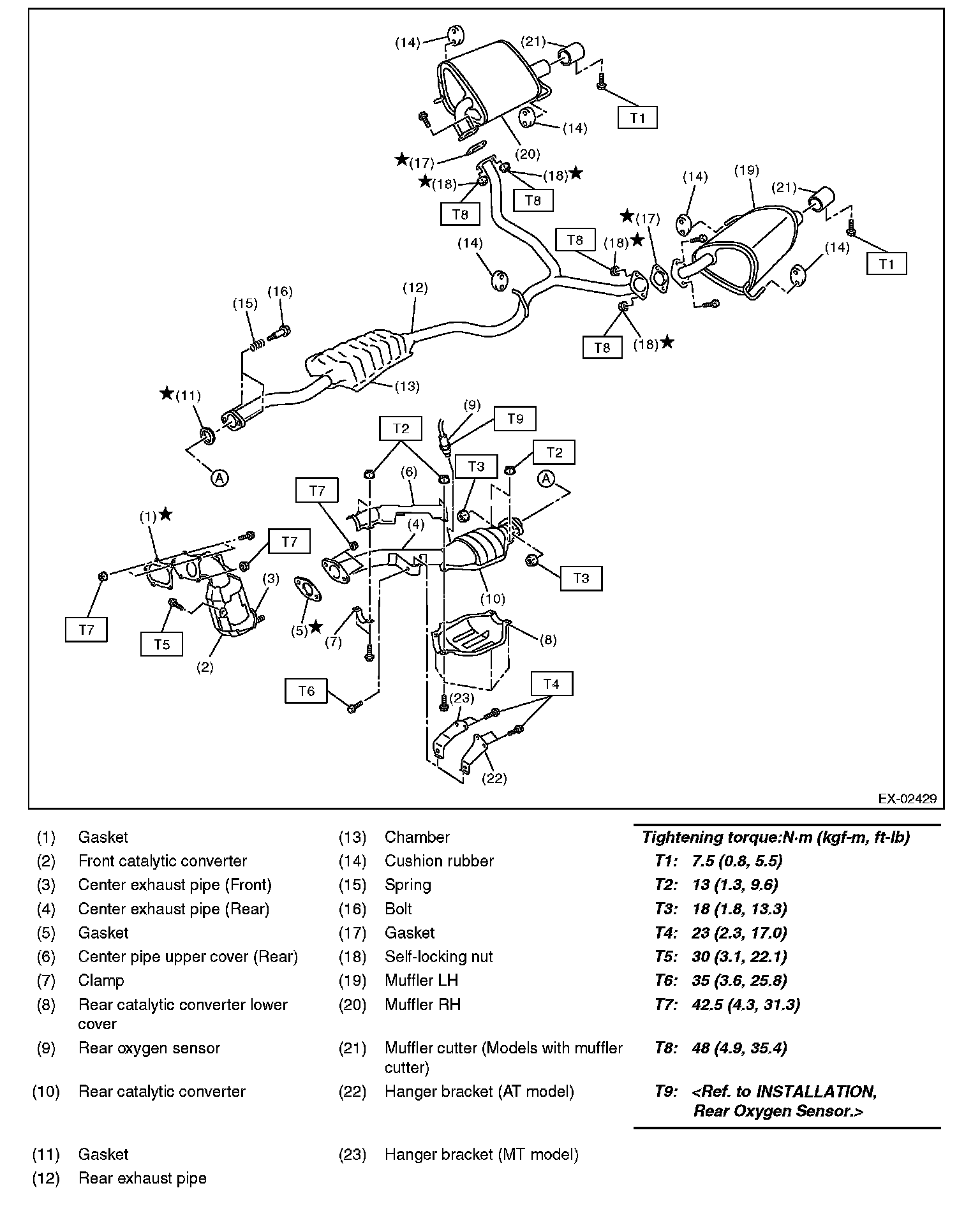

5 DOOR MODEL
