License Plate Lamp: Service and Repair

License Plate Light

REMOVAL

1. 4 DOOR MODEL
1. Disconnect the ground cable from battery.

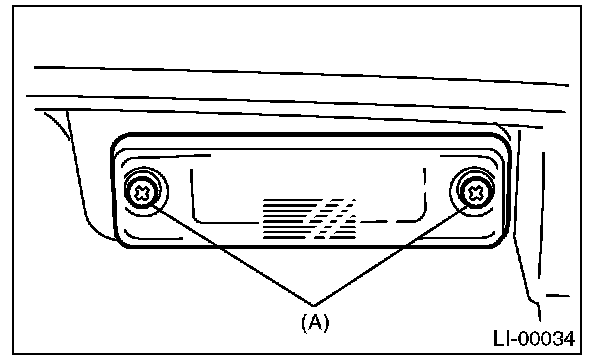

2. Remove the license plate light mounting screw (A) and then remove the lens.






3. Remove the bulb.

2. 5 DOOR MODEL
1. Disconnect the ground cable from battery.
2. Remove the license plate light while pushing it to the left and pulling it.






3. Remove the bulb.

INSTALLATION

Install in the reverse order of removal.
