Locations
>>
Connector Locations
>>
E2-E80 & T1-T13 & T3-AT4
E2-E80 & T1-T13 & T3-AT4
Engine Wiring Harness and Transmission Cord

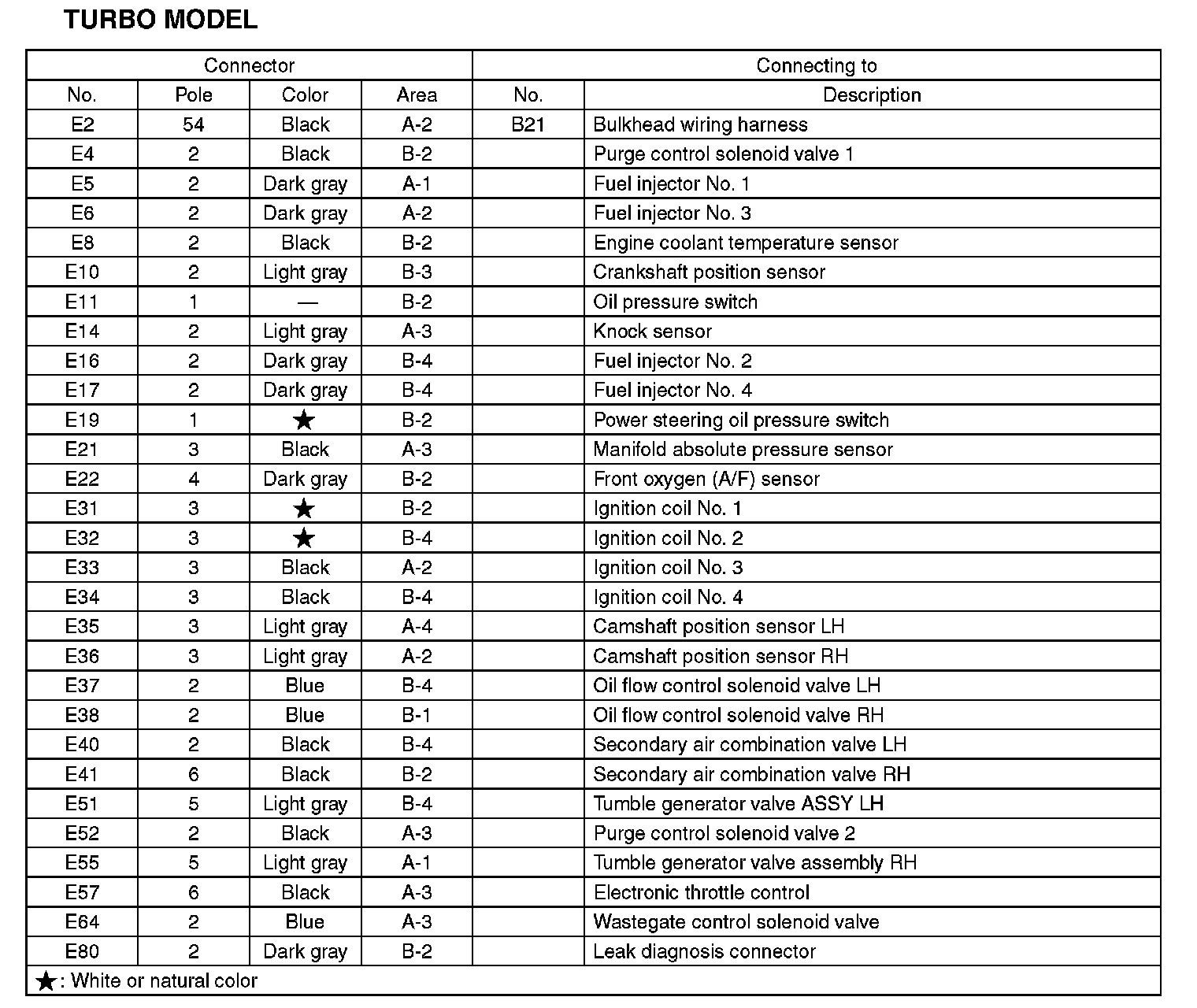

E2-E80:

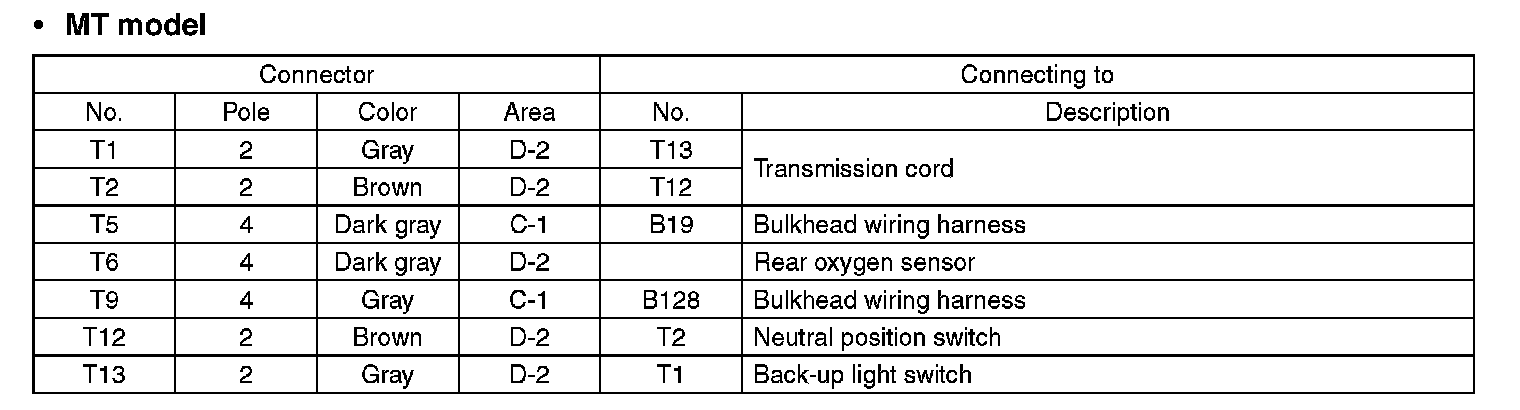

MT MODEL
T1-T13:

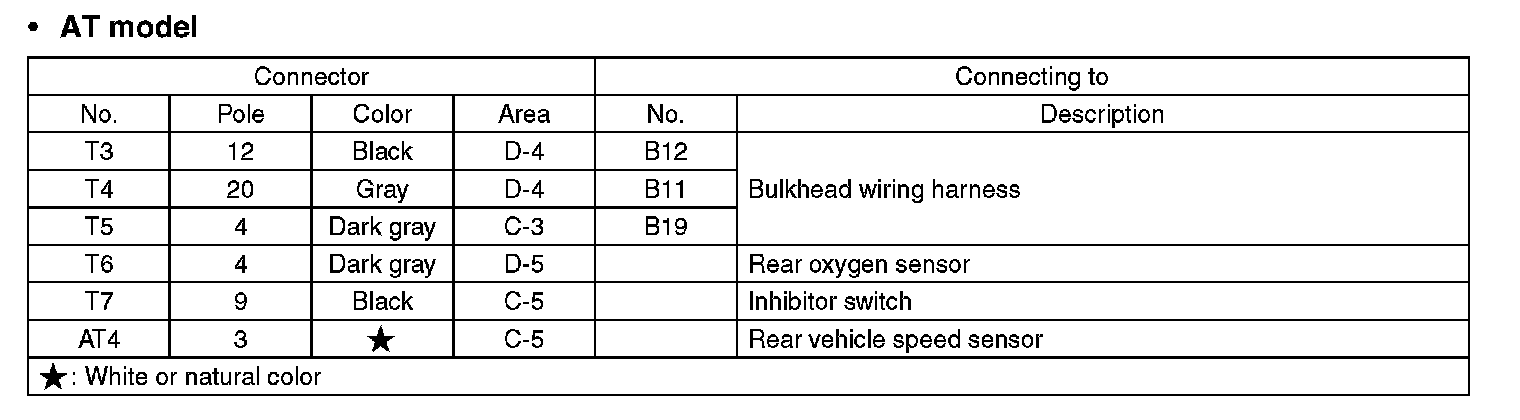

AT MODEL
T3-AT4:
Area View:
