Air Bag Systems: Specifications

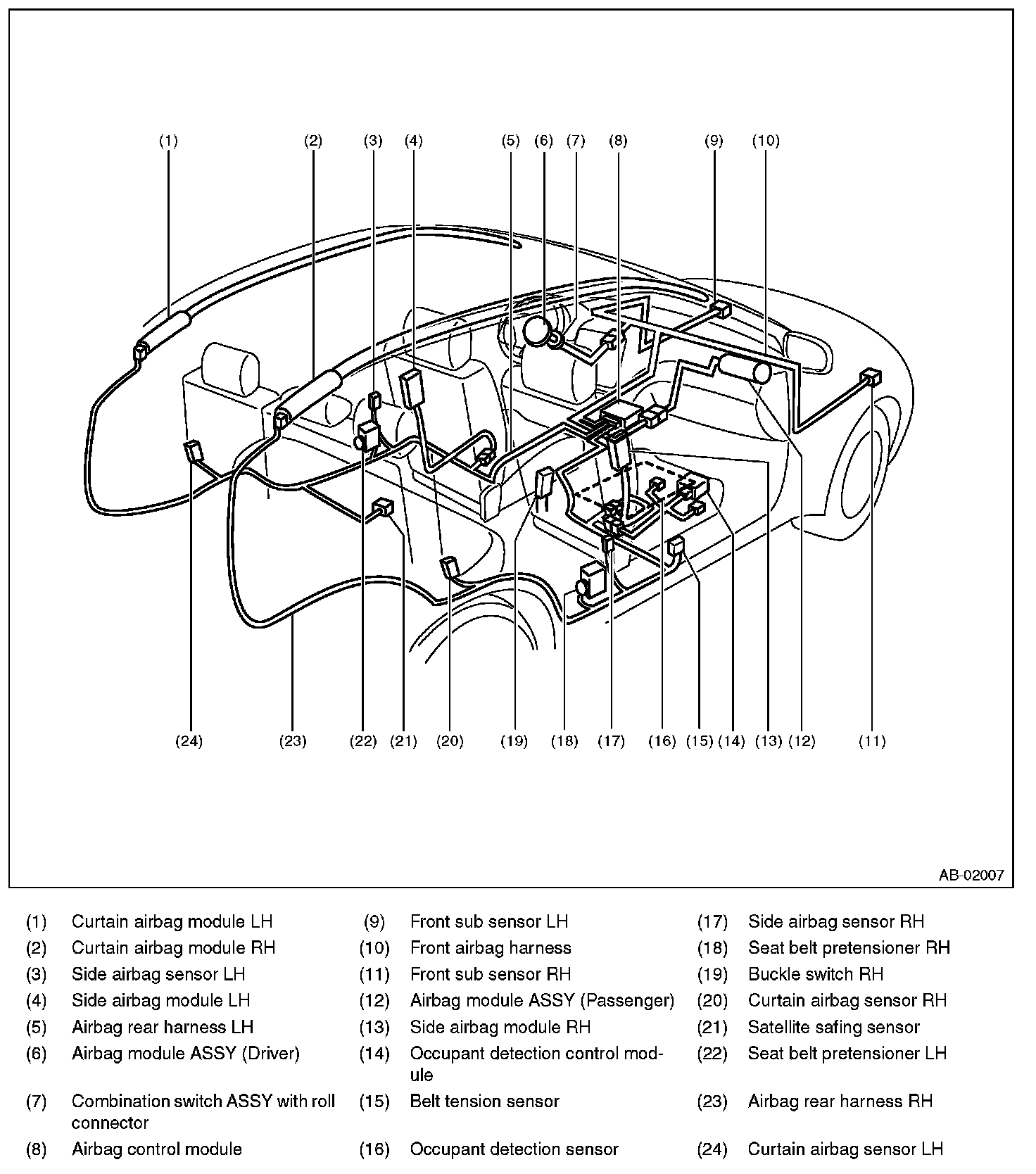

General DescriptionCOMPONENT
1. AIRBAG CONTROL MODULE
2. PASSENGER'S AIRBAG MODULE

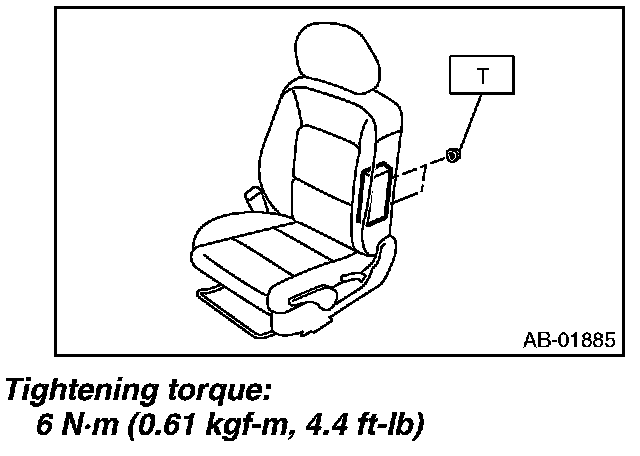

3. SIDE AIRBAG MODULE
4. CURTAIN AIRBAG MODULE
- 5 DOOR MODEL
- 4 DOOR MODEL

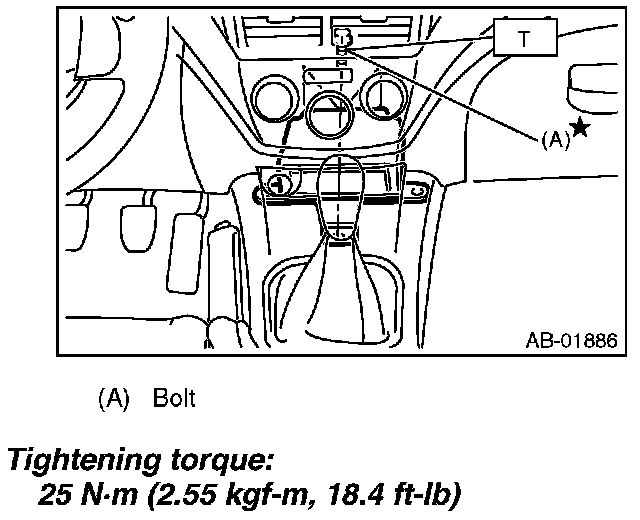

5. AIRBAG CONTROL MODULE
CAUTION: Do not reuse mounting bolts and nuts.
6. FRONT SUB SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
7. SIDE AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.

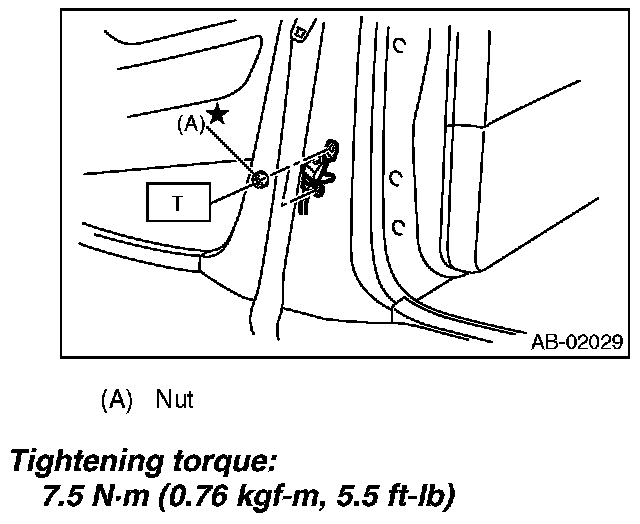

8. CURTAIN AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
9. SATELLITE SAFING SENSOR
CAUTION: Do not reuse mounting bolts and nuts.

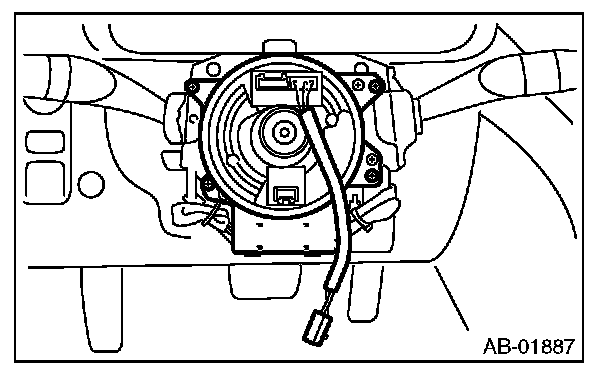

10. STEERING ROLL CONNECTOR
11. AIRBAG HARNESS
