E2-E130 & T1-T2
E2-E130 & T1-T2
Engine Wiring Harness and Transmission Cord
E2-E130:

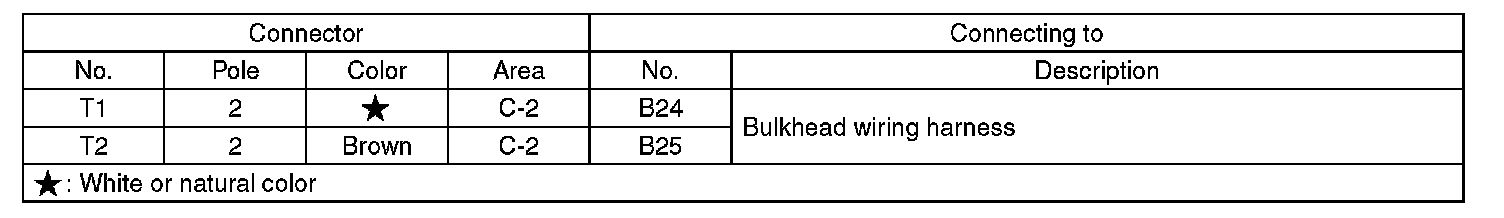

T1-T2:

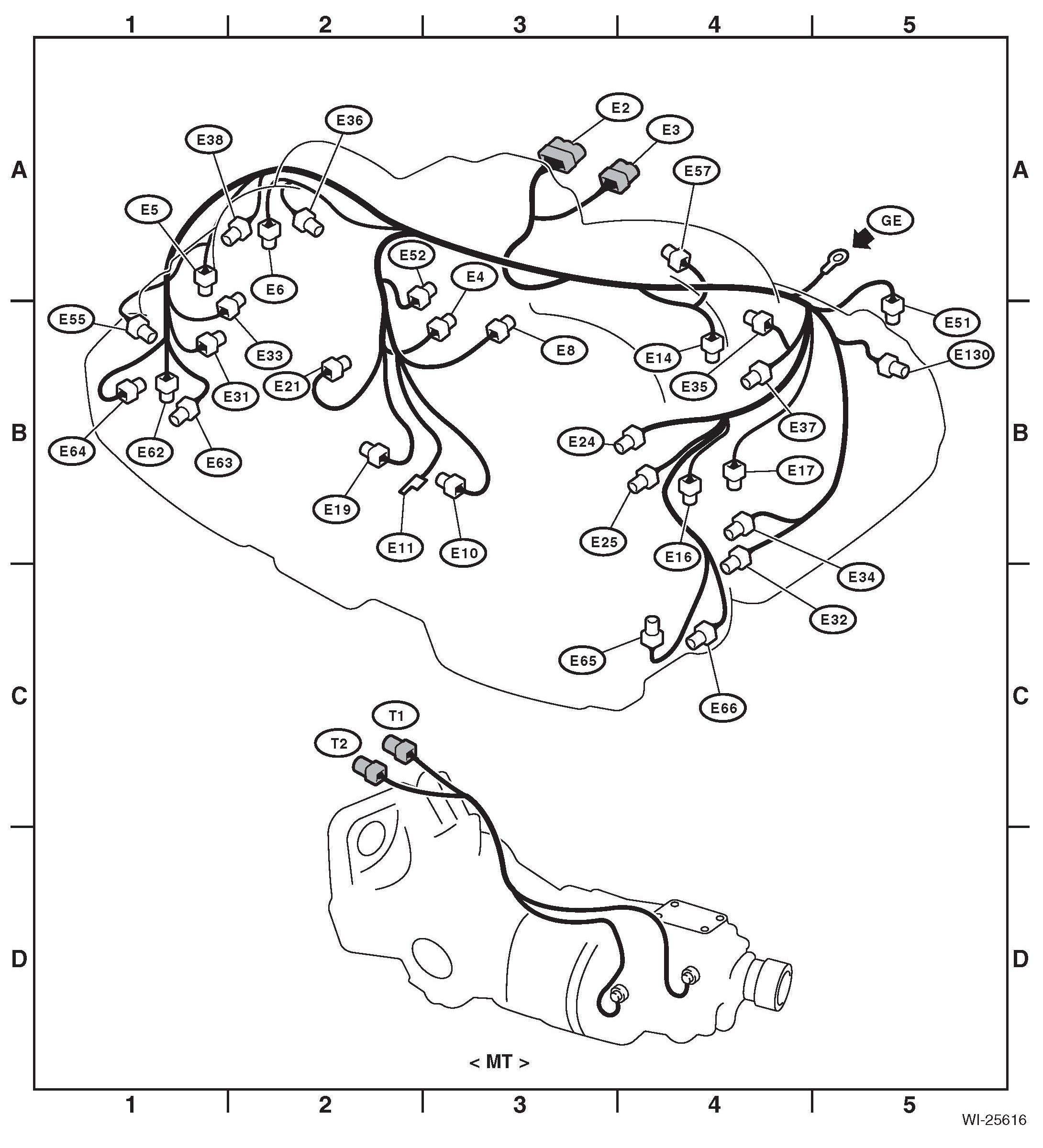

Area View:
