Exhaust System: Diagrams
COMPONENTFRONT EXHAUST PIPE
Front Exhaust Pipe:
CENTER AND REAR EXHAUST PIPE, AND MUFFLER

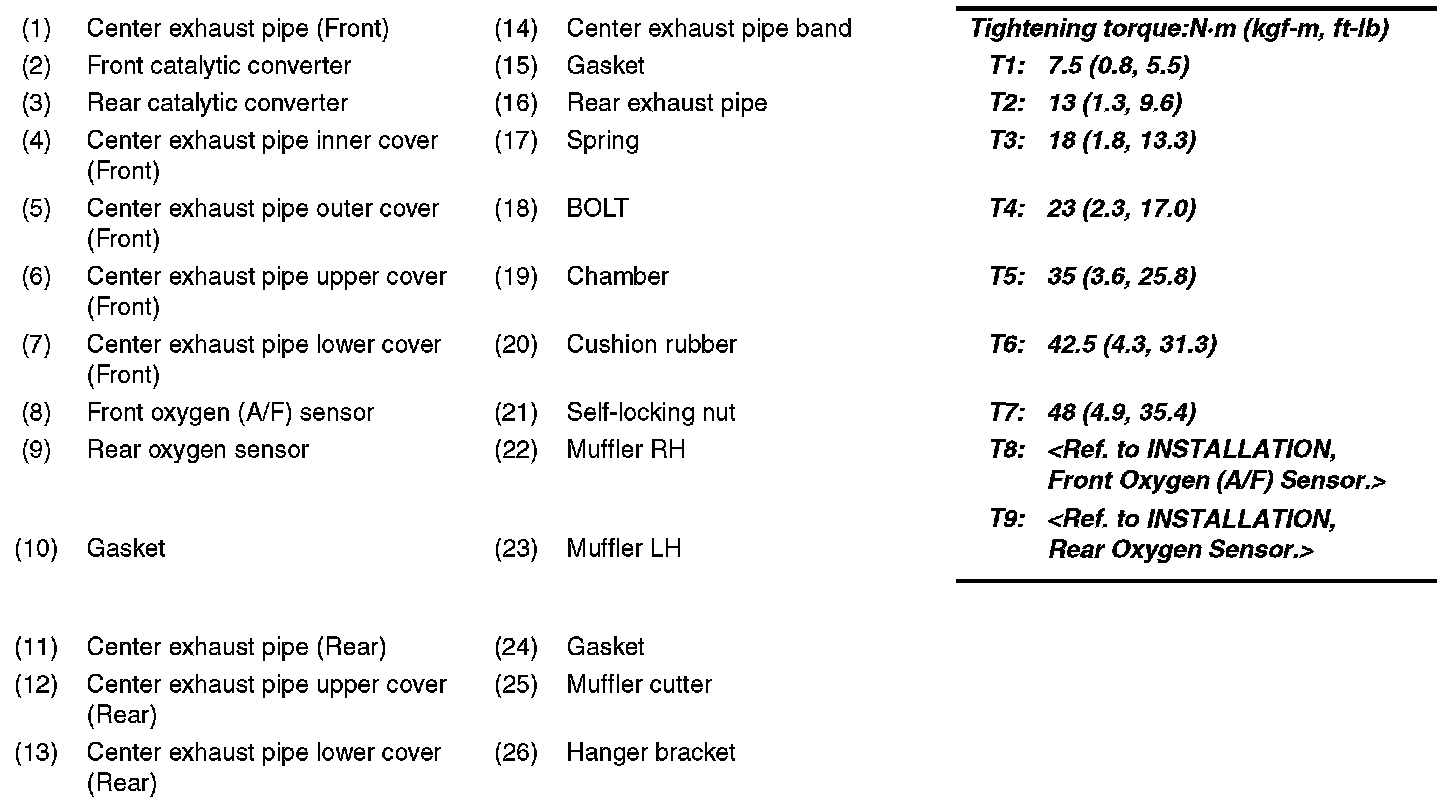

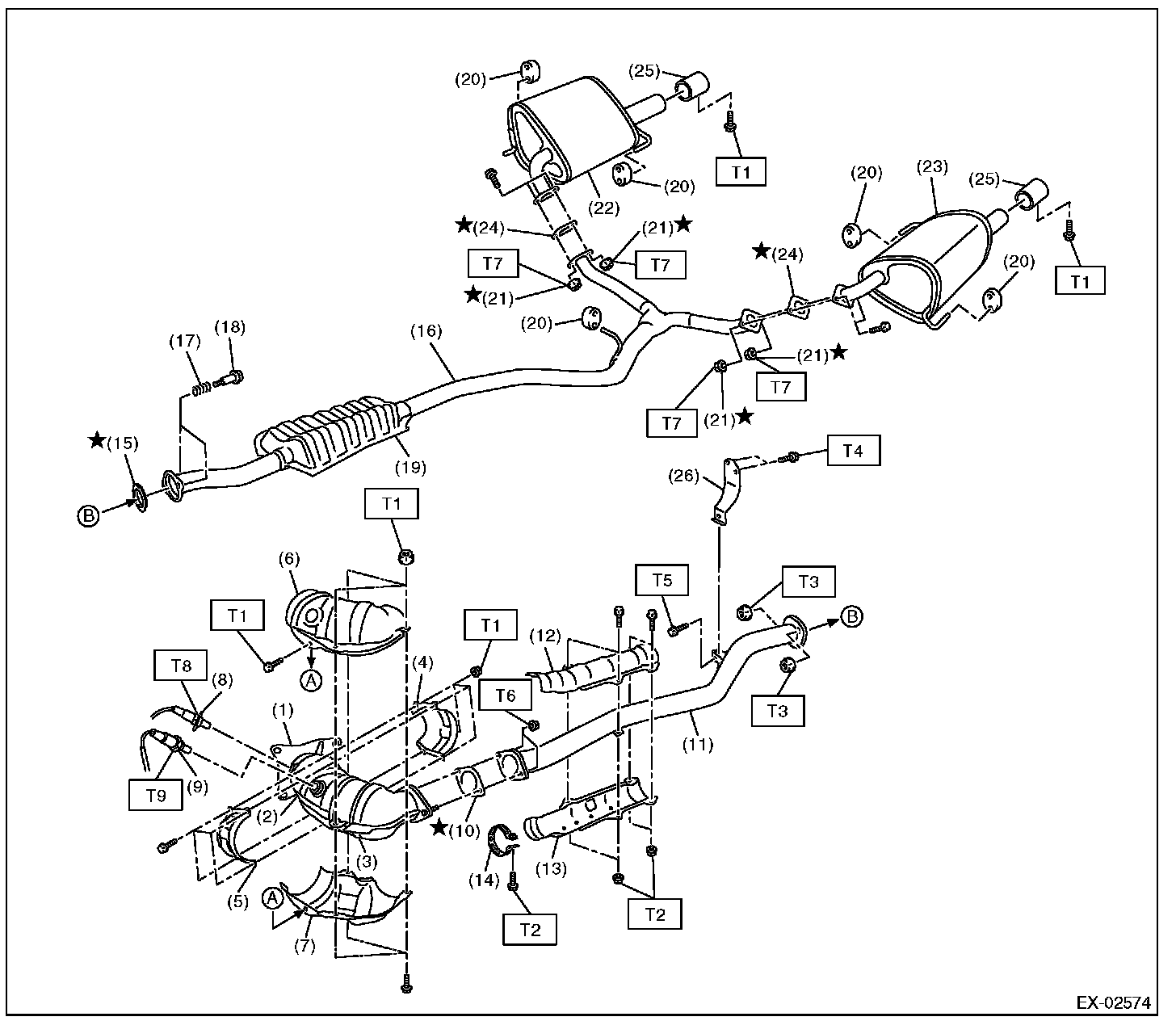

Center and Rear Exhaust Pipe, and Muffler (Part 1):
Center and Rear Exhaust Pipe, and Muffler (Part 2):

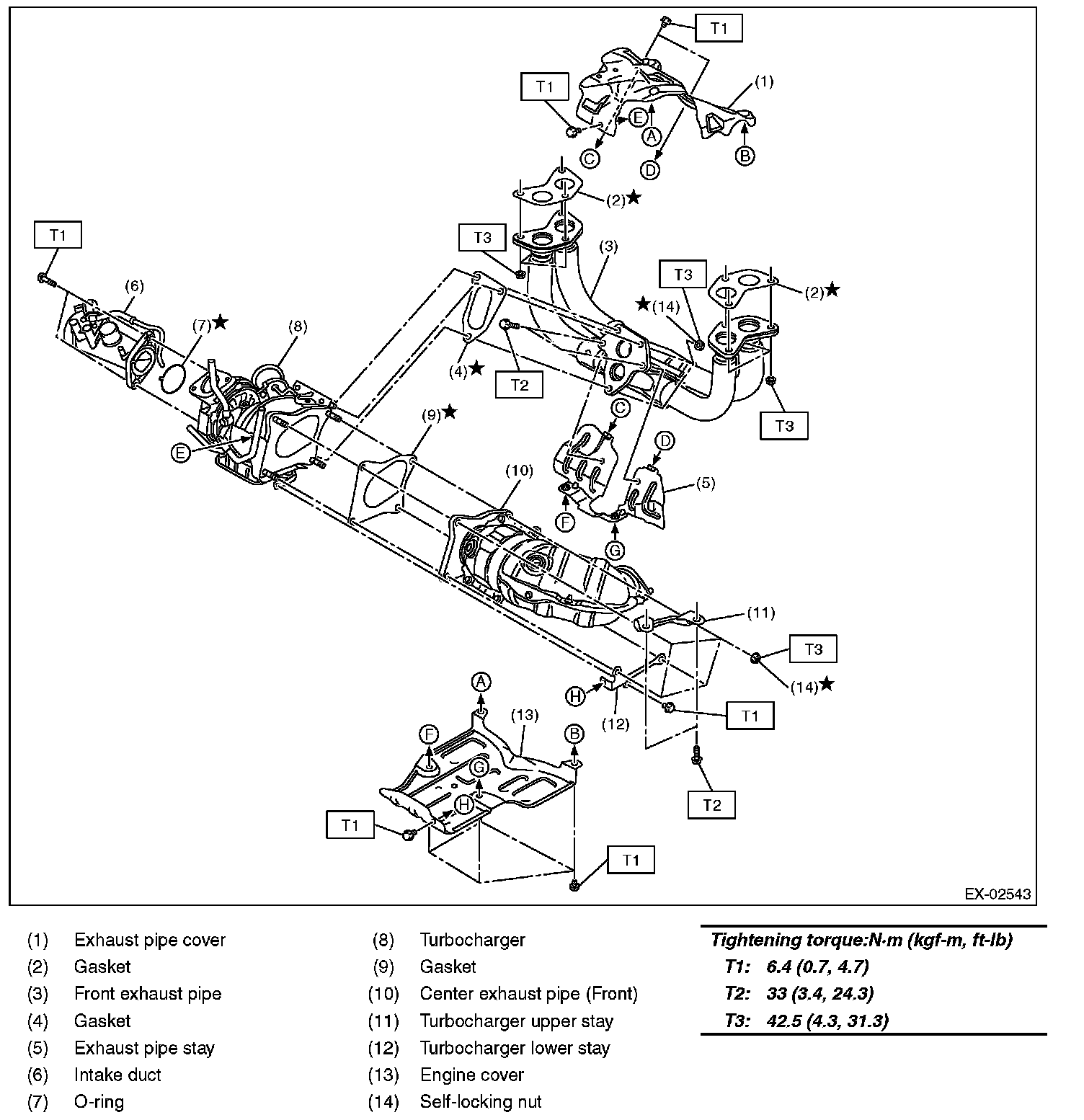

FRONT EXHAUST PIPE
CENTER AND REAR EXHAUST PIPE, AND MUFFLER
