R16-R357 & D34-D139 & AB31-AB34
Rear Wiring Harness and Rear Gate Cord

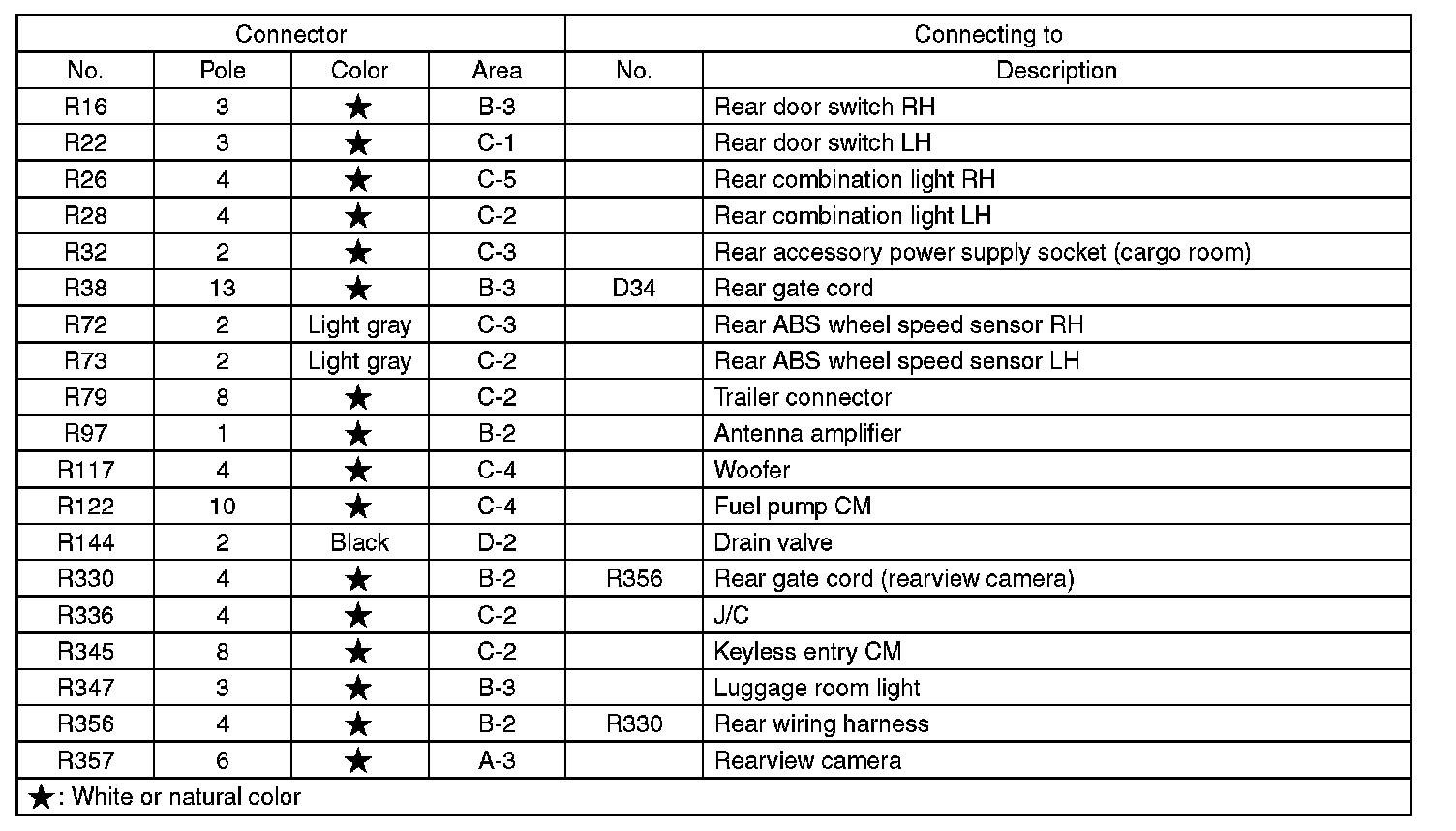

R16-R357:

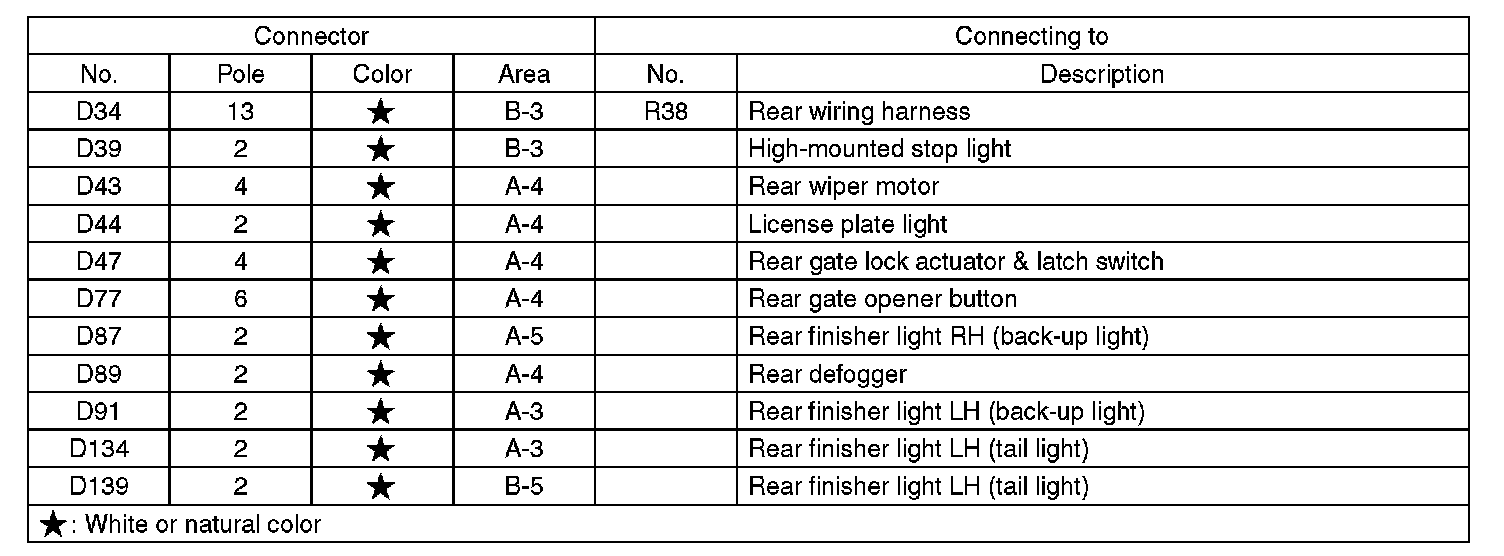

D34-D139:
AB31-AB34:
Area View:
